Description

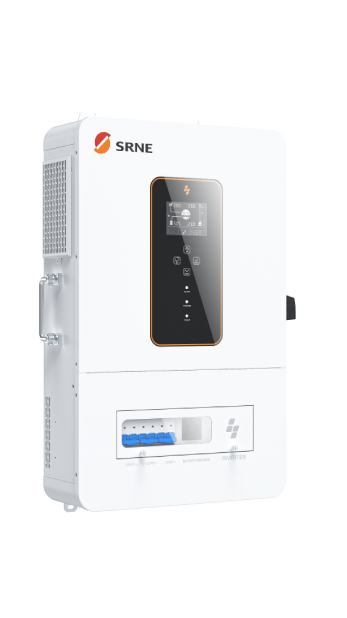

The SRNE ABP48100U200-H is a 10kW 48V off-grid solar storage inverter designed for residential split-phase and parallel applications, combining dual MPPT solar charging, battery management, and pure sine wave AC output in a compact indoor unit.
Key Features
- Dual High-Efficiency MPPT Input Two independent MPPT channels deliver up to 99.9% tracking efficiency with a maximum combined PV array input of 11,000W and open-circuit voltage up to 500Vdc per channel.
- Parallel Scalability up to 60kW Supports up to 6 units in parallel for single-phase, split-phase, or three-phase output configurations, enabling scalable residential and light commercial system designs.
- Time-of-Use Charging & Discharging Built-in time-slot scheduling allows charging and discharging to be optimized around peak and valley electricity pricing for maximum cost savings.
- Self-Use and Batteryless Output Modes Supports self-consumption mode with configurable energy source priority, and a without-battery anti-backflow mode for grid-supplemented solar-only operation.
- Lithium Battery BMS Communication Communicates with Li-ion battery BMS via RS485 or CAN protocol for precise charge/discharge control, improved battery longevity, and enhanced system safety.
The ABP48100U200-H delivers 10,000W rated output with a maximum peak power of 20,000VA, supporting 120Vac single-phase or 240Vac split-phase output at 50/60Hz with a 6HP motor start capability. Maximum hybrid charging current is 200A, with mains and generator charging capped at 120A, and the unit supports 48V Li-ion, Lead-Acid, and user-defined battery types across a 40–60Vdc voltage range.
The energy-saving mode minimizes no-load losses during periods of low consumption, and independent circuit breaker protection is provided for load, mains, generator, and battery circuits. Mains and generator input voltage range is 90–275Vac, covering a wide range of grid and generator supply conditions.
Housed in an IP20 indoor enclosure with internal fan cooling, the ABP48100U200-H measures 723 x 448 x 150mm and operates across a temperature range of -10°C to +55°C with derating above 45°C. Mobile app monitoring and computer-based commissioning via USB are both supported as standard.
Technical Specifications
| Specification | Details |
|---|---|
| Model | ABP48100U200-H |
| Rated Output Power | 10,000W |
| Max Peak Power | 20,000 VA |
| Rated Output Voltage | 120Vac (Single-phase) / 240Vac (Split-phase) |
| Load Capacity of Motors | 6HP |
| Rated AC Frequency | 50/60Hz |
| Parallel Capacity | 1–6 Units |
| Battery Type | Li-ion / Lead-Acid / User Defined |
| Rated Battery Voltage | 48Vdc |
| Battery Voltage Range | 40–60Vdc |
| Max MPPT Charging Current | 200A |
| Max Mains/Generator Charging Current | 120A |
| Max Hybrid Charging Current | 200A |
| Number of MPPT Trackers | 2 |
| Max PV Array Power | 5,500W + 5,500W |
| Max Input Current per MPPT | 22A |
| Max Voltage of Open Circuit | 500Vdc + 500Vdc |
| Mains/Generator Input Voltage Range | 90–275Vac |
| Frequency Range | 50/60Hz |
| Bypass Overload Current | 63A |
| Protection Degree | IP20 — Indoor Only |
| Operating Temperature Range | -10°C to +55°C (>45°C derated) |
| Cooling Method | Internal Fan |
| Noise | <60dB |
| Dimensions (W x H x D) | 723 x 448 x 150mm |
| Weight | 61.7 lbs (28 kg)s |
