Solis 16kW Hybrid Inverter | Split-Phase 3 MPPT | S6-EH2P16K03

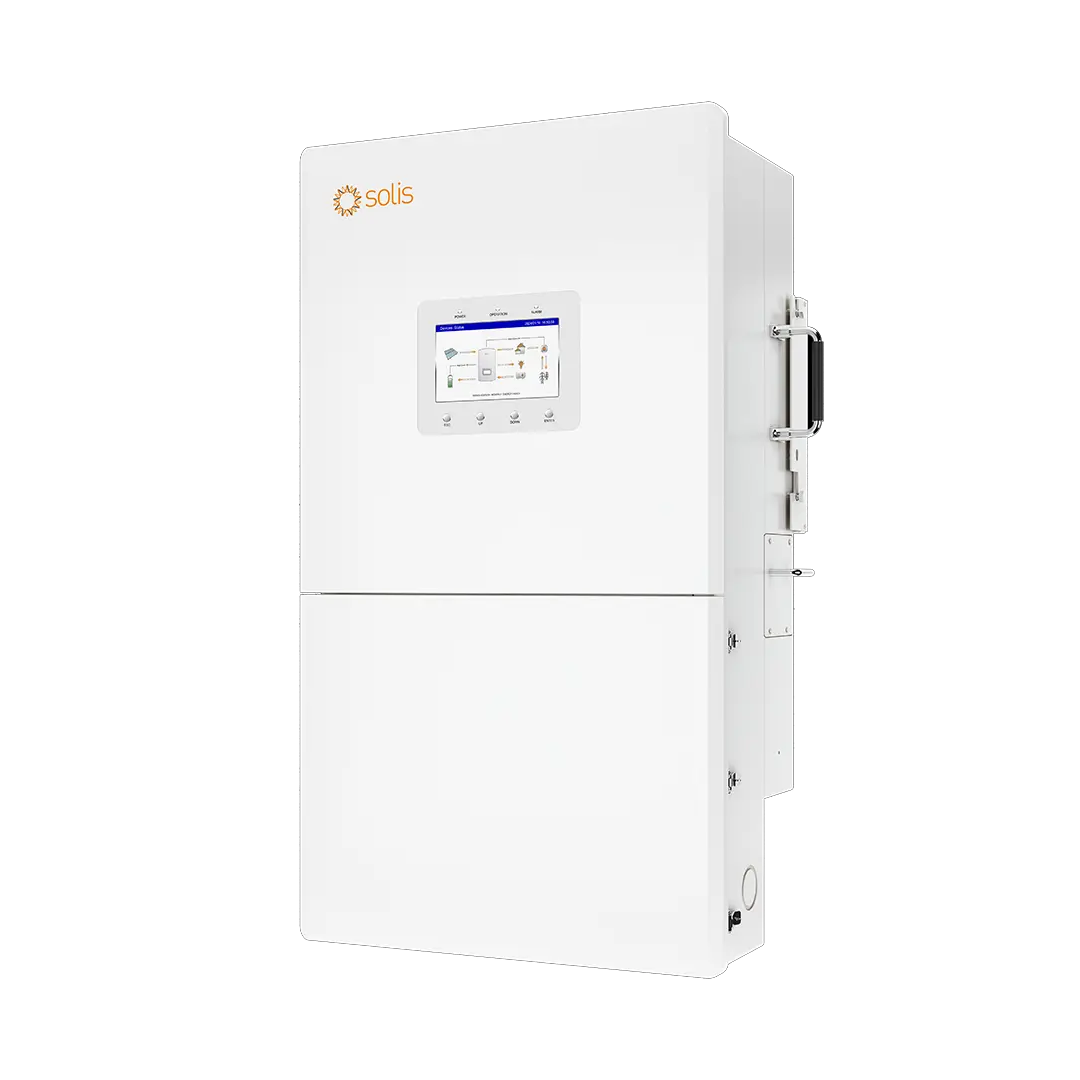

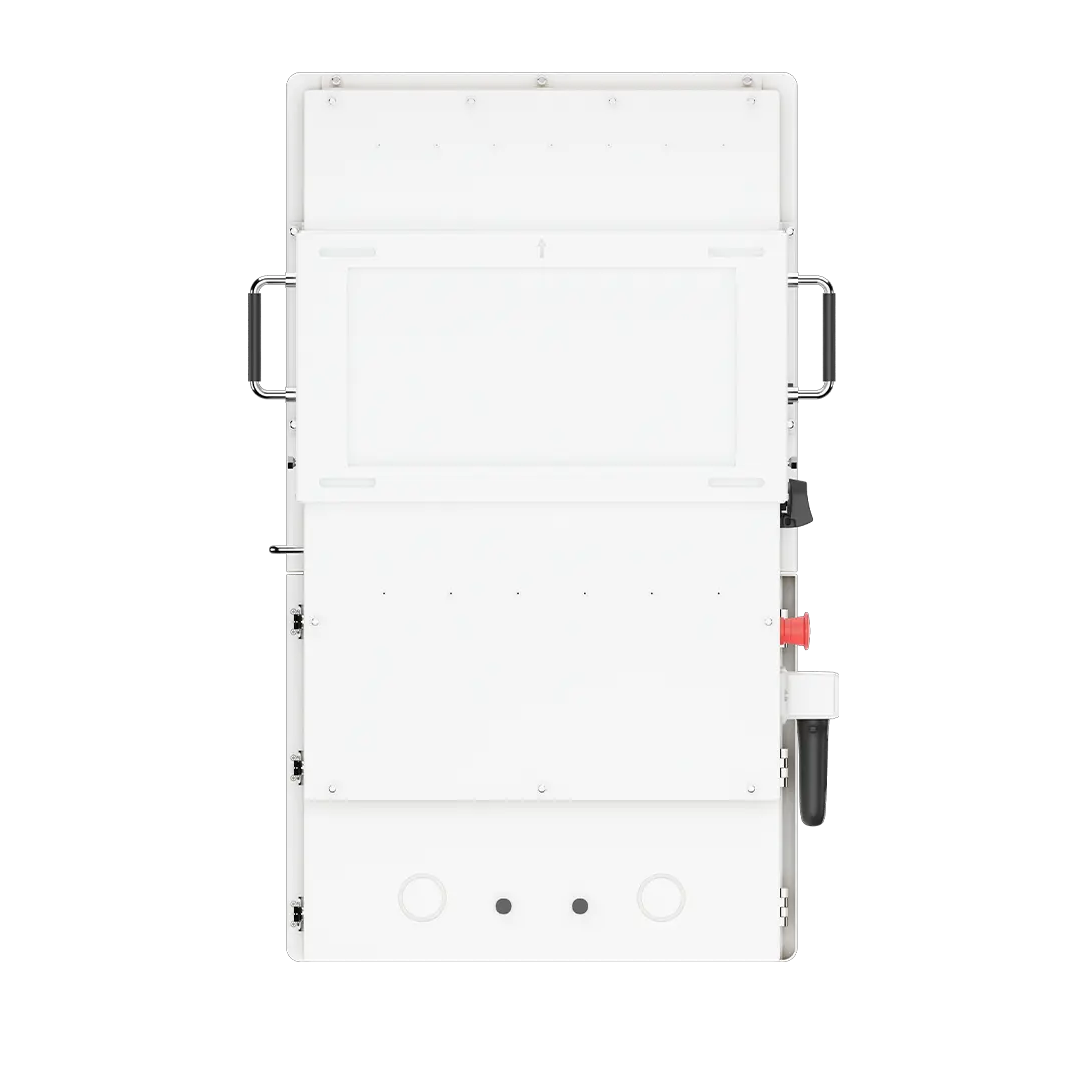

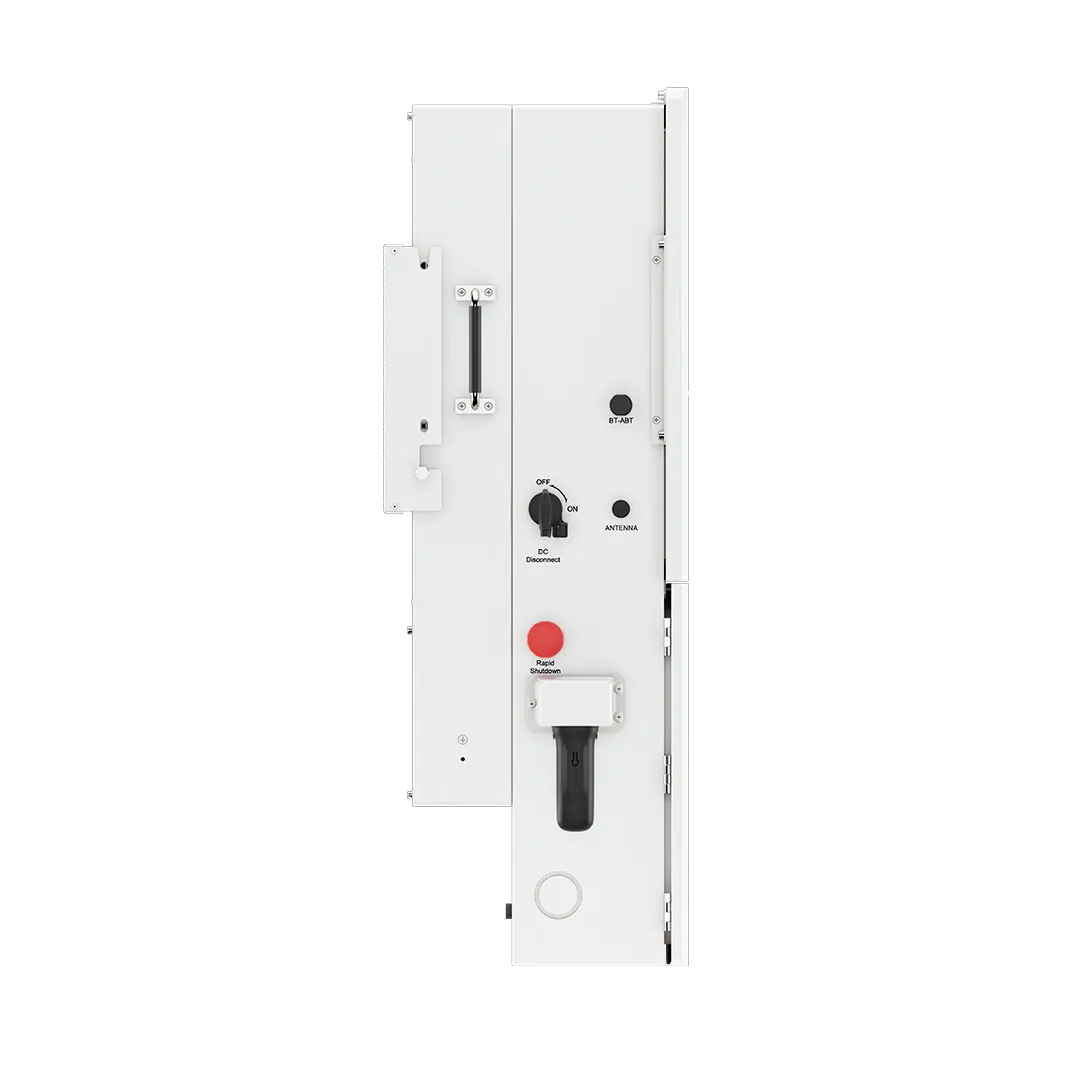

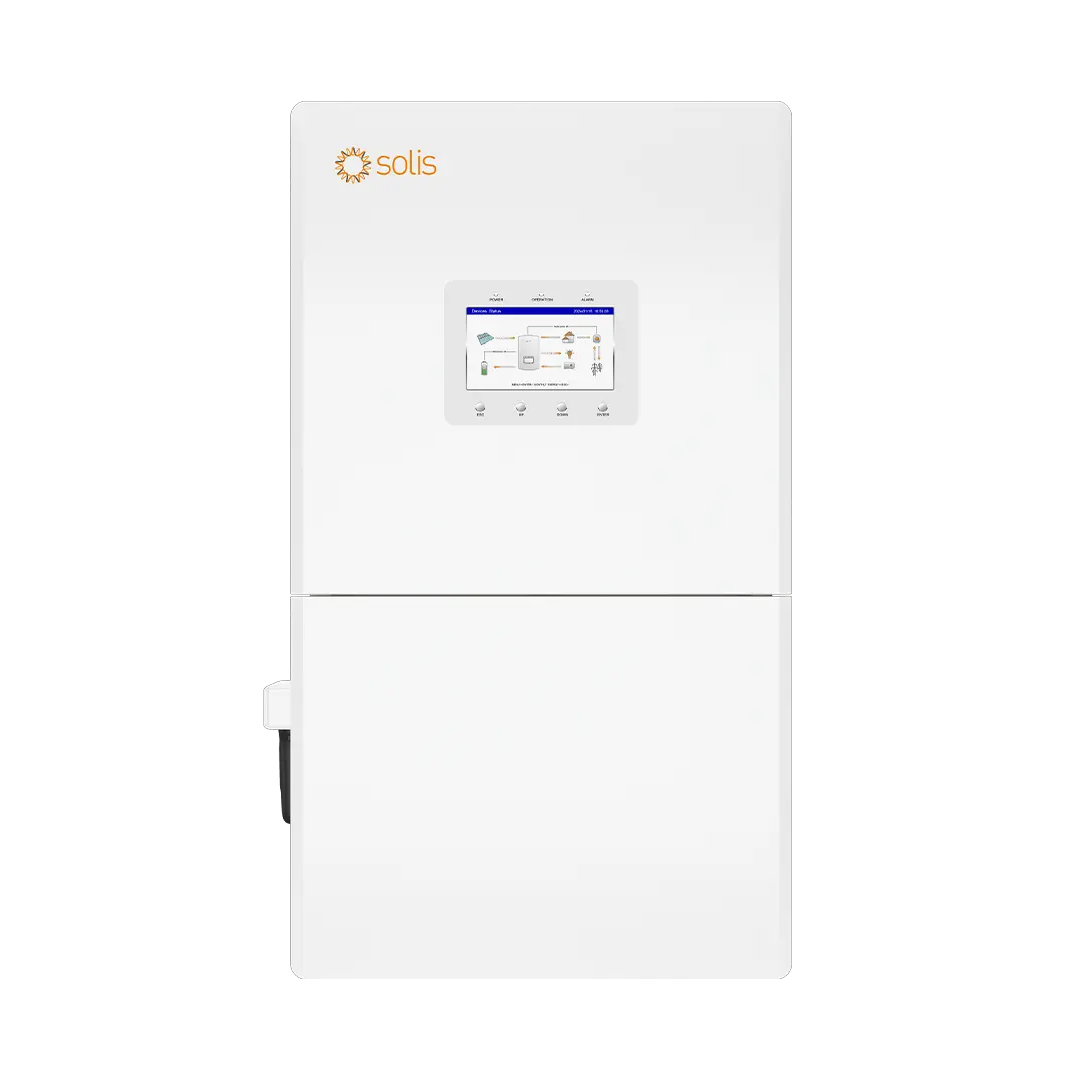

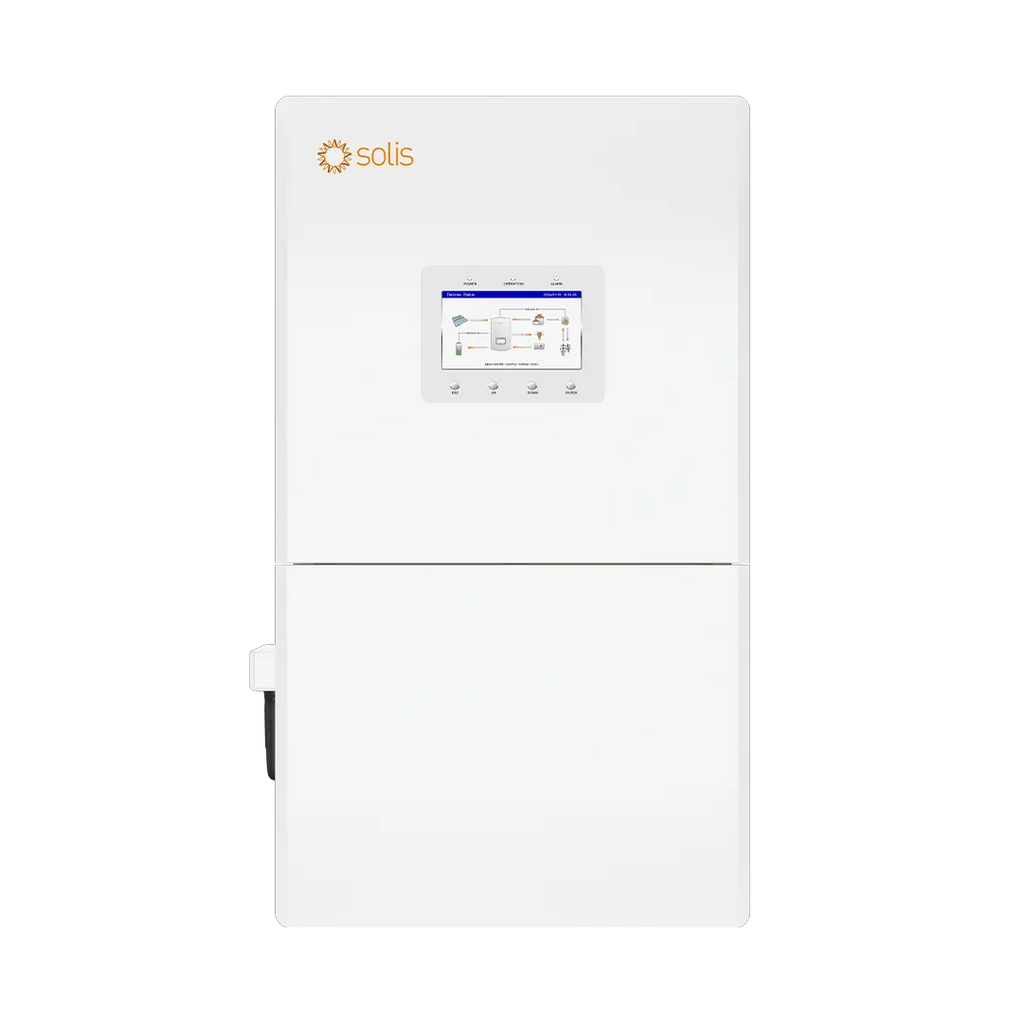

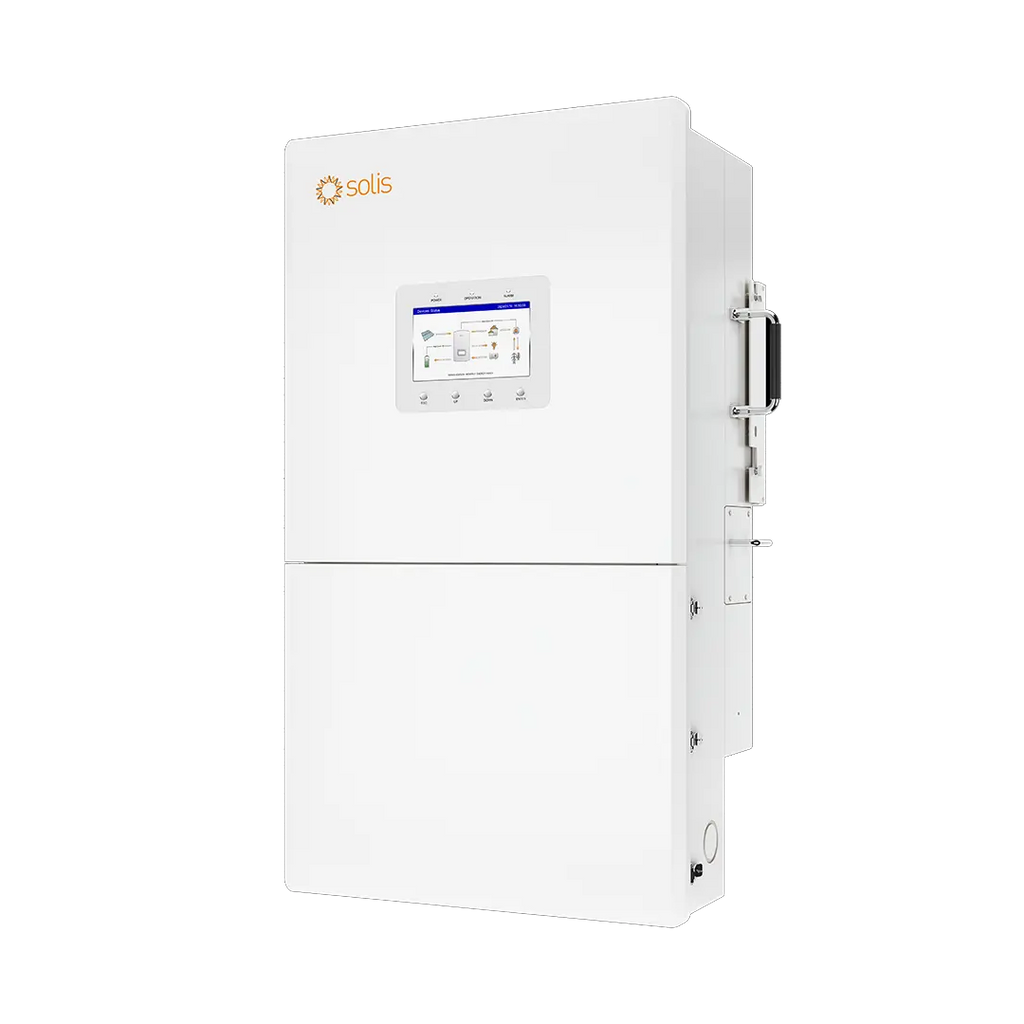

The Solis S6-EH2P16K03-SV-YD-L-US Hybrid Inverter is a 16kW low-voltage hybrid inverter engineered for high-performance residential energy storage systems. Designed for flexibility and efficiency, this split-phase inverter features 3 independent MPPTs to optimize solar production across multiple roof planes, varying orientations, and partially shaded arrays.
Built to support on-grid, off-grid, and backup applications, this Solis inverter is compatible with 48V lithium and lead-acid batteries, making it a versatile solution for homeowners and installers seeking reliable solar-plus-storage performance. AFCI protection, SolisCloud monitoring, and an IP66-rated enclosure, the S6-EH2P16K03-SV-YD-L-US delivers advanced control, safety, and outdoor durability for modern residential solar systems.
Prior to purchasing this inverter, please review the battery compatibility document.
Key Features
- 16kW AC output power for high-capacity residential energy systems
- 3 MPPTs for optimized solar harvesting across multiple array layouts
- Compatible with 48V lithium and lead-acid batteries
- Supports grid-tied, off-grid, and backup modes
- SolisCloud monitoring for remote system tracking, firmware updates, and alerts
- Up to 40A PV input current per MPPT for high-current module support
- AFCI protection for enhanced electrical safety
- IP66-rated enclosure for outdoor wall-mount installations
Technical Specifications
- Brand: Solis
- Model: S6-EH2P16K03-SV-YD-L-US
- Product Type: Low-Voltage Hybrid Inverter
- AC Output Power: 16kW
- Battery Voltage Range: 40V–60V
- Battery Compatibility: 48V lithium and lead-acid batteries
- Max PV Input Power: 25.6kW
- MPPTs / Strings per MPPT: 3 MPPTs / 2 strings each
- Max DC Input Voltage: 550V
- Max Input Current per MPPT: 40A
- Max Short Circuit Current per MPPT: 50A
- Nominal Input Voltage Range: 211–264V
- Communication: RS485
- Optional Communication: Cellular, Wi-Fi, LAN
- Enclosure Rating: IP66
- Dimensions (W x H x D): 21.02 × 36.61 × 11.69 in (534 × 930 × 297 mm)
- Weight: 145.06 lbs (65.8 kg)
- Certifications: UL 1741 PVRSS, UL 1699B, UL 1998 (US), UL 1741, UL 1741 SB, CSA C22.2107.1-1
Data Sheet: Download
Manual: Download
Battery Compatibility List: Download
Integration With Helios: Download
Master Compatibility List: Download
Installation Video: Link
