Description

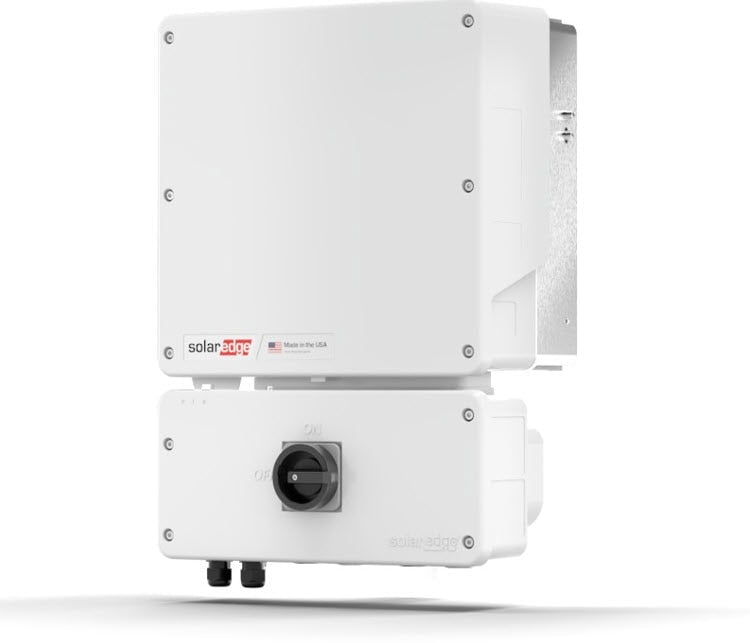

The SolarEdge Home Hub SE11400H-US is a USA-manufactured, domestic content eligible single-phase hybrid inverter engineered to manage PV production, battery storage, backup power, EV charging, and smart energy devices in one integrated unit.
Key Features
- 11,400W Maximum AC Output — Highest in the Home Hub Series: Delivers the most continuous on-grid power of any SolarEdge Home Hub model, supporting larger homes with heavier energy demands.
- 22,800W Maximum DC PV Input with 200% Oversizing: Accommodates the largest residential solar arrays in the Home Hub lineup without requiring main electrical panel upgrades.
- 12,500W Rated Backup Standalone Power: Capable of starting high LRA HVAC systems during grid outages with up to 106A locked rotor amperage support.
- 99% CEC Weighted Efficiency: Industry-leading weighted efficiency rating with a 99.2% maximum inverter efficiency, minimizing energy loss across all operating conditions.
- Full Smart Energy Ecosystem Integration: Directly connects to SolarEdge Home EV Charger and SolarEdge Home Network for unified energy management across the entire home.
Housed in a NEMA 4X-rated enclosure suitable for indoor and outdoor installations, the SE11400H-US operates across a full -40°C to +60°C temperature range with natural convection cooling — no moving parts, no noise above 50 dBA. Commissioning is simplified via the SetApp mobile application using the inverter's built-in Wi-Fi access point.
Compatible exclusively with the SolarEdge Home Battery 400V, the SE11400H-US supports up to 3 batteries per inverter with 12,500W of maximum continuous charge and discharge power. Certified to UL1741, UL1741SA, UL1741SB, UL1699B, IEEE1547-2018, and CSA 22.2#107.1, this inverter is backed by a 12–25 year warranty and is eligible for the enhanced federal domestic content tax credit bonus.
Technical Specifications
| Specification | Value |
|---|---|
| Output — AC On Grid | |
| Maximum AC Power Output | 11,400W @ 240V / 10,000W @ 208V |
| AC Output Voltage (Nominal) | 208 / 240 Vac |
| AC Output Voltage (Range) | 183 – 264 Vac |
| AC Frequency Range | 59.3 – 60 – 60.5 Hz |
| Maximum Continuous Output Current | 47.8A |
| Maximum Fault Current / Duration | 74A / 50µs |
| Total Harmonic Distortion (THD) | < 3% |
| Power Factor | 1, Adjustable -0.85 to 0.85 |
| Typical Nighttime Power Consumption | < 2.5W |
| Output — AC Standalone (Backup) | |
| Rated AC Power in Standalone Operation | 12,500W |
| Max. Continuous Output Current (Standalone) | 52A |
| Locked Rotor Amperage (LRA) | Up to 106A |
| AC L-L Output Voltage Range (Standalone) | 211 – 264 Vac |
| AC L-N Output Voltage Range (Standalone) | 105 – 132 Vac |
| AC Frequency Range (Standalone) | 55 – 60 – 65 Hz |
| Input — DC (PV and Battery) | |
| Maximum Input Voltage | 480 Vdc |
| Nominal DC Input Voltage | 380 Vdc |
| Maximum Input Short Circuit Current | 45 Adc |
| Maximum Inverter Efficiency | 99.2% |
| CEC Weighted Efficiency | 99% @ 240V / 98.5% @ 208V |
| DC Connection — PV | |
| Maximum Input Power | 22,800W @ 240V / 20,000W @ 208V |
| Maximum Input Current | 60 Adc @ 240V / 53 Adc @ 208V |
| Number of DC Ports | 3 |
| Maximum Current per Port | 40 Adc |
| DC Connection — Battery | |
| Supported Battery Types | SolarEdge Home Battery 400V |
| Number of Batteries per Inverter | Up to 3 |
| Maximum Continuous Power (Charge/Discharge) | 12,500W |
| Number of Battery Ports | 2 |
| Maximum Current per Port | 40 Adc |
| Installation Specifications | |
| Dimensions with Connection Unit (H x W x D) | 21.06 x 14.6 x 8.2 in / 535 x 370 x 208 mm |
| Weight with Connection Unit | 44.9 lbs |
| Cooling | Natural Convection |
| Operating Temperature Range | -40°F to +140°F / -40°C to +60°C |
| Noise | < 50 dBA |
| Protection Rating | NEMA 4X |
| Communication Interfaces | RS485, Ethernet, Wi-Fi, Cellular (optional) |
| DC Voltage Rapid Shutdown | Yes, NEC 690.12 |
| Certifications | |
| Safety | UL1741, UL1741SA, UL1741SB, UL1699B, CSA 22.2#107.1, ANSI/CAN/UL9540 |
| Grid Standards | IEEE1547-2018, IEEE-1547.1, Rule 21, Rule 14H |
| Emissions | FCC Part 15 Class B |
| Warranty | 12 – 25 Years |
