Description
INVERTER NOT INCLUDED

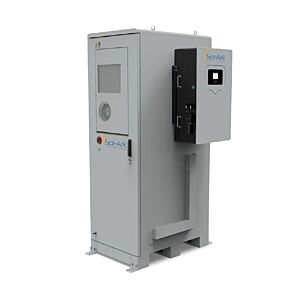

The Sol-Ark L3 HVR-60 is a commercial-grade, Lithium Iron Phosphate outdoor battery energy storage system engineered for scalable, high-voltage backup and peak shaving applications — inverter sold separately.
Designed to be used with the Sol-Ark SA-60K-3P a 480V Outdoor-rated Commercial/industrial inverter.
Key Features
- 61.44kWh Nameplate Capacity with 90% Warranted DoD: Delivers 55.30kWh of usable DC energy per unit with a guaranteed 90% depth of discharge across its full warranty period.
- Scalable Up to 360kWac / 2.2MWh: Stack up to 6 inverters and 36 battery cabinets in parallel for large commercial and industrial energy storage deployments.
- Integrated Peak Shaving & DER Support: Built-in controls enable demand charge reduction, grid export, and participation in distributed energy resource programs.
- Built-In Fire Suppression: Module and cabinet-level fire suppression is integrated at the factory, reducing installation complexity and enhancing site safety.
- Four-Channel MPPT Charging: Integrated multi-channel MPPT allows simultaneous AC and DC coupling for maximum renewable energy charging efficiency.
Housed in a corrosion-resistant powder-coated steel outdoor enclosure rated IP55/NEMA 3R, the L3 HVR-60 is built to perform in real-world outdoor conditions from -20°C to 50°C. The 200A built-in DC disconnect, CAN2.0/RS485 communication ports, and Amphenol SurLok push-lock connectors make this a fully integrated, installation-ready solution.
Technical Specifications
| Specification | Value |
|---|---|
| System Data | |
| Battery Model Name | L3 HVR-60 |
| ESS Model Name | L3 HVR-60KWH-60K |
| Compatible Inverter Model | Sol-Ark 60K-3P-480V (Sold Separately) |
| Cell Chemistry | Lithium Iron Phosphate (LFP) |
| Nameplate Energy Capacity (DC) | 61.44 kWh |
| Usable Energy Capacity (DC) | 55.30 kWh |
| Built-In DC Disconnect Rating | 200A |
| Internal Fuse Rating | 160A |
| Max. Battery Units Per Inverter | 6 |
| Max. Inverters in Parallel | 6 |
| Max. System Scale | 360kWac / 2.2MWh |
| Warranted Depth of Discharge | 90% |
| Roundtrip Efficiency (DC) | 94% @ 25°C, 0.5C |
| System Nominal Voltage (DC) | 614.4V |
| System Operating Voltage (DC) | 588V – 672V |
| Battery Pack Configuration | 12s1p |
| Recommended Charge/Discharge Current | 50A |
| Max. Continuous Current | 100A |
| Peak Discharge (60 sec @ 25°C) | 125A |
| Battery Max. Continuous Power (DC) | 61.44kW |
| ESS Max. Continuous Power (AC) | 60kW |
| Fault Current Contribution | 4,200A / 1.47ms |
| Mechanical Specifications | |
| Product Dimensions (W x D x H) | 76 x 107 x 226 cm (30 x 42 x 89 in) |
| Weight | 2,095 lbs |
| Mounting Type | Outdoor Enclosure |
| Material & Finish | Steel — Corrosion Resistant Powder Coat |
| Operating Temperature & Humidity | -20°C to 50°C (14°F – 122°F) / 5–85% RH |
| Operating Altitude | 3,000m (9,843 ft) |
| Storage Conditions | -4°F to 95°F, up to 85% RH, SOC 30% |
| Ingress Rating | IP55 / NEMA 3R |
| Noise Level @ 1m | 75 dBA at 30°C |
| Seismic Mounting | Up to Category F |
| Communication Ports | CAN2.0 / RS485 |
| Battery Module Specifications | |
| Module Nominal Energy Capacity | 5.12 kWh |
| Module Nominal Voltage & Capacity | 51.2V / 100Ah |
| Terminal Type | Amphenol SurLok Push-Lock Connector |
| Warranty & Certifications | |
| Performance Warranty | 10 Years or 196MWh Throughput |
| Product Warranty | 10 Years |
| End of Life Retained Capacity | 70% |
| Certifications | UL1973, UL9540, UL9540a, UN38.3, FCC, Prop 65 |
