Description

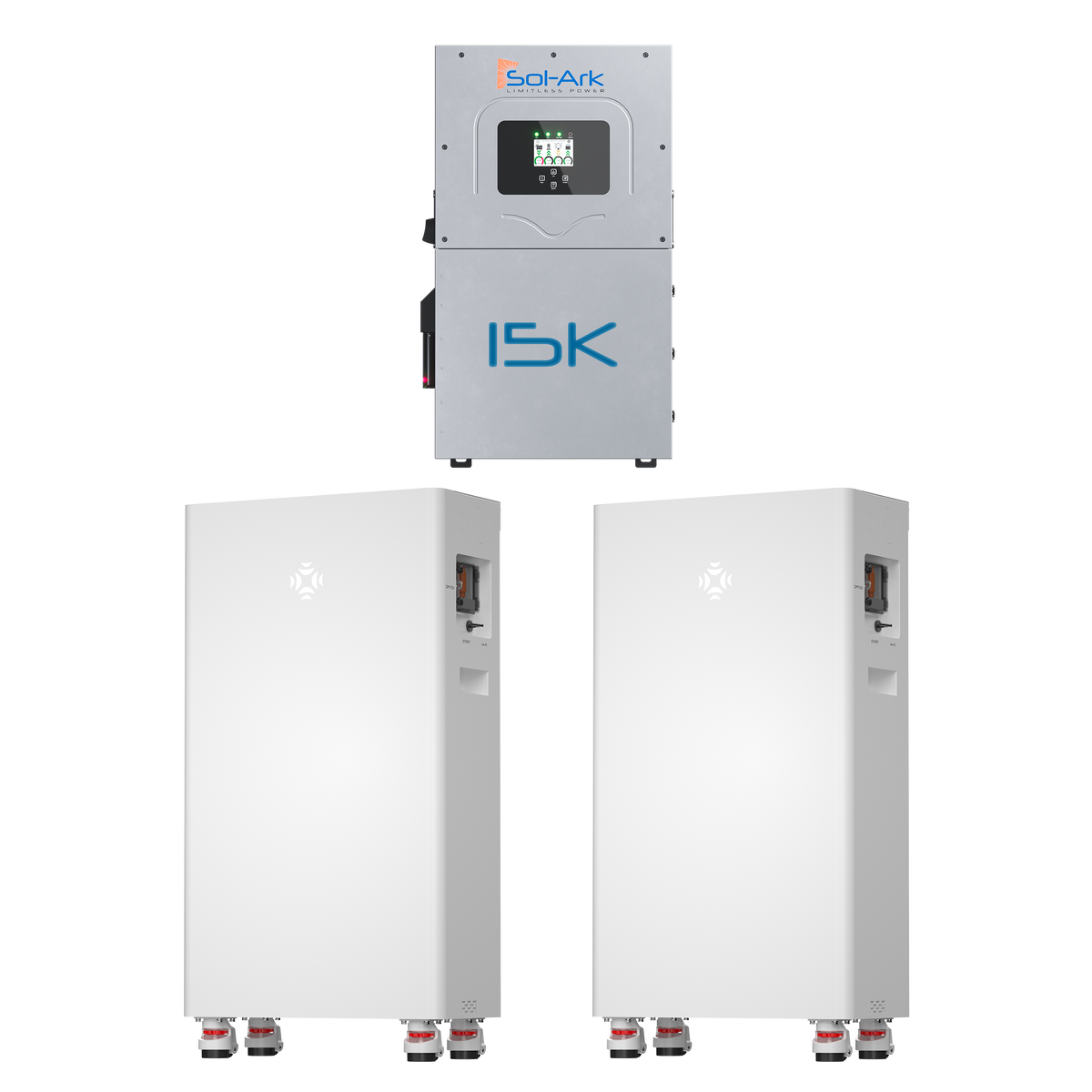

Commanding whole-home backup with room to grow, this bundle pairs the Sol-Ark Limitless 15K hybrid inverter with two UZ Energy IG-16K-U outdoor LiFePO4 batteries. You get 15kW of output, 200A grid passthrough, and 32kWh of storage.
Key Features
- 15kW Hybrid Inverter: Delivers up to 15kW of continuous power, 12kW from batteries alone, and 24,000 VA of off-grid surge for 10 seconds.
- 32kWh of Outdoor Storage: Two 16kWh LiFePO4 batteries rated IP65, with tier-one LFP cells and more than 8,000 cycles.
- High Solar Capacity: 3 MPPTs with 2 strings each accept up to 19.5kW of PV, with AC coupling available through the generator port.
- Seamless Backup: 200A grid passthrough and a 5 ms transfer time keep loads running through outages, with automatic generator start support.
- Built-In Battery Safety: Each battery includes a fire extinguisher, heating film, decompression valve, and an advanced BMS with automatic parallel configuration.
The inverter’s integrated protection includes arc fault detection, rapid shutdown, ground fault detection, and a PV disconnect. It is IP65 and NEMA 3R rated, and it runs at under 30 dB.
The batteries charge down to 14 °F, and mount on the floor or wall. They support CAN, RS485, and Wi-Fi communication, and up to 64 units can be paralleled.
Both components carry a 10-year warranty. Up to 12 inverters can be paralleled for larger systems, with Wi-Fi and LAN included for monitoring.
Bundle Contents
| Component | Model | Quantity |
|---|---|---|
| Hybrid Inverter | Sol-Ark Limitless 15K (15K-2P) | 1 |
| Outdoor Battery | UZ Energy IG-16K-U, 16kWh LiFePO4 | 2 |
Technical Specification
| Item | Specification |
|---|---|
| Total Battery Capacity | 32 kWh (2 x 16 kWh) |
| Total Bundle Weight | About 752.4 lbs (inverter 135 lbs + 2 batteries at about 308.7 lbs each) |
| Sol-Ark Limitless 15K Inverter | |
| Max. Continuous Output Power | 15,000 W |
| Continuous Power, Batteries Only | 12,000 W |
| Peak Surge Power (Off-Grid) | 24,000 VA for 10 s |
| Max. STC Rated PV Power | 19,500 W |
| MPPT Operating Range | 175 to 425 V |
| Max. PV Input Voltage | 500 V |
| MPPTs / Strings per MPPT | 3 / 2 |
| Max. PV Input Current | 26 A per MPPT |
| Grid Voltage | 120/240 V, 120/208 V, 220 V |
| Grid Passthrough Current | 200 A |
| Backup Transfer Time | 5 ms |
| Battery Nominal Voltage | 48 V (43 to 63 V range) |
| Max. Battery Charge / Discharge Current | 275 A |
| Max. Efficiency | 97.5% |
| Enclosure Rating | IP65 / NEMA 3R |
| Inverter Dimensions (H x W x D) | 31.8 x 19.4 x 12 in |
| Inverter Weight | 135 lbs |
| Certifications | UL 1741 SB, IEEE 1547a, FCC Part 15 Class B, CA Rule 21, HECO Rule 14H |
UZ Energy IG-16K-U Battery (each) |
|
| Cell Type | LiFePO4 |
| Rated Voltage / Capacity | 51.2 V / 314 Ah |
| Rated Energy | 16 kWh |
| Working Voltage Range | 43.2 to 58.4 V |
| Max. Charge Current | 150 A (0.48C) |
| Max. Continuous Discharge Current | 200 A (0.64C) |
| Max. Charge / Discharge Power | 7.6 kW / 10 kW |
| Peak Discharge (1 min) | 210 A / 10.7 kW |
| Cycle Life | More than 8,000 cycles |
| Operating Temperature | Charge 14 to 131 °F; discharge 5 to 131 °F |
| Communication | CAN / RS485 / Wi-Fi |
| IP Rating | IP65 |
| Installation | Floor-standing or wall-mounted |
| Battery Dimensions (W x D x H) | 19.69 x 9.25 x 37.80 in |
| Battery Weight | About 308.7 lbs each |
| Certifications | UL 1973, UL 9540A, UN 38.3, FCC |
| Warranty | 10 years (inverter and battery) |
