Description

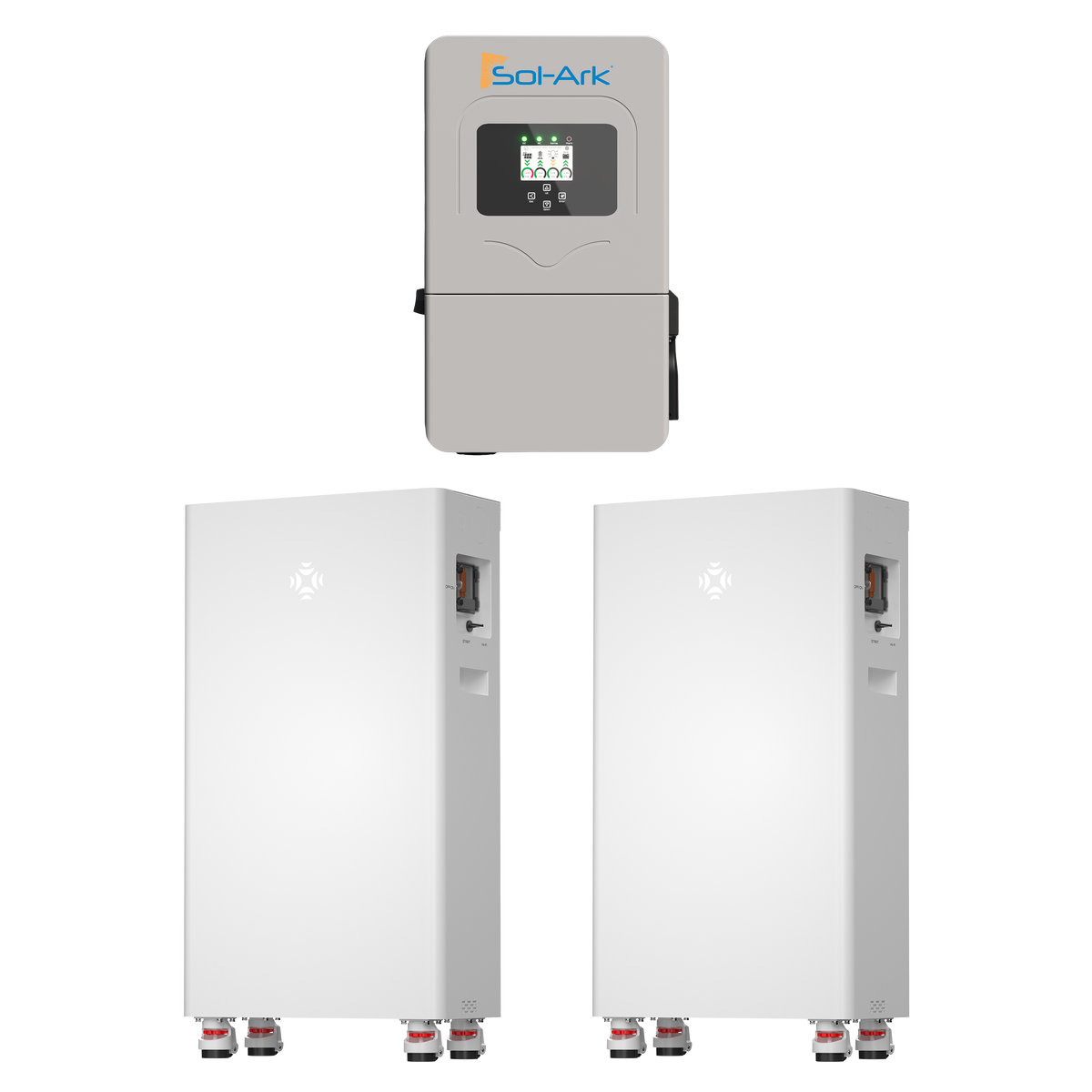

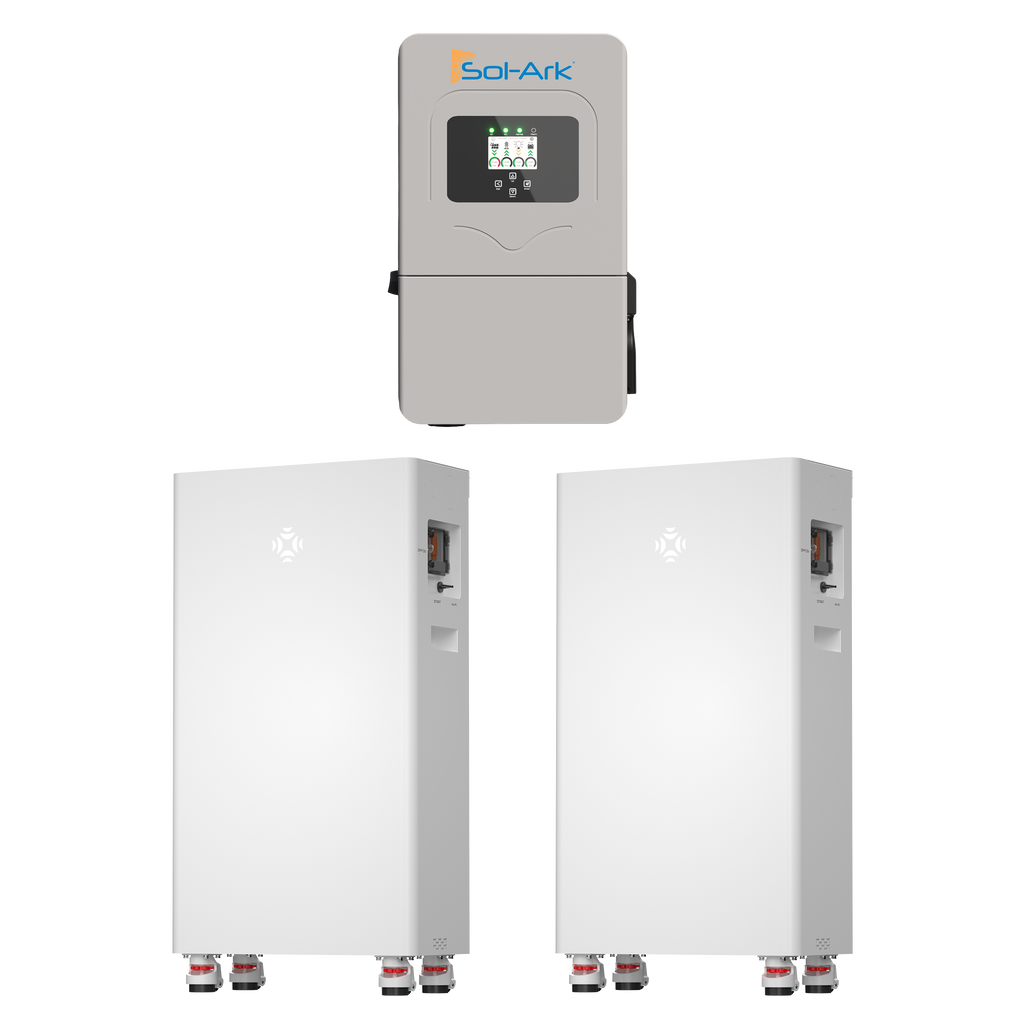

Equipping your home with whole-home backup and solar self-consumption, this bundle pairs the Sol-Ark Limitless 12K hybrid inverter with two UZ Energy IG-16K-U outdoor LiFePO4 batteries. Together they provide 32kWh of storage and 10kW of continuous backup power.
Key Features
- 12kW Hybrid Inverter: The Limitless 12K delivers 12kW to the grid or 10kW of continuous backup from batteries, with 24kW surge power for 10 seconds.
- 32kWh of Outdoor Storage: Two 16kWh LiFePO4 batteries rated IP65, with tier-one LFP cells and over 8,000 cycles.
- Flexible Solar Input: 3 MPPTs with 2 strings each accept up to 19.2kW of PV, with both DC and AC coupling for new builds or retrofits.
- Seamless Backup: 100A grid passthrough and a 5 ms transfer time keep loads running through outages, with smart load control and generator support.
- Built-In Battery Safety: Each battery includes a fire extinguisher, heating film, decompression valve, and an advanced BMS with automatic parallel configuration.
The inverter handles loads such as mini-split A/C systems, well pumps, kitchen appliances, and furnace blowers. A built-in PV disconnect, arc fault detection, and rapid shutdown meet the key NEC requirements.
The batteries charge down to 14 °F and mount on the floor or wall. They support CAN, RS485, and Wi-Fi communication, and up to 64 units can be paralleled.
Both components carry a 10-year warranty, and the inverter is a U.S. company, non-FEOC product. Monitoring runs through the MySolArk mobile and web apps with VPP enrollment support.
Bundle Contents
| Component | Model | Quantity |
|---|---|---|
| Hybrid Inverter | Sol-Ark Limitless 12K (12K-2P-LL) | 1 |
| Outdoor Battery | UZ Energy IG-16K-U, 16kWh LiFePO4 | 2 |
Technical Specification
| Item | Specification |
|---|---|
| Total Battery Capacity | 32 kWh (2 x 16 kWh) |
| Sol-Ark Limitless 12K Inverter | |
| Nominal Output Power (240V) | 12,000 W |
| Backup Continuous Power | 10,000 W (120/240 V); 8,660 W (120/208 V) |
| Peak Surge Power (10 s) | 24,000 W |
| Max. STC Rated PV Power | 19,200 W |
| Max. Usable Combined MPPT PV Power | 12,000 W |
| MPPT Operating Voltage Range | 150 to 425 V |
| Max. PV Input Voltage | 500 V |
| MPPTs / Strings per MPPT | 3 / 2 |
| Max. PV Input Current | 32 A per MPPT |
| Grid Voltage | 120/240 V, 120/208 V |
| Max. Passthrough Current | 100 A |
| Backup Transfer Time | 5 ms |
| Battery Nominal Voltage | 48 V (43 to 59 V range) |
| Max. Battery Charge / Discharge Current | 220 A / 220 A |
| Max. Efficiency | 97.6% |
| Enclosure Rating | IP65 / NEMA 3R |
| Inverter Dimensions (H x W x D) | 25.7 x 16.59 x 9.8 in |
| Inverter Weight | 65 lbs |
| Certifications | UL 1741 3rd SB, UL 1699B, UL 1998, CSA C22.2 No. 107, IEEE 1547-2018, FCC Part 15 Class B |
UZ Energy IG-16K-U Battery (each) |
|
| Cell Type | LiFePO4 |
| Rated Voltage / Capacity | 51.2 V / 314 Ah |
| Rated Energy | 16 kWh |
| Working Voltage Range | 43.2 to 58.4 V |
| Max. Charge Current | 150 A (0.48C) |
| Max. Continuous Discharge Current | 200 A (0.64C) |
| Max. Charge / Discharge Power | 7.6 kW / 10 kW |
| Peak Discharge (1 min) | 210 A / 10.7 kW |
| Cycle Life | More than 8,000 cycles |
| Operating Temperature | Charge 14 to 131 °F; discharge 5 to 131 °F |
| Communication | CAN / RS485 / Wi-Fi |
| IP Rating | IP65 |
| Installation | Floor-standing or wall-mounted |
| Battery Dimensions (W x D x H) | 19.69 x 9.25 x 37.80 in |
| Battery Weight | About 308.7 lbs each |
| Certifications | UL 1973, UL 9540A, UN 38.3, FCC |
| Warranty | 10 years (inverter and battery) |
