SLD Tech (Solarland) Double Arm Side of Pole/Wall Mount | SLB-0125

The SLD Tech SLB-0125 is a heavy-duty double arm side-of-pole or wall mount designed to hold two ST Series solar panels in the 150W–200W range with adjustable tilt from 0° to 90°.

Key Features:

• Mounts Two 150W–200W Panels: Specifically designed for SLD Tech ST Series panels in the 150W–200W range, and also compatible with any solar panel up to 45 inches on the shortest side.
• Fully Adjustable Tilt Angle: Setting angle adjusts from 0° to 90° for optimal solar positioning across all seasons and installation orientations — pole-mounted or wall-mounted.
• Wind and Snow Rated: Engineered to withstand wind speeds up to 90 mph and snow loading of 1.1 kN/m² for reliable performance in demanding outdoor environments.
• Aluminum Alloy Construction: All fixed brackets are aircraft-grade aluminum alloy with stainless steel M6 and M8 hardware included — both bolt sizes provided to accommodate varying panel mounting hole configurations.
• 5-Year Warranty: Backed by a 5-year product warranty for long-term installation confidence.

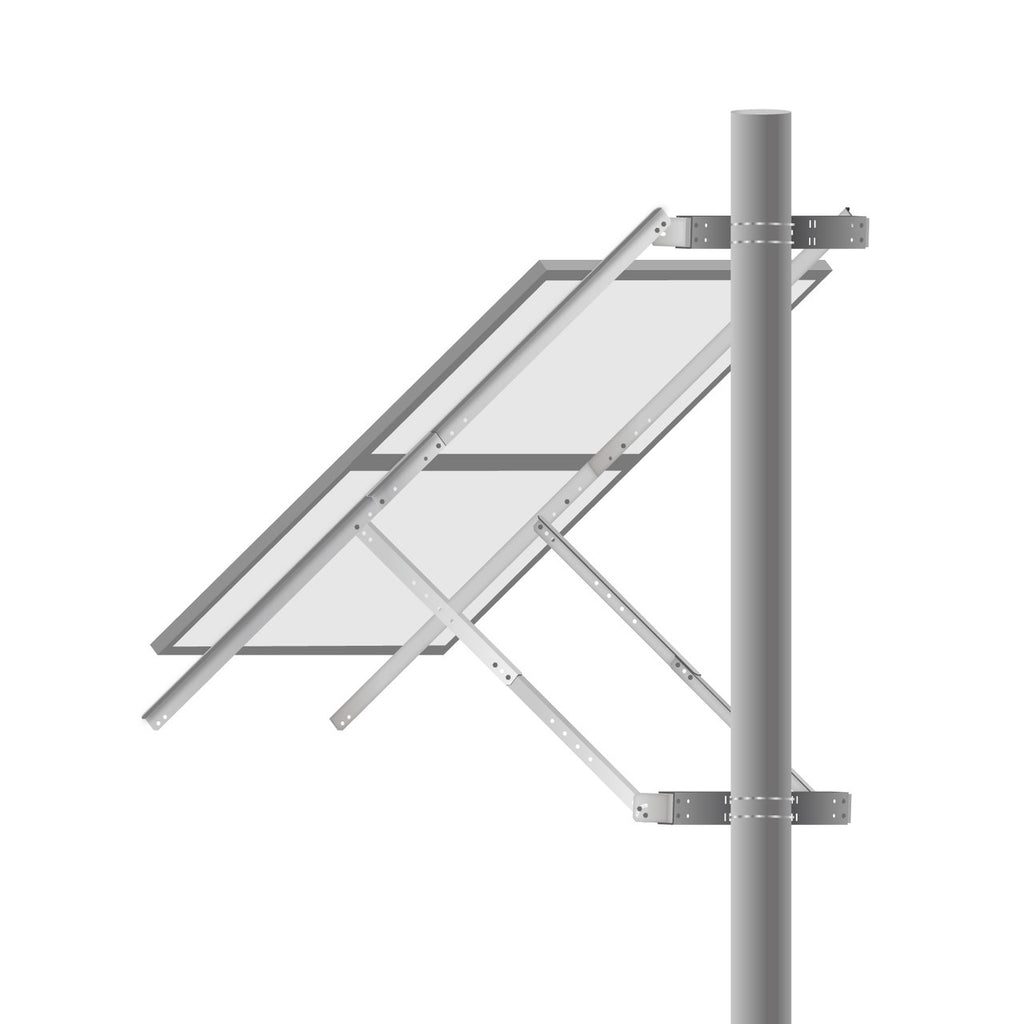

The SLB-0125 mounts to the side of a round pole or flat wall surface and supports two panels in a stacked dual-arm configuration. Both face-in (32.7 in) and face-out (18.85 in) mounting orientations are supported, giving installers flexibility to optimize panel positioning relative to the mounting structure.

All aluminum alloy fixed brackets and stainless steel hardware are included in the kit. M6 and M8 bolts are both provided to accommodate varying panel mounting hole configurations when used with non-SLD Tech panels. Note that U-bolts or steel clamps for pole mounting are not included and must be sourced separately.

Technical Specifications
