Description

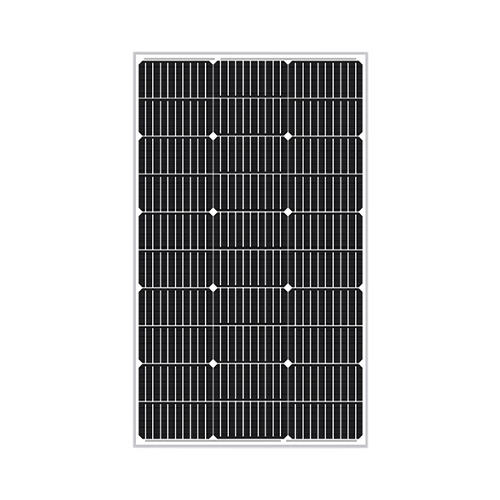

Harness the power of the sun with the SLD Tech ST-90P-12, a 90-watt monocrystalline solar panel designed for efficiency and durability. Ideal for various 12V DC off-grid applications, this panel ensures reliable energy generation even in challenging conditions.
Key Features:
- High Efficiency: Advanced monocrystalline cells with a 20% efficiency rate ensure optimal energy conversion and high power output.
- Durable Construction: Features a heavy-duty anodized aluminum frame and high-transparency, low-iron tempered glass for long-lasting performance and protection against environmental stressors.
- Outstanding Low-Light Performance: Designed to maintain energy generation in shaded or overcast conditions, ensuring consistent power output throughout the day.
- Salt Mist Corrosion Resistance: Certified to withstand salt mist corrosion (IEC 61701), making it an excellent choice for marine and coastal applications.
- Positive Power Tolerance: Delivers at least its rated power output, with a tolerance of ±5%, ensuring reliable and consistent performance.
- Weatherproof Design: IP68-rated junction box and MC4-compatible connectors offer superior protection against water and dust ingress, providing dependable outdoor performance.
- Pre-Drilled Mounting Holes: Simplifies installation on brackets, poles, or tilt systems, saving time and effort.
Product Overview:
The SLD Tech ST-90Q-12 utilizes advanced monocrystalline solar cell technology, offering exceptional performance and longevity. Its durable construction includes a robust anodized aluminum frame and tempered glass, designed to endure high wind pressures, hail, and heavy snow loads. This makes the panel suitable for various environments and weather conditions.
One of the standout features of the ST-90Q-12 is its outstanding low-light performance, ensuring reliable power generation during overcast days or in shaded areas. Additionally, its salt mist corrosion resistance makes it an ideal choice for coastal and marine installations.
The nominal 12V DC output ensures compatibility with a wide range of off-grid systems, including battery charging setups, remote monitoring systems, and off-grid residential power solutions. With its manageable size and weight, the panel is easy to handle and install, making it a versatile choice for numerous applications.
Applications:
- Battery Charging: Efficiently charges batteries for medium-sized off-grid systems.
- Remote Monitoring Systems: Powers weather stations, sensors, and security cameras.
- Off-Grid Residential Use: Supports energy needs for cabins, sheds, and small homes.
- Recreational Vehicles (RVs): Supplies power for lighting, appliances, and device charging.
- Marine Applications: Ideal for powering navigation lights, communication systems, and small appliances on boats.
Technical Specifications:
| Specification | Details |
|---|---|
| Model | ST-90Q-12 |
| Maximum Power (Pmax) | 90W |
| Module Efficiency | 21.4% |
| Voltage at Pmax (Vmp) | 19.01V |
| Current at Pmax (Imp) | 4.74A |
| Open-Circuit Voltage (Voc) | 22.31V |
| Short-Circuit Current (Isc) | 5.05A |
| Dimensions | 35.04 in x 20.87 in x 1.18 in (890mm x 530mm x 30mm) |
| Weight | 12.16 lbs (5.52 kg) |
| Operating Temperature Range | -40°C to 85°C |
| Maximum System Voltage | 1000V DC |
| Power Tolerance | ±5% |
| Number of Cells | 33(3X11) |
| Frame Material | Anodized Aluminum |
| Glass Type | High-Transparency, Low-Iron Tempered Glass |
| Junction Box Rating | IP68 (Water and Dust Resistant) |
| Cable Length | 35.4 inches (900mm) |
| Connector Type | MC4 Compatible |
| Wind Load Resistance | Up to 2400 Pa |
| Snow Load Resistance | Up to 5400 Pa |
| Certifications | CE, TUV, RoHS, IEC 61701 (Salt Mist Corrosion) |
| Warranty | 25-Year Limited Power Output Warranty |
