Description

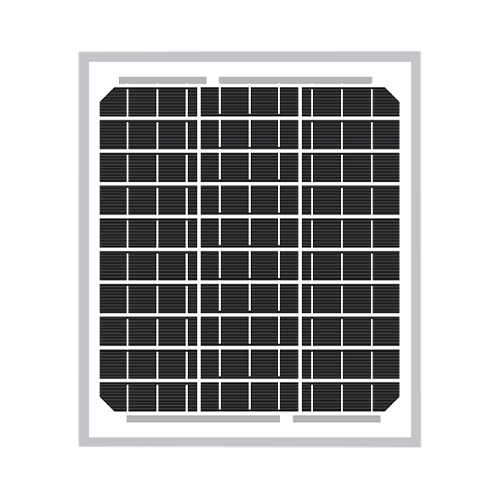

SLD Tech (Solarland) ST-5P-12-R 5-Watt Monocrystalline Solar Panel Kit
Introducing the SLD Tech ST-5P-12-R 5-Watt Monocrystalline Solar Panel Kit—your reliable solution for efficient and sustainable energy in various off-grid applications. Whether you're powering security systems, communication devices, or pest control equipment, this compact and durable solar panel delivers consistent performance to meet your energy needs.
Key Features:
- High Efficiency: Monocrystalline solar cells with a 20% efficiency rate ensure maximum energy capture, even in low-light conditions.
- Robust Construction: Built with a sturdy aluminum frame and reinforced back plate, designed to endure harsh weather conditions, including high wind pressures, hail, and heavy snow.
- Pre-Installed Cable: Includes a 10-foot 18/2 cable with an inline diode and 3/8-inch ring terminal connectors for easy and secure connections.
- Compact and Lightweight: Measuring 8.86" x 7.68" x 0.71" and weighing only 1.25 lbs, this panel is easy to transport and install in space-constrained settings.
- Versatile Applications: Ideal for 12V DC off-grid systems such as security monitoring, communication setups, pest control devices, and more.
- Weatherproof Design: IP68-rated junction box ensures protection against water and dust ingress, offering reliable outdoor performance.
- Outstanding Low-Light Performance: Maintains energy generation during overcast days or shaded conditions for consistent output.
Product Overview:
The SLD Tech ST-5P-12-R solar panel kit is engineered to provide reliable power in a compact and lightweight design. Its monocrystalline cells ensure optimal energy generation, making it perfect for various off-grid applications. The aluminum frame and thick back plate deliver durability, ensuring long-term use in challenging environments.
This kit is equipped with a pre-installed 10-foot cable, including an inline diode and 3/8-inch ring terminal connectors, simplifying installation and ensuring secure connections to 12V DC systems. Its compact size and lightweight construction make it an excellent choice for portable setups and installations in remote locations.
Applications:
The ST-5P-12-R solar panel is versatile and can power a variety of off-grid systems, including:
- Security Monitoring Systems: Reliable energy for cameras, motion sensors, and alarm systems.
- Communication Devices: Power radios, satellite phones, and data relay equipment.
- Pest Control Equipment: Supports devices for agricultural pest deterrents.
- Marine and RV Systems: Provides supplementary energy for small devices and lighting.
- Portable Power Solutions: Ideal for camping, emergency kits, and remote monitoring setups.
Technical Specifications:
| Specification | Details |
|---|---|
| Maximum Power (Pmax) | 5 Watts |
| Voltage at Pmax (Vmp) | 17.37 Volts |
| Current at Pmax (Imp) | 0.29 Amps |
| Open-Circuit Voltage (Voc) | 20.04 Volts |
| Short-Circuit Current (Isc) | 0.30 Amps |
| Module Efficiency | 20% |
| Dimensions | 8.86" x 7.68" x 0.71" (225mm x 195mm x 18mm) |
| Weight | 1.25 lbs (0.57 kg) |
| Operating Temperature Range | -40°C to 85°C |
| Maximum System Voltage | 1000V DC |
| Power Tolerance | ±5% |
| Cable Length | 10 ft (3.05 m) |
| Connector Type | 3/8-inch ring terminal connectors |
| Diode Rating | 3A inline diode for reverse current protection |
| Junction Box Rating | IP68 (Water and Dust Resistant) |
| Frame Material | Anodized aluminum |
| Glass Type | High-transparency, low-iron tempered glass |
| Wind Load Resistance | Up to 2400 Pa |
| Snow Load Resistance | Up to 5400 Pa |
| Certifications | CE, TUV, RoHS |
| Warranty | 2-Year Product Workmanship; 25-Year Performance Warranty |
Additional Features:
- Salt Mist and Ammonia Resistance: Suitable for agricultural and coastal environments.
- PID Resistance: Ensures reliable long-term performance by minimizing power degradation.
- Self-Cleaning Glass Coating: Reduces dirt and dust accumulation, improving light absorption.
- Enhanced Temperature Coefficient: Performs efficiently in extreme hot or cold conditions, making it ideal for diverse climates.
- Lightweight and Portable: Easy to transport and perfect for temporary or mobile installations.
The SLD Tech ST-5P-12-R 5-Watt Monocrystalline Solar Panel Kit is an excellent choice for small-scale off-grid energy needs. With its compact design, durable construction, and high efficiency, this panel kit offers dependable performance and versatile applications in any environment.
