Description

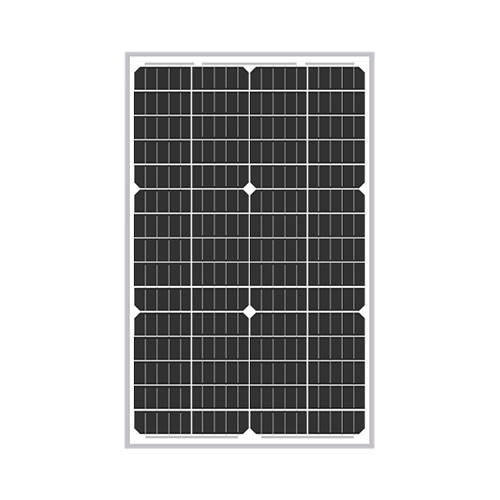

SLD Tech (Solarland) ST-30P-24 30-Watt 24V Monocrystalline Solar Panel
Introducing the SLD Tech ST-30P-24 30-Watt 24V Monocrystalline Solar Panel—a compact yet powerful solution for your off-grid energy needs. Engineered with high-efficiency monocrystalline cells, this panel delivers reliable performance across various applications, including traffic systems, telecommunications, lighting, recreational vehicles, and marine equipment.
Key Features:
- High Efficiency: Achieves up to 20% module efficiency, ensuring optimal energy conversion even in low-light conditions.
- Durable Construction: Built with a heavy-duty anodized aluminum frame and high-transparency, low-iron tempered glass to withstand harsh environmental conditions such as high wind pressures, hail, and heavy snow.
- Positive Power Tolerance: Guaranteed power output with a positive tolerance of up to +5%, providing consistent and reliable energy production.
- Versatile Applications: Ideal for various 24V off-grid setups, including security monitoring, communication systems, and pest control devices.
- Weatherproof Design: IP68-rated junction box offers protection against water and dust ingress, ensuring reliable outdoor performance.
- Salt Mist Resistance: Certified to withstand coastal and marine environments, making it suitable for boats and offshore installations.
- Pre-Drilled Mounting Holes: Simplifies installation on brackets, poles, and tilt systems, saving time and effort.
- Compact and Lightweight: Designed for easy handling and integration into tight spaces, perfect for portable and mobile applications.
Applications:
The versatility of the ST-30P-24 makes it suitable for a wide range of applications, including:
- Traffic and Safety Systems: Provides reliable power for traffic signals, signage, and monitoring equipment.
- Telecommunications: Ensures continuous operation of remote communication devices and relay stations.
- Lighting: Powers outdoor lighting solutions, including streetlights and security lights, in off-grid locations.
- Recreational Vehicles and Marine: Supplies energy for RVs and boats, supporting appliances and electronic devices during travel.
- Industrial Monitoring: Reliable energy for remote sensors, data loggers, and monitoring stations.
Installation and Maintenance:
- Easy Installation: The panel’s pre-drilled mounting holes and lightweight design make installation straightforward on various surfaces.
- Low Maintenance: Regular cleaning of the glass surface ensures optimal performance, especially in dusty or debris-prone environments.
- Rugged Design: High-quality materials minimize the need for frequent maintenance, providing peace of mind for long-term use.
Technical Specifications:
| Specification | Details |
|---|---|
| Maximum Power (Pmax) | 30W |
| Voltage at Pmax (Vmp) | 34.74V |
| Current at Pmax (Imp) | 0.87A |
| Open-Circuit Voltage (Voc) | 40.07V |
| Short-Circuit Current (Isc) | 0.91A |
| Module Efficiency | 20% |
| Operating Temperature Range | -40°C to 85°C |
| Maximum System Voltage | 1000V DC |
| Power Tolerance | ±5% |
| Dimensions | 22.44 in x 14.17 in x 1.18 in (570mm x 360mm x 30mm) |
| Weight | 5.61 lbs (2.54 kg) |
| Number of Cells | 60 (4x15 configuration) |
| Frame Material | Anodized aluminum |
| Glass Type | High-transparency, low-iron tempered glass |
| Junction Box Rating | IP68 (Water and Dust Resistant) |
| Connector Type | MC4 Compatible |
| Cable Length | 35.4 inches (900mm) |
| Wind Load Resistance | Up to 2400 Pa |
| Snow Load Resistance | Up to 5400 Pa |
| Certifications | IEC 61701 (Salt Mist Corrosion), CE, TUV, RoHS |
| Warranty | 25-Year Limited Power Output Warranty |
Additional Features:
- Enhanced Low-Light Performance: Generates energy efficiently even during overcast or shaded conditions.
- PID Resistance: Minimizes power degradation for long-term reliability and performance.
- Self-Cleaning Coating: Reduces dust accumulation, improving light absorption and lowering maintenance needs.
- Temperature Coefficient: Maintains high efficiency in extreme temperatures, suitable for hot and cold climates.
- Portable and Durable: Lightweight design makes it ideal for mobile setups, emergency power, and remote installations.
The SLD Tech ST-30P-24 30-Watt 24V Monocrystalline Solar Panel offers a reliable, efficient, and durable solution for off-grid energy applications. Whether you’re powering traffic systems, lighting, or marine equipment, this panel delivers dependable performance, even in challenging environments
