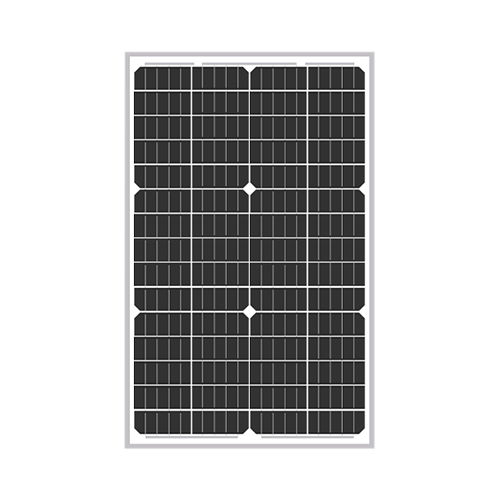

SLD Tech (Solarland) ST-30P-24-R 30W 24V Monocrystalline Solar Panel Kit
Introducing the SLD Tech ST-30P-24-R 30W 24V Monocrystalline Solar Panel Kit—a reliable and efficient solution for your off-grid power needs. Designed with high-quality materials and advanced technology, this solar panel kit ensures consistent performance across various applications, including security monitoring, communication systems, and remote power setups.
Key Features:
- High Efficiency: Utilizes monocrystalline silicon solar cells with a module efficiency of 20%, ensuring optimal energy conversion even in low-light conditions.
- Durable Construction: Built with a heavy-duty anodized aluminum frame and high-transparency, low-iron tempered glass, the panel is engineered to withstand high wind pressures, hail, and heavy snow, ensuring longevity and reliability.
- Positive Power Tolerance: Features a positive power tolerance of 0 to +5%, guaranteeing that the panel delivers at least its rated power output, providing assurance of performance.
- Wide Operating Temperature Range: Operates efficiently in temperatures ranging from -40°C to 85°C, making it suitable for diverse environmental conditions.
- Weatherproof Design: IP68-rated junction box and MC4-compatible connectors ensure superior protection against water and dust ingress for reliable outdoor performance.
- Salt Mist Resistance: Certified for coastal and marine environments, making it a dependable choice for marine applications.
- Comprehensive Warranty: Comes with a 2-year product workmanship warranty and a 25-year power output warranty, reflecting the manufacturer's confidence in the panel's durability and performance.
- Pre-Wired Convenience: Includes a 10-ft 18/2 cable with an inline diode and 3/8-inch ring terminal connectors, simplifying installation and protecting the system from reverse current.
Product Overview:
The SLD Tech ST-30P-24-R solar panel kit is designed to meet the demands of various off-grid applications. Its monocrystalline silicon solar cells provide high efficiency, ensuring maximum power generation from sunlight. The robust construction, featuring a heavy-duty anodized aluminum frame and tempered glass, offers protection against environmental challenges, including high winds, hail, and snow.
This solar panel kit is ideal for powering remote equipment, such as security cameras, communication devices, and other 24V DC systems. Its outstanding low-light performance ensures reliable energy production even during overcast days, making it a dependable choice for continuous power supply.
The included 10-ft 18/2 cable with an inline diode and 3/8-inch ring terminal connectors enhances system safety by preventing reverse current flow, protecting your battery and optimizing performance.
Applications:
- Remote Monitoring: Powers security cameras, weather stations, and sensors.
- Communication Systems: Provides energy for radios, satellite phones, and repeater stations.
- Marine Equipment: Supplies energy for marine systems in coastal environments.
- Lighting Solutions: Powers outdoor lighting, including streetlights and security lights.
- Recreational Vehicles: Provides supplementary energy for RV appliances and electronics.
Technical Specifications:
| Specification | Details |
|---|---|
| Model | ST-30P-24-R |
| Maximum Power (Pmax) | 30W |
| Voltage at Pmax (Vmp) | 34.74V |
| Current at Pmax (Imp) | 0.87A |
| Open-Circuit Voltage (Voc) | 40.07V |
| Short-Circuit Current (Isc) | 0.91A |
| Module Efficiency | 20% |
| Number of Cells | 60 (4x15 configuration) |
| Dimensions | 570mm x 360mm x 30mm (22.44in x 14.17in x 1.18in) |
| Weight | 2.54kg (5.61lbs) |
| Operating Temperature Range | -40°C to 85°C |
| Maximum System Voltage | 1000V DC |
| Power Tolerance | ±5% |
| Cable Length | 10 ft (3.05 m) |
| Connector Type | 3/8-inch ring terminal connectors |
| Diode Rating | 3A inline diode for reverse current protection |
| Junction Box Rating | IP68 (Water and Dust Resistant) |
| Wind Load Resistance | Up to 2400 Pa |
| Snow Load Resistance | Up to 5400 Pa |
| Certifications | CE, TUV, RoHS, IEC 61701 (Salt Mist Corrosion) |
| Warranty | 2-year product workmanship; 25-year power output warranty |
Additional Features:
- PID Resistance: Prevents power degradation over time, ensuring reliable long-term performance.
- Enhanced Low-Light Performance: Provides consistent energy output in shaded or cloudy conditions.
- Self-Cleaning Glass Coating: Reduces dust accumulation, improving energy capture.
- Portable and Lightweight: Ideal for mobile setups, emergency power, and remote applications.
- Temperature Coefficient: Maintains efficiency in extreme hot or cold climates.
The SLD Tech ST-30P-24-R 30W 24V Monocrystalline Solar Panel Kit combines efficiency, durability, and convenience for reliable off-grid energy. Whether for remote installations or portable power systems, this kit provides sustainable energy solutions that endure in diverse conditions
