Description

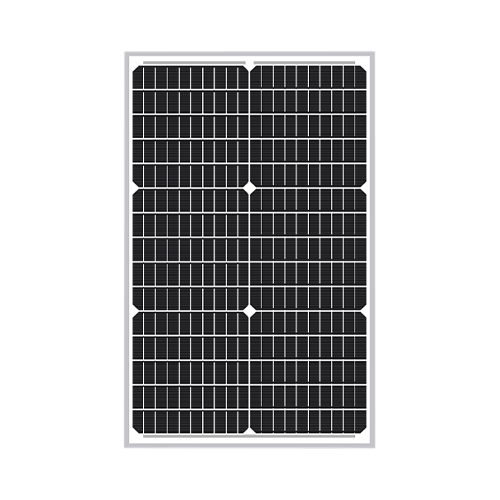

Introducing the SLD Tech ST-30R-12, a 30-watt monocrystalline solar panel engineered for efficiency and durability. Ideal for 12V off-grid applications, this panel is perfect for powering traffic systems, telecommunications equipment, lighting, recreational vehicles, marine vessels, and more. Its robust construction ensures reliable performance even in challenging environmental conditions.
Key Features:
- High Efficiency: Utilizes advanced monocrystalline solar cells achieving up to 20% module efficiency, ensuring optimal power generation.
- Durable Construction: Built with a heavy-duty anodized aluminum frame and high-transparency, low-iron tempered glass, designed to withstand high wind pressures, hail, and heavy snow.
- Outstanding Low-Light Performance: Engineered to perform efficiently even under low-light conditions, maximizing energy capture throughout the day.
- Weather Resistant: Tested for high resistance to Potential Induced Degradation (PID) and certified for salt mist corrosion resistance (IEC 61701), making it suitable for various climates.
- Versatile Applications: Ideal for a wide range of 12V off-grid applications, including security monitoring, communication systems, and pest control devices.
- Pre-Drilled Mounting Holes: Simplifies installation on various mounts, including brackets, poles, and tilt systems.
- IP68 Junction Box: Provides excellent protection against water and dust ingress, ensuring reliable outdoor performance.
Product Overview:
The SLD Tech ST-30R-12Â solar panel is designed to deliver reliable power in diverse off-grid scenarios. Its high-efficiency monocrystalline cells ensure maximum energy conversion, while the sturdy construction guarantees longevity and resilience against environmental stressors. Whether you're powering remote communication equipment or enhancing your RV's energy independence, this panel offers a dependable solution.
Installation is straightforward, thanks to pre-drilled holes and compatible mounting options. Regular maintenance involves cleaning the glass surface to remove dust and debris, ensuring optimal performance. Its robust design minimizes the need for frequent upkeep, offering peace of mind and long-term value.
Applications:
- Remote Monitoring Systems: Powers security cameras, sensors, and weather stations.
- Recreational Vehicles (RVs): Provides energy for lights, small appliances, and charging devices.
- Marine Equipment: Ideal for powering small marine devices in coastal environments.
- Traffic Systems: Supports traffic signals, road signs, and warning lights.
- Communication Devices: Reliable energy for radios, satellite phones, and repeaters.
Key Specifications:
| Specification | Details |
|---|---|
| Model Number | ST-30R-12 |
| Manufacturer | SLD Tech (formerly Solarland) |
| Cell Type | Monocrystalline silicon |
| Number of Cells | 33 cells (3×11 configuration) |
| Maximum Power (Pmax) | 30W |
| Module Efficiency | 21.0% |
| Voltage at Pmax (Vmp) | 18.85V |
| Current at Pmax (Imp) | 1.60A |
| Open-Circuit Voltage (Voc) | 22.28V |
| Short-Circuit Current (Isc) | 1.68A |
| Nominal System Voltage | 24V DC |
| Power Tolerance | 0 to +3% (positive only) |
| Operating Temperature | -40°C to 85°C (-40°F to 185°F) |
| Maximum System Voltage | 1000V DC |
| Temperature Coefficient (Voc) | -(80±10) mV/°C |
| Temperature Coefficient (Isc) | (0.065±0.015) %/°C |
| Temperature Coefficient (Pmax) | -(0.5±0.05) %/°C |
| NOCT | 47±2°C (at Air 20°C, Sun 0.8kW/m², wind 1m/s) |
| Wind Load (negative) | 2400 Pa |
| Snow Load (positive) | 5400 Pa |
| Module Dimensions | 22.44" × 14.17" × 1.18" (570mm × 360mm × 30mm) |
| Weight | 5.61 lb (2.54 kg) |
| Frame Material | Heavy-duty anodized aluminum |
| Glass | High-transparency, low-iron tempered glass |
| Junction Box | Weather-sealed with bypass diodes |
| Carton Dimensions | 23.62" × 8.46" × 15.35" (600mm × 215mm × 390mm) |
| Packing | 5 units per carton |
| PID Resistance | High (advanced cell technology) |
| Salt Mist Resistance | IEC 61701 certified |
| Cable Kit Option (SLCBL-55) | 10ft 18/2 AWG cable with 3A inline diode & 3/8" ring terminals |
| Product Workmanship Warranty | 5 years |
| Power Output Warranty | 10 years (linear: 97% @ 5yr, 90% @ 10yr, 80.68% @ 25yr) |
| Typical Applications | 24V battery maintainers, heavy equipment, commercial vehicles, marine systems, remote sensors, gate operators, small water pumps, LED lighting, telecommunications backup, portable power, security systems, backup power |
