SLD Tech (Solarland) 20w 24v Monocrystalline Solar Panel Kit - ST-20P-24-R

SLD TechSKU: ST-20P-24-R

Price:
Sale price$74.81

Description

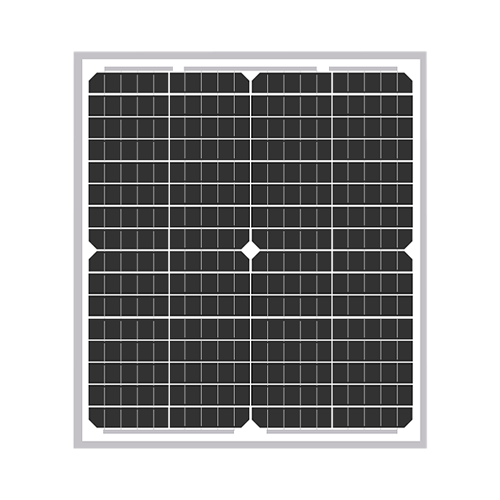

SLD Tech (Solarland) ST-20P-24-R 20-Watt Monocrystalline Solar Panel Kit

Introducing the SLD Tech ST-20P-24-R 20-Watt Monocrystalline Solar Panel Kit—your reliable partner for efficient and sustainable energy solutions. Designed with precision and built to last, this solar panel is ideal for various 24V off-grid applications, including security monitoring, communication systems, and pest control devices.


Key Features:

  • High Efficiency Monocrystalline Cells: Achieves up to 20% module efficiency, ensuring optimal energy conversion even in low-light conditions.
  • Robust Construction: Equipped with a heavy-duty anodized aluminum frame and high-transparency, low-iron tempered glass, this panel is engineered to withstand harsh environmental conditions, including high wind pressures, hail, and heavy snow.
  • Complete Installation Kit: Includes a 10-ft 18/2 cable with an inline diode and 3/8-inch ring terminal connectors, making setup seamless and efficient. These pre-installed components protect the system from reverse current and ensure an optimal connection to your battery or power system.
  • Compact and Lightweight Design: With dimensions of 15.94 x 14.17 x 1.18 inches and weighing just 4.13 lbs, it offers easy installation and integration into various setups.
  • Outstanding Low-Light Performance: Delivers reliable power output even during cloudy days or in shaded environments, ensuring consistent energy supply.
  • Weatherproof Junction Box: IP68-rated for superior protection against water and dust ingress, ensuring reliability in outdoor installations.
  • Pre-Drilled Mounting Holes: Facilitates quick installation on various mounts, including brackets, poles, and tilt systems.

Product Overview:

The SLD Tech ST-20P-24-R solar panel utilizes advanced monocrystalline technology to provide a dependable 24V DC output. Its sturdy construction features a silver frame and a white backsheet, ensuring both durability and aesthetic appeal. This panel is designed to meet the energy needs of various off-grid applications, offering a sustainable and efficient power solution.

The included 10-ft cable with inline diode and ring terminals simplifies installation, enhances system safety, and ensures compatibility with 24V battery setups. The inline diode prevents reverse current flow at night, protecting your battery and optimizing performance.


Applications:

  • Remote Monitoring Systems: Powers security cameras, sensors, and weather stations.
  • Communication Systems: Reliable energy for radios, satellite phones, and repeater stations.
  • Agricultural Use: Operates pest deterrents, electric fences, and irrigation controllers.
  • Marine Equipment: Ideal for powering small devices in coastal or marine environments.
  • Portable and Emergency Power: Lightweight design makes it perfect for camping or emergency power needs.

Technical Specifications:

Specification Details
Model ST-20P-24-R
Maximum Power (Pmax) 20W
Voltage at Pmax (Vmp) 37.05V
Current at Pmax (Imp) 0.54A
Open-Circuit Voltage (Voc) 42.74V
Short-Circuit Current (Isc) 0.57A
Module Efficiency 20%
Operating Temperature Range -40°C to 85°C
Maximum System Voltage 1000V DC
Power Tolerance ±5%
Dimensions 15.94 x 14.17 x 1.18 inches (405 x 360 x 30 mm)
Weight 4.13 lbs (1.87 kg)
Frame Material Anodized Aluminum
Glass Type High-Transparency, Low-Iron Tempered Glass
Cable Length 10 ft (3.05 m)
Connector Type 3/8-inch ring terminal
Diode Rating 3A inline diode for reverse current protection
Wind Load Resistance Up to 2400 Pa
Snow Load Resistance Up to 5400 Pa
Junction Box Rating IP68 (Water and Dust Resistant)
Certifications CE, TUV, RoHS
Warranty 25-Year Limited Power Output Warranty

Additional Features:

  • Salt Mist Resistance: Built to endure marine and coastal conditions.
  • PID Resistance: Ensures long-term reliability and minimizes power degradation.
  • Enhanced Low-Light Performance: Maintains output during cloudy or shaded conditions.
  • Self-Cleaning Coating: Reduces dust accumulation, improving energy capture and minimizing maintenance.
  • Portable and Durable Design: Perfect for mobile setups, camping, and emergency situations.

The SLD Tech ST-20P-24-R 20-Watt Monocrystalline Solar Panel Kit delivers efficiency, reliability, and durability for small-scale 24V off-grid applications. With its comprehensive features and robust construction, this panel is a dependable choice for diverse energy needs in challenging environments.
