Description

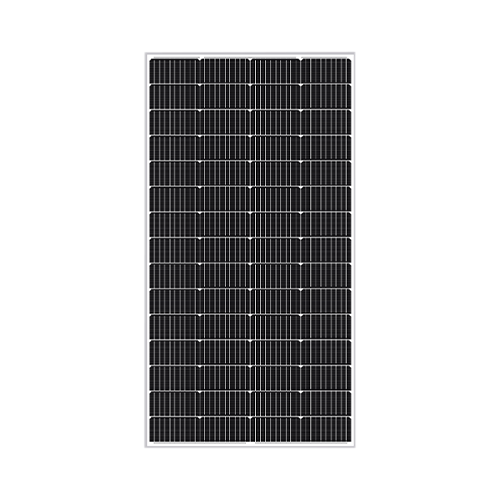

SLD Tech (Solarland) ST-180P-24: 180-Watt 24V Monocrystalline Solar Panel for Off-Grid Solutions
The SLD Tech ST-180P-24 solar panel combines advanced monocrystalline technology with a durable design to deliver efficient and reliable energy. Perfect for off-grid applications, it is suitable for powering telecommunications equipment, RVs, marine systems, and more.
Key Features:
- High Efficiency: Monocrystalline cells with 20% efficiency ensure optimal power output even in low-light conditions.
- Durable Build: Features a corrosion-resistant anodized aluminum frame and tempered glass for long-lasting performance against environmental elements.
- Versatile Applications: 24V nominal output supports a variety of setups, including safety systems, remote monitoring, marine installations, and recreational vehicles.
- Low-Light Optimization: Consistently delivers energy in overcast conditions, maximizing energy harvest throughout the day.
- Professional Appearance: A sleek silver frame and white backsheet blend seamlessly into residential, commercial, and industrial setups.
Product Overview
The SLD Tech ST-180P-24 is engineered to deliver superior performance and durability. Its monocrystalline silicon cells are designed for high energy conversion and long-term reliability, making it a top choice for those seeking dependable solar power in off-grid environments.
The panel's rugged construction includes a heavy-duty anodized aluminum frame and high-transparency tempered glass, allowing it to withstand heavy snow loads, hail, and high wind pressures. Its salt mist corrosion resistance also makes it ideal for marine or coastal installations.
One of its standout features is exceptional low-light performance, which ensures consistent energy generation even during cloudy weather or shaded conditions. This capability, combined with a nominal 24V DC output, makes the ST-180P-24 highly adaptable to various applications.
Applications
- Off-Grid Systems: Reliable power for cabins, security systems, and remote monitoring stations.
- Marine Installations: Resistant to salt mist corrosion, making it ideal for boats and coastal applications.
- RVs and Campers: A dependable energy source for long trips and off-grid adventures.
- Telecommunications: Powers critical communication equipment in remote locations.
- Commercial and Residential Use: Suitable for rooftops, sheds, or ground-mounted systems.
Specifications
| Specification | Details |
|---|---|
| Model | ST-180P-24 |
| Maximum Power Output (Pmax) | 180W |
| Voltage at Pmax (Vmp) | 36.68V |
| Current at Pmax (Imp) | 4.91A |
| Open-Circuit Voltage (Voc) | 43.14V |
| Short-Circuit Current (Isc) | 5.24A |
| Module Efficiency | 20% |
| Cell Type | Monocrystalline |
| Number of Cells | 64 (4x16 configuration) |
| Dimensions | 1275mm x 765mm x 35mm (50.2in x 30.1in x 1.4in) |
| Weight | 10.48kg (23.1 lbs) |
| Operating Temperature | -40°C to 85°C |
| Maximum System Voltage | 1000V DC |
| Power Tolerance | ±5% |
| Frame Material | Anodized Aluminum |
| Glass Type | High-Transparency Low-Iron Tempered Glass |
| Cable Length | 900mm |
| Connector Type | MC4 Compatible |
| Salt Mist Resistance | Yes |
| Mechanical Load | 5400 Pa |
| Fire Safety Class | Class C |
Why Choose the SLD Tech ST-180P-24?
This panel combines efficiency, durability, and versatility to power your off-grid energy systems reliably. Whether you're embarking on outdoor adventures, managing industrial systems, or outfitting a boat, the ST-180P-24 is a trusted energy solution.
