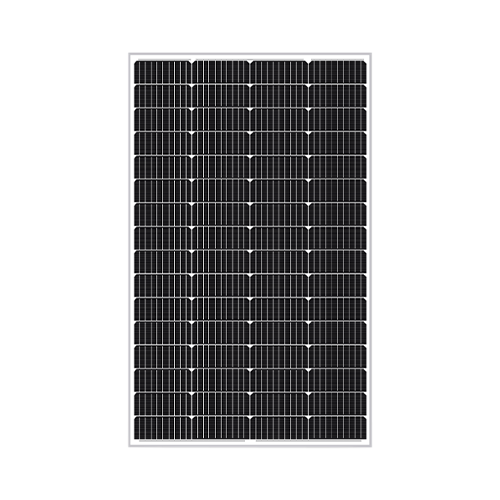

SLD Tech (Solarland)ST-150P-24 150W 24V Monocrystalline Solar Panel
Introducing the SLD Tech ST-150P-24, a 150W 24V monocrystalline solar panel engineered for superior performance in off-grid applications. Whether you're powering remote telecommunications equipment, lighting systems, recreational vehicles, or marine vessels, this panel delivers reliable and efficient energy solutions.
Key Features:
- High Efficiency: Utilizes monocrystalline solar cells with a module efficiency of 20%, ensuring optimal power generation even in low-light conditions.
- Robust Construction: Built with a heavy-duty anodized aluminum frame and high-transparency, low-iron tempered glass, this panel is designed to withstand high wind pressures, hail, and heavy snow loads.
- Positive Power Tolerance: Offers a positive power tolerance of up to +5%, guaranteeing consistent and reliable performance.
- Versatile Application: Ideal for various 24V off-grid setups, including traffic systems, safety equipment, telecommunications, lighting, RVs, and marine applications.
- Durability in Harsh Environments: Engineered to resist salt mist corrosion, making it suitable for coastal and marine environments.
- Weatherproof Design: Features an IP68-rated junction box for superior protection against water and dust ingress.
- Enhanced Low-Light Performance: Designed to perform efficiently during dawn, dusk, and overcast conditions.
Product Overview:
The SLD Tech ST-150P-24 solar panel is a testament to advanced solar technology and meticulous engineering. Its monocrystalline cells are renowned for high efficiency and longevity, ensuring that you harness maximum energy from the sun. The panel's robust design features a heavy-duty anodized aluminum frame and high-transparency, low-iron tempered glass, providing exceptional durability against environmental challenges.
This solar panel excels in low-light conditions, ensuring consistent energy production throughout the day. Its positive power tolerance of up to +5% means you receive more power than the nominal rating, enhancing the overall efficiency of your solar setup.
Designed for versatility, the ST-150P-24 is perfect for a wide range of 24V off-grid applications. Whether you're setting up a solar system for an RV, boat, remote cabin, or industrial equipment, this panel delivers dependable performance. Its resistance to salt mist corrosion further extends its suitability to marine and coastal installations.
Applications:
- Remote Equipment: Power telecommunications, traffic systems, and safety equipment.
- Marine Vessels: Ideal for boats and yachts due to its corrosion-resistant properties.
- Recreational Vehicles (RVs): Supply energy for lighting, appliances, and devices.
- Remote Cabins: Reliable power for off-grid living or backup energy.
- Industrial Use: Supports remote monitoring and industrial equipment in harsh conditions.
Technical Specifications:
| Specification | Details |
|---|---|
| Model | ST-150P-24 |
| Maximum Power (Pmax) | 150W |
| Voltage at Pmax (Vmp) | 37.05V |
| Current at Pmax (Imp) | 4.05A |
| Open-Circuit Voltage (Voc) | 42.74V |
| Short-Circuit Current (Isc) | 4.27A |
| Module Efficiency | 20% |
| Dimensions | 44.88 in x 27.76 in x 1.38 in (1140mm x 705mm x 35mm) |
| Weight | 19.80 lbs (8.98 kg) |
| Operating Temperature Range | -40°C to 85°C |
| Maximum System Voltage | 1000V DC |
| Power Tolerance | ±5% |
| Cell Type | Monocrystalline |
| Number of Cells | 72 |
| Frame Material | Anodized Aluminum |
| Glass Type | High Transparency, Low-Iron Tempered Glass |
| Junction Box Rating | IP68 (Water and Dust Resistant) |
| Connector Type | MC4 Compatible |
| Cable Length | 900mm (35.4 inches) |
| Wind Load Resistance | Up to 2400 Pa |
| Snow Load Resistance | Up to 5400 Pa |
| Certifications | CE, TUV, IEC 61215, RoHS |
| Warranty | 25-Year Limited Power Output Warranty |
Additional Features:
- PID Resistance: Reduces power degradation over time for reliable long-term performance.
- Salt Mist and Ammonia Resistance: Suitable for agricultural and marine environments.
- Self-Cleaning Glass Coating: Minimizes dirt accumulation, enhancing light absorption.
- Temperature Coefficient: High efficiency maintained in extreme temperatures, ideal for hot or cold climates.
- Pre-Drilled Holes: Simplifies installation on various mounts, including Z-brackets, pole mounts, and tilt systems.
The SLD Tech ST-150P-24 150W 24V Monocrystalline Solar Panel is an exceptional solution for off-grid energy systems. Its robust construction, high efficiency, and reliable performance make it a top choice for diverse applications in challenging environments.
