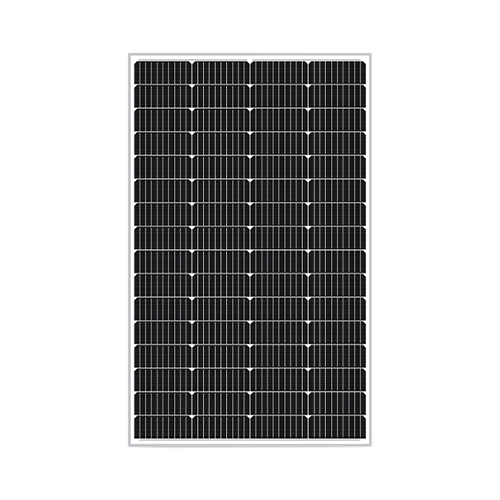

SLD Tech (Solarland) ST-150P-12 150W 12V Monocrystalline Solar Panel
Introducing the SLD Tech ST-150P-12 150W 12V Monocrystalline Solar Panel—your reliable partner for efficient and sustainable energy solutions. Designed with precision and built to endure, this solar panel is ideal for various off-grid applications, including RVs, boats, cabins, and remote power systems.
Key Features:
- High Efficiency: Utilizes advanced monocrystalline technology to achieve a module efficiency of 20%, ensuring optimal energy conversion even in low-light conditions.
- Robust Construction: Equipped with heavy-duty anodized aluminum frames and high-transparency, low-iron tempered glass, this panel is engineered to withstand high wind pressures, hail, and heavy snow, ensuring durability in diverse environments.
- Outstanding Low-Light Performance: Designed to perform efficiently during dawn, dusk, and overcast days, maximizing energy harvest throughout the day.
- Salt Mist Corrosion Resistance: Certified to resist salt mist corrosion, making it suitable for marine and coastal applications.
- Positive Power Tolerance: Offers a positive power tolerance of up to +5%, ensuring you receive the power output you expect or more.
- Weatherproof Design: IP68-rated junction box and MC4-compatible connectors provide reliable performance in outdoor environments.
- Pre-Drilled Mounting Holes: Simplifies installation with compatibility for standard mounts, brackets, and racks.
Product Overview:
The SLD Tech ST-150P-12 solar panel is meticulously crafted to deliver reliable power in off-grid settings. Its monocrystalline silicon cells are known for superior efficiency and longevity, providing a dependable energy source for your needs. The panel's robust design ensures it can endure harsh weather conditions, making it a versatile choice for various applications.
Applications:
- Recreational Vehicles (RVs): Power your adventures with a consistent and renewable energy source, reducing reliance on traditional power supplies.
- Marine Vessels: Ideal for boats and yachts, especially in saltwater environments, due to its corrosion-resistant properties.
- Remote Cabins: Supply electricity to off-grid cabins, ensuring comfort and functionality without the need for a traditional power grid.
- Emergency Backup Systems: Serve as a reliable backup power source during outages, keeping essential devices operational.
- Telecommunications and Monitoring Systems: Reliable energy for remote equipment, ensuring uninterrupted operation.
Technical Specifications:
| Specification | Details |
|---|---|
| Model | ST-150P-12 |
| Maximum Power (Pmax) | 150W |
| Voltage at Pmax (Vmp) | 18.34V |
| Current at Pmax (Imp) | 8.18A |
| Open-Circuit Voltage (Voc) | 21.57V |
| Short-Circuit Current (Isc) | 8.73A |
| Module Efficiency | 20% |
| Dimensions | 44.88 in x 27.76 in x 1.38 in (1140mm x 705mm x 35mm) |
| Weight | 19.80 lbs (8.98 kg) |
| Operating Temperature Range | -40°C to 85°C |
| Maximum System Voltage | 1000V DC |
| Power Tolerance | ±5% |
| Cell Type | Monocrystalline |
| Number of Cells | 36 |
| Frame Material | Anodized Aluminum |
| Glass Type | High-Transparency, Low-Iron Tempered Glass |
| Junction Box Rating | IP68 (Water and Dust Resistant) |
| Connector Type | MC4 Compatible |
| Cable Length | 35.4 inches (900mm) |
| Wind Load Resistance | Up to 2400 Pa |
| Snow Load Resistance | Up to 5400 Pa |
| Certifications | CE, TUV, IEC 61215, RoHS |
| Warranty | 25-Year Limited Power Output Warranty |
Additional Features:
- PID Resistance: Reduces potential power degradation, ensuring long-term reliability.
- Enhanced Low-Light Performance: Captures energy even on overcast days or in shaded areas.
- Temperature Coefficient: Maintains high efficiency in extreme temperatures, ideal for hot and cold climates.
- Self-Cleaning Glass Coating: Minimizes dust and dirt accumulation, improving light absorption.
- Easy Maintenance: Durable materials and low-maintenance design reduce operational overhead.
The SLD Tech ST-150P-12 150W 12V Monocrystalline Solar Panel is an outstanding choice for off-grid energy systems, combining efficiency, durability, and versatility. Its advanced features and robust design ensure reliable performance in diverse environments, making it a dependable solution for your renewable energy needs.
