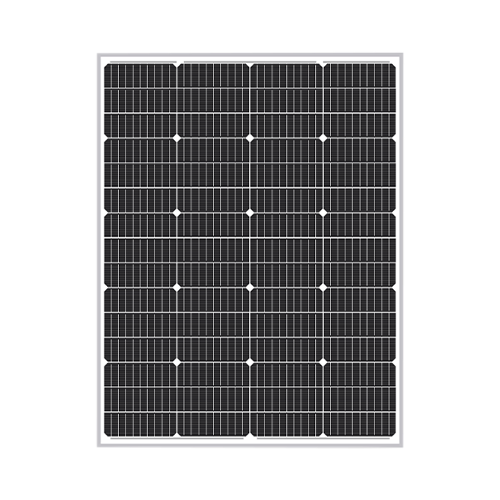

SLD Tech (Solarland) ST-120P-24 120-Watt Monocrystalline Solar Panel
Introducing the SLD Tech ST-120P-24, a 120-watt monocrystalline solar panel engineered for optimal performance in 24V off-grid applications. Whether you're powering remote equipment, RVs, marine vessels, or standalone systems, this panel delivers reliable and efficient energy solutions.
Key Features:
- High Efficiency: Utilizes advanced monocrystalline cells achieving up to 20% module efficiency, ensuring maximum power output even in limited space.
- Robust Construction: Built with a heavy-duty anodized aluminum frame and high-transparency, low-iron tempered glass, designed to withstand high wind pressures, hail, and heavy snow.
- Outstanding Low-Light Performance: Engineered to perform efficiently in low-light conditions, providing consistent energy production throughout the day.
- Positive Power Tolerance: Guaranteed power output with a positive tolerance of 0 to +5%, ensuring you receive the power you pay for.
- Versatile Application: Ideal for various 24V DC off-grid applications, including traffic systems, telecommunications, lighting, RVs, and marine equipment.
- Weatherproof Design: IP68-rated junction box for enhanced protection against water and dust ingress.
- Enhanced Durability: Corrosion-resistant materials make this panel suitable for coastal and marine environments.
Product Overview:
The SLD Tech ST-120P-24 solar panel is meticulously crafted to meet the demands of diverse off-grid applications. Its high-efficiency monocrystalline cells are encapsulated within a durable frame, ensuring longevity and consistent performance. The panel's design emphasizes both functionality and aesthetics, making it a suitable addition to any setup.
One of the standout features of the ST-120P-24 is its exceptional performance in low-light conditions. This capability ensures that your energy needs are met even during overcast days or early morning hours. Additionally, the panel's construction includes high-transparency, low-iron tempered glass, which not only protects the cells but also enhances light absorption, contributing to higher energy yields.
Durability is at the forefront of the ST-120P-24's design. The heavy-duty anodized aluminum frame provides structural integrity, allowing the panel to withstand environmental challenges such as high wind pressures, hail, and heavy snow. This robust construction ensures that the panel remains operational in various climates and conditions.
The positive power tolerance of 0 to +5% guarantees that each panel delivers at least its rated power, if not more. This assurance means you can trust the ST-120P-24 to provide the energy output you expect, enhancing the reliability of your off-grid power system.
Versatility is another hallmark of the ST-120P-24. Its 24V DC output makes it compatible with a wide range of off-grid applications, from powering remote monitoring equipment to serving as a primary energy source for RVs and marine vessels. This flexibility allows you to tailor your energy solutions to your specific needs.
Technical Specifications:
| Specification | Details |
|---|---|
| Model | ST-120P-24 |
| Maximum Power (Pmax) | 120W |
| Voltage at Pmax (Vmp) | 34.74V |
| Current at Pmax (Imp) | 3.46A |
| Open-Circuit Voltage (Voc) | 40.07V |
| Short-Circuit Current (Isc) | 3.65A |
| Module Efficiency | 20% |
| Dimensions | 35.83 in x 27.76 in x 1.38 in (910mm x 705mm x 35mm) |
| Weight | 16.04 lbs (7.27 kg) |
| Operating Temperature Range | -40°C to 85°C |
| Maximum System Voltage | 1000V DC |
| Power Tolerance | 0 to +5% |
| Cell Type | Monocrystalline |
| Number of Cells | 60 |
| Frame Material | Anodized Aluminum |
| Glass Type | High Transparency, Low-Iron Tempered Glass |
| Junction Box Rating | IP68 (Water and Dust Resistant) |
| Connector Type | MC4 Compatible |
| Cable Length | 900mm (35.4 inches) |
| Wind Load Resistance | Up to 2400 Pa |
| Snow Load Resistance | Up to 5400 Pa |
| Certifications | CE, TUV, IEC 61215, RoHS |
| Warranty | 25-Year Limited Power Output Warranty |
Additional Features:
- PID Resistance: Ensures minimal power degradation over time, providing reliable long-term performance.
- Salt Mist and Ammonia Resistance: Perfect for coastal or agricultural installations.
- Self-Cleaning Glass Coating: Minimizes dust accumulation and improves light absorption for enhanced performance.
- Temperature Coefficient: Maintains efficiency even in extreme heat, suitable for hot climates.
- Pre-Drilled Mounting Holes: Compatible with standard brackets and mounting systems for easy installation.
The SLD Tech ST-120P-24 120-Watt Monocrystalline Solar Panel is a robust, efficient, and versatile solution for off-grid energy systems. Its advanced features, durable construction, and reliable performance make it the perfect choice for both residential and commercial applications.
