Description

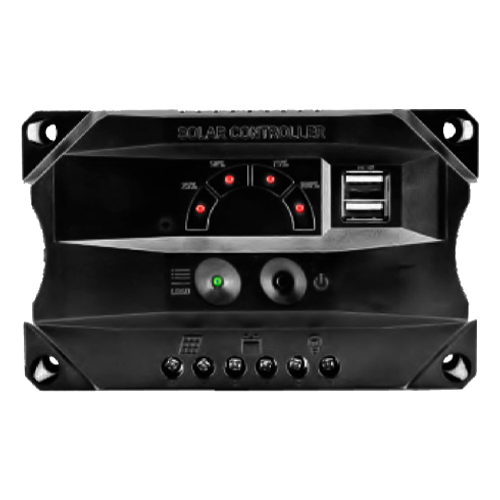

SLD Tech (Solarland) NR Series SLC-NR2410D 10A 12/24VDC PWM Solar Charge Controller with USB Charger
The SLD Tech SLC-NR2410D is a compact, efficient, and reliable solar charge controller designed to manage small-scale solar systems. Featuring advanced PWM technology, automatic voltage detection, and integrated USB charging, this controller is ideal for RVs, boats, off-grid systems, and remote setups.
Key Features
- High-Efficiency PWM Charging: Improves charging efficiency by 3%–6%, reducing energy loss and extending battery life.
- Automatic Voltage Detection: Detects and adjusts automatically to 12V or 24V battery systems, ensuring compatibility with various setups.
- Comprehensive Protection: Safeguards against overcharging, over-discharging, overloads, short circuits, and reverse polarity connections.
- User-Friendly LED Indicators: Provides real-time status updates on battery capacity, system load, and charging status for easy monitoring.
- Integrated USB Port: Includes a 5V/1A USB charger for direct charging of mobile devices, offering added versatility.
- Compact Design: Lightweight and easy to install, making it a great choice for portable and small-scale solar applications.
Product Overview
The SLD Tech SLC-NR2410D combines efficient energy management with robust safety features to optimize your solar power system. Its advanced PWM algorithm enhances charging efficiency, protecting batteries from overcharging and excessive discharge. The automatic voltage detection ensures seamless operation across both 12V and 24V systems, simplifying installation.
This controller is equipped with multiple safety mechanisms, reducing the risk of damage to batteries and connected devices. Real-time monitoring is made easy with the intuitive LED indicators, which provide clear feedback on system performance. The integrated USB port offers the convenience of charging mobile devices directly from the controller, making it versatile for various off-grid scenarios.
Applications
- Recreational Vehicles (RVs): Powers onboard systems while protecting batteries from overcharging or excessive discharge.
- Boats and Marine Systems: Efficiently manages solar energy in remote or off-grid marine setups.
- Off-Grid Installations: Ideal for cabins, small homes, or other remote locations where solar energy is the primary power source.
- Portable Solar Systems: Lightweight design makes it suitable for portable setups like camping or emergency systems.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | SLC-NR2410D |
| Rated Current | 10A |
| System Voltage | 12V/24V Auto Detection |
| No-Load Loss | 12.5mA (12V), 14.5mA (24V) |
| Charging Mode | PWM |
| Float Charging Voltage | 13.8V (12V), 27.6V (24V) |
| Absorption Charging Voltage | 14.4V (12V), 28.8V (24V) |
| Low Voltage Protection | 10.8V (12V), 21.6V (24V) |
| Low Voltage Reconnecting | 12.6V (12V), 25.2V (24V) |
| USB Output | 5V/1A |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +60°C |
| Ingress Protection | IP30 |
| Dimensions (L × W × H) | 130×75×38 mm |
| Weight | 172g |
| Humidity | ≤90% (non-condensing) |
| Temperature Compensation | -4mV/°C/2V |
| Battery Types Supported | GEL, AGM, Lead-Acid, and user-defined |
Why Choose SLD Tech SLC-NR2410D?
The SLD Tech SLC-NR2410D stands out for its combination of efficient charging, safety features, and user-friendly design. Whether you're managing a small off-grid system or powering portable devices, this controller offers reliable energy management with enhanced battery protection.
