Description

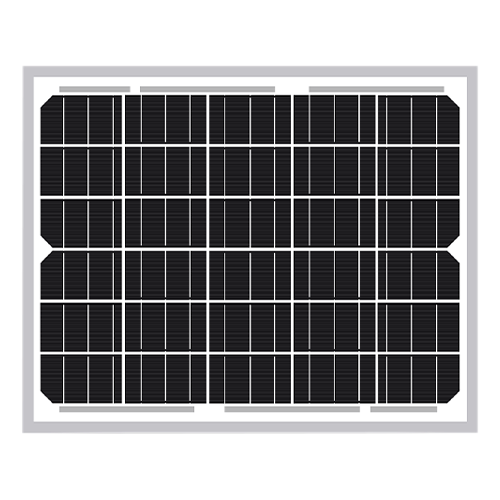

Introducing the SLD Tech ST-10R-12, a compact, high-efficiency 10-watt monocrystalline solar panel designed to meet your off-grid energy needs. Whether you're powering security systems, communication devices, or remote monitoring equipment, this panel offers reliable performance in a durable, easy-to-install package.
Key Features:
- High Efficiency: Utilizes monocrystalline cells with a 20% efficiency rate, ensuring optimal power generation even in low-light conditions.
- Durable Construction: Built with a heavy-duty anodized aluminum frame and high-transparency, low-iron tempered glass to withstand harsh environmental conditions, including high wind pressures, hail, and heavy snow.
- Compact and Lightweight: Measuring 9.84" x 12.20" x 1.18" and weighing just 2.41 lbs, this panel is easy to handle and install in various settings.
- Versatile Applications: Ideal for 12V off-grid systems such as security monitoring, communication setups, and pest control devices.
- Reliable Performance: Designed to deliver consistent energy output, ensuring your devices remain powered in remote locations.
- Pre-Drilled Mounting Holes: Simplifies installation with pre-drilled holes compatible with most mounting systems.
Product Overview:
The SLD Tech ST-10R-12Â solar panel is engineered to provide dependable power for a range of off-grid applications. Its monocrystalline cells achieve a 20% efficiency rate, maximizing energy capture from sunlight. The robust anodized aluminum frame and tempered glass construction offer resilience against environmental challenges, ensuring longevity and sustained performance.
This panel's compact dimensions and lightweight design facilitate straightforward installation, making it suitable for both permanent setups and portable uses. Whether you're setting up a remote security camera, a communication relay station, or a pest deterrent system, the ST-10R-12Â delivers the power you need with minimal maintenance.
Key Specifications:
| Specification | Details |
|---|---|
| Model Number | ST-10R-12 |
| Manufacturer | SLD Tech (formerly Solarland) |
| Cell Type | Monocrystalline silicon |
| Number of Cells | 30 cells (5×6 configuration) |
| Maximum Power (Pmax) | 10W |
| Module Efficiency | 21.1% |
| Voltage at Pmax (Vmp) | 17.2V |
| Current at Pmax (Imp) | 0.59A |
| Open-Circuit Voltage (Voc) | 20.3V |
| Short-Circuit Current (Isc) | 0.62A |
| Nominal System Voltage | 12V DC |
| Power Tolerance | 0 to +3% (positive only) |
| Operating Temperature | -40°C to 85°C (-40°F to 185°F) |
| Maximum System Voltage | 1000V DC |
| Temperature Coefficient (Voc) | -(80±10) mV/°C |
| Temperature Coefficient (Isc) | (0.065±0.015) %/°C |
| Temperature Coefficient (Pmax) | -(0.5±0.05) %/°C |
| NOCT | 47±2°C (at Air 20°C, Sun 0.8kW/m², wind 1m/s) |
| Wind Load (negative) | 2400 Pa |
| Snow Load (positive) | 5400 Pa |
| Module Dimensions | 9.84" × 12.2" × 1.18" (250mm × 310mm × 30mm) |
| Weight | 2.41 lb (1.09 kg) |
| Frame Material | Heavy-duty anodized aluminum |
| Glass | High-transparency, low-iron tempered glass |
| Junction Box | Weather-sealed with bypass diodes |
| Carton Dimensions | 15.75" × 13.39" × 11.02" (400mm × 340mm × 280mm) |
| Packing | 10 units per carton |
| PID Resistance | High (advanced cell technology) |
| Salt Mist Resistance | IEC 61701 certified |
| Cable Kit Option (SLCBL-55) | 10ft 18/2 AWG cable with 3A inline diode & 3/8" ring terminals |
| Product Workmanship Warranty | 5 years |
| Power Output Warranty | 10 years (linear: 97% @ 5yr, 90% @ 10yr, 80.68% @ 25yr) |
| Typical Applications | Battery maintainers, remote sensors, gate operators, small water pumps, LED lighting, telecommunications backup, RV/marine trickle charging, portable power, security systems, trail cameras |
