Description

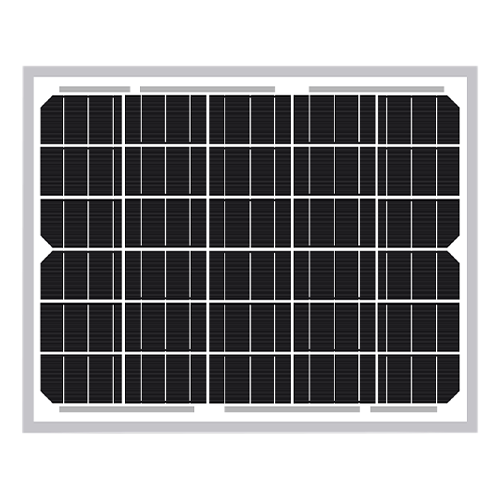

Introducing the SLD Tech ST-10R-12R 10-Watt 12V Monocrystalline Solar Panel Kit—a compact and efficient solution for your off-grid energy needs. Whether you're powering security systems, communication devices, or small appliances, this solar panel offers reliable performance in a durable design.
Key Features:
- High Efficiency: Utilizes monocrystalline solar cells with a 20% efficiency rate, ensuring optimal power generation even in low-light conditions.
- Robust Construction: Built with a heavy-duty anodized aluminum frame and high-transparency, low-iron tempered glass, this panel is designed to withstand harsh weather conditions, including high winds, hail, and heavy snow.
- Compact and Lightweight: Measuring 9.84 inches by 12.20 inches and weighing just 2.41 pounds, the panel is easy to handle and install, making it ideal for portable applications.
- Versatile Applications: Perfect for 12V off-grid systems such as security monitoring, communication setups, and pest control devices.
- Long-Term Reliability: Backed by a 2-year limited warranty on materials and workmanship, a 10-year warranty for 90% power output, and a 25-year warranty for 80% power output, ensuring peace of mind for years to come.
- Plug-and-Play Connections: Includes pre-installed MC4-compatible connectors for quick and secure installations.
- Weatherproof Junction Box: Rated IP68 for superior resistance to water and dust, ensuring reliable connections in outdoor environments.
Product Overview:
The SLD Tech ST-10R-12-R solar panel is engineered to deliver dependable power in a variety of off-grid scenarios. Its monocrystalline cells are known for high efficiency and longevity, providing consistent energy output. The panel's sturdy construction includes a corrosion-resistant aluminum frame and tempered glass, offering durability against environmental challenges.
This kit is designed for both permanent and portable installations, with pre-drilled mounting holes compatible with standard brackets and racks. The included specialized junction box ensures secure and efficient connections, while its excellent low-light performance makes it a versatile choice for diverse applications, from remote monitoring systems to backup power solutions.
Key Specifications:
| Specification | Details |
|---|---|
| Model Number | ST-10R-12 |
| Manufacturer | SLD Tech (formerly Solarland) |
| Cell Type | Monocrystalline silicon |
| Number of Cells | 30 cells (5×6 configuration) |
| Maximum Power (Pmax) | 10W |
| Module Efficiency | 21.1% |
| Voltage at Pmax (Vmp) | 17.2V |
| Current at Pmax (Imp) | 0.59A |
| Open-Circuit Voltage (Voc) | 20.3V |
| Short-Circuit Current (Isc) | 0.62A |
| Nominal System Voltage | 12V DC |
| Power Tolerance | 0 to +3% (positive only) |
| Operating Temperature | -40°C to 85°C (-40°F to 185°F) |
| Maximum System Voltage | 1000V DC |
| Temperature Coefficient (Voc) | -(80±10) mV/°C |
| Temperature Coefficient (Isc) | (0.065±0.015) %/°C |
| Temperature Coefficient (Pmax) | -(0.5±0.05) %/°C |
| NOCT | 47±2°C (at Air 20°C, Sun 0.8kW/m², wind 1m/s) |
| Wind Load (negative) | 2400 Pa |
| Snow Load (positive) | 5400 Pa |
| Module Dimensions | 9.84" × 12.2" × 1.18" (250mm × 310mm × 30mm) |
| Weight | 2.41 lb (1.09 kg) |
| Frame Material | Heavy-duty anodized aluminum |
| Glass | High-transparency, low-iron tempered glass |
| Junction Box | Weather-sealed with bypass diodes |
| Carton Dimensions | 15.75" × 13.39" × 11.02" (400mm × 340mm × 280mm) |
| Packing | 10 units per carton |
| PID Resistance | High (advanced cell technology) |
| Salt Mist Resistance | IEC 61701 certified |
| Cable Kit Option (SLCBL-55) | 10ft 18/2 AWG cable with 3A inline diode & 3/8" ring terminals |
| Product Workmanship Warranty | 5 years |
| Power Output Warranty | 10 years (linear: 97% @ 5yr, 90% @ 10yr, 80.68% @ 25yr) |
| Typical Applications | Battery maintainers, remote sensors, gate operators, small water pumps, LED lighting, telecommunications backup, RV/marine trickle charging, portable power, security systems, trail cameras |
