Description

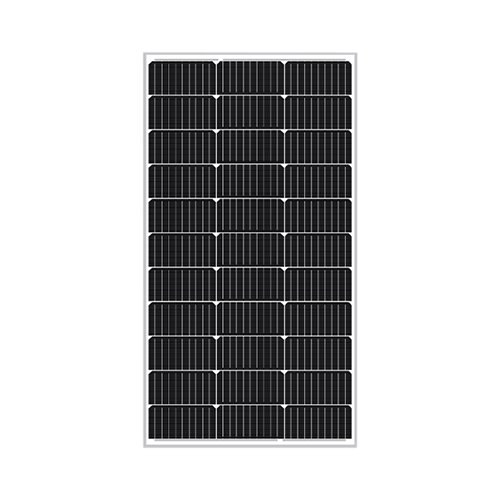

SLD Tech (Solarland) ST-100P-12 100-Watt Monocrystalline Solar Panel
Introducing the SLD Tech ST-100P-12, a 100-watt monocrystalline solar panel engineered for optimal performance in 12V off-grid applications. Whether you're powering traffic systems, telecommunications equipment, lighting solutions, recreational vehicles, or marine setups, this panel delivers reliable and efficient energy.
Key Features:
- High Efficiency: Utilizes monocrystalline cells with a 20% efficiency rate, ensuring maximum power output even in low-light conditions.
- Robust Construction: Built with a sturdy aluminum frame and reinforced back plate, designed to withstand harsh weather conditions, including high wind pressures, hail, and heavy snow.
- Compact and Lightweight: Weighing just 13.29 lbs and measuring 38.58" x 20.87" x 1.38", this panel is easy to handle and install in various settings.
- Versatile Application: Ideal for a range of 12V off-grid applications such as traffic systems, telecommunications, lighting, RVs, and marine equipment.
- Durable Design: Features a specialized junction box and is resistant to salt mist corrosion, ensuring longevity and reliability in diverse environments.
- Pre-Drilled Mounting Holes: Simplifies installation with pre-drilled holes compatible with various mounting brackets and systems.
- Optimized Performance in Harsh Conditions: Anti-reflective tempered glass and PID-resistant cells maintain high output in extreme temperatures or shaded environments.
Product Overview:
The SLD Tech ST-100P-12 solar panel is crafted with high-efficiency monocrystalline cells, offering a 20% module efficiency. This ensures optimal energy conversion, making it a dependable choice for various off-grid applications. Its robust aluminum frame and reinforced back plate are engineered to endure extreme weather conditions, providing consistent power output regardless of environmental challenges.
Designed for versatility, this panel is suitable for numerous 12V applications, including traffic systems, telecommunications, lighting, recreational vehicles, and marine equipment. Its lightweight and compact design facilitate easy installation, while the durable construction guarantees long-term performance.
Specifications:
| Specification | Details |
|---|---|
| Model | ST-100P-12 |
| Maximum Power (Pmax) | 100 Watts |
| Voltage at Pmax (Vmp) | 19.11 Volts |
| Current at Pmax (Imp) | 5.24 Amps |
| Open-Circuit Voltage (Voc) | 22.04 Volts |
| Short-Circuit Current (Isc) | 5.53 Amps |
| Module Efficiency | 20% |
| Dimensions | 38.58" x 20.87" x 1.38" (980mm x 530mm x 35mm) |
| Weight | 13.29 lbs (6.03 kg) |
| Operating Temperature | -40°C to 85°C |
| Maximum System Voltage | 1000V DC |
| Power Tolerance | ±5% |
| Frame Material | Anodized aluminum |
| Glass Type | Tempered glass with anti-reflective coating |
| Connector Type | MC4-compatible |
| Cable Length | 900mm (35.4 inches) |
| Wind Load Resistance | Up to 2400 Pa |
| Snow Load Resistance | Up to 5400 Pa |
| IP Rating (Junction Box) | IP68 for superior water and dust resistance |
| Warranty | 25-Year Performance Warranty |
Additional Features:
- Salt Mist Corrosion Resistance: Suitable for marine and coastal environments, ensuring longevity in salty conditions.
- Enhanced PID Resistance: Minimizes power degradation for consistent performance over time.
- Low-Light Performance: Delivers reliable output even in cloudy or low-sunlight conditions.
- High Temperature Coefficient: Maintains efficiency and output in extreme temperatures, ideal for hot climates.
The SLD Tech ST-100P-12 100-Watt Monocrystalline Solar Panel combines durability, efficiency, and versatility, making it the perfect solution for off-grid energy needs. With its compact design, robust features, and superior performance, this solar panel is a reliable choice for long-term renewable energy generation.
