Description

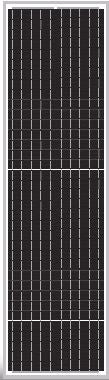

The SLD Tech SLP060-24C is a 60-watt, 72-cell polycrystalline solar panel delivering 17% module efficiency for reliable 24V DC power in off-grid and small-scale renewable energy applications.
Key Features:
- High-Efficiency Polycrystalline Cells: Advanced cell technology and manufacturing capabilities achieve a 17% module efficiency rating with a 3% positive power tolerance.
- High PID Resistance: Qualified materials and advanced cell engineering deliver strong resistance to Potential Induced Degradation for sustained long-term output stability.
- Heavy-Duty Weather-Resistant Construction: Anodized aluminum frame withstands 5,400 Pa positive load and 2,400 Pa negative load, with salt mist resistance per IEC 61701.
- High-Transparency Tempered Glass: Low-iron tempered glass maximizes light transmission while providing outstanding protection against hail, wind pressure, and heavy snow.
- UL 1703 Certified: cULus listed and conforms to UL 1703, backed by a 25-year power output warranty and 2-year product workmanship warranty.
The SLP060-24C is designed for nominal 24V DC output, making it a versatile solution for battery charging, mid-scale off-grid systems, and remote power applications requiring higher voltage. Its outstanding low-light performance ensures consistent energy generation even under reduced irradiance conditions.
Built with 72 polycrystalline silicon cells in a 2x36 configuration, this panel features a slim 0.98-inch profile and an elongated form factor ideal for space-conscious installations. The 11.00 lb design and MC4-compatible connectors make wiring and installation straightforward across a wide range of fixed applications.
With an operating temperature range of -40°C to 65°C and a maximum system voltage of 600V DC, the SLP060-24C is engineered to deliver consistent performance across a broad range of climates and system configurations.
Technical Specifications
| Specification | Details |
|---|---|
| Product Code | 060012411A |
| Weight | 11.00 lbs (4.99 kg) |
| Maximum Power (Pmax) | 60W |
| Module Efficiency | 17% |
| Voltage at Pmax (Vmp) | 37.2V |
| Current at Pmax (Imp) | 1.62A |
| Open-Circuit Voltage (Voc) | 44.6V |
| Short-Circuit Current (Isc) | 1.75A |
| Power Tolerance | ±3% (0~±3%) |
| Temperature Coefficient of Voc | -(80±10) mV/°C |
| Temperature Coefficient of Isc | (0.065±0.015) %/°C |
| Temperature Coefficient of Power | -(0.5±0.05) %/°C |
| NOCT | 47±2°C |
| Operating Temperature | -40°C to 65°C |
| Maximum System Voltage | 600V DC |
| Cell Type | Polycrystalline Silicon |
| Number of Cells | 72 (2 x 36) |
| Module Dimensions | 49.21 x 13.78 x 0.98 in (1250 x 350 x 25 mm) |
| Connector Type | MC4 Compatible (SHIHE DJ2011-4ab) |
| Wind Load | 2,400 Pa |
| Snow Load | 5,400 Pa |
| Certification | cULus, UL 1703 |
| Product Warranty | 2 Years |
| Power Warranty | 25 Years |
