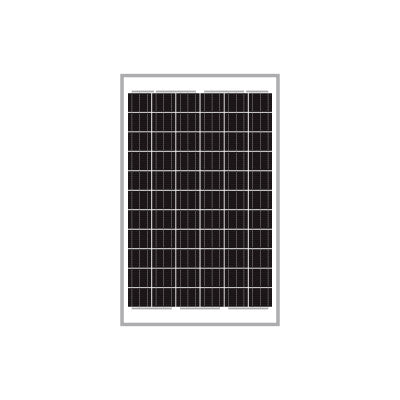

The SLD Tech ST-30R-24 is a 30-watt, 66-cell monocrystalline solar panel delivering 21% module efficiency for reliable 24V DC power in off-grid and small-scale renewable energy applications.
Key Features:
- High-Efficiency Monocrystalline Cells: Advanced cell technology and manufacturing capabilities achieve a 21% module efficiency rating with a 3% positive power tolerance.
- High PID Resistance: Qualified materials and advanced cell engineering deliver strong resistance to Potential Induced Degradation for sustained long-term output stability.
- Heavy-Duty Weather-Resistant Construction: Anodized aluminum frame withstands 5,400 Pa positive load and 2,400 Pa negative load, with salt mist resistance per IEC 61701.
- High-Transparency Tempered Glass: Low-iron tempered glass maximizes light transmission while providing outstanding protection against hail, wind pressure, and heavy snow.
- 10-Year Power Warranty: Backed by a 10-year power output warranty and a 5-year product workmanship warranty for reliable long-term performance assurance.
The ST-30R-24 is designed for nominal 24V DC output, making it an ideal solution for higher-voltage battery charging, mid-scale off-grid systems, and remote power applications. Its outstanding low-light performance ensures consistent energy generation even under reduced irradiance conditions.
Built with 66 monocrystalline silicon cells in a 6x11 configuration, this panel delivers proven efficiency and structural durability in demanding outdoor environments. The lightweight 5.61 lb design and slim 1.18-inch profile make mounting and installation practical across a wide range of fixed and portable applications.
With an operating temperature range of -40°C to 85°C and a maximum system voltage of 1000V DC, the ST-30R-24 is engineered to perform reliably across virtually all climates and system configurations. Its quality aesthetic appearance and anodized frame finish make it a clean, professional addition to any renewable energy installation.
Technical Specifications
| Specification | Details |
|---|---|
| Weight | 5.61 lbs (2.54 kg) |
| Maximum Power (Pmax) | 30W |
| Module Efficiency | 21% |
| Voltage at Pmax (Vmp) | 37.7V |
| Current at Pmax (Imp) | 0.80A |
| Open-Circuit Voltage (Voc) | 44.56V |
| Short-Circuit Current (Isc) | 0.84A |
| Power Tolerance | ±3% (0~±3%) |
| Temperature Coefficient of Voc | -(80±10) mV/°C |
| Temperature Coefficient of Isc | (0.065±0.015) %/°C |
| Temperature Coefficient of Power | -(0.5±0.05) %/°C |
| NOCT | 47±2°C |
| Operating Temperature | -40°C to 85°C |
| Maximum System Voltage | 1000V DC |
| Cell Type | Monocrystalline Silicon |
| Number of Cells | 66 (6 x 11) |
| Module Dimensions | 22.44 x 14.17 x 1.18 in (570 x 360 x 30 mm) |
| Wind Load | 2,400 Pa |
| Snow Load | 5,400 Pa |
| Product Warranty | 5 Years |
| Power Warranty | 10 Years |
