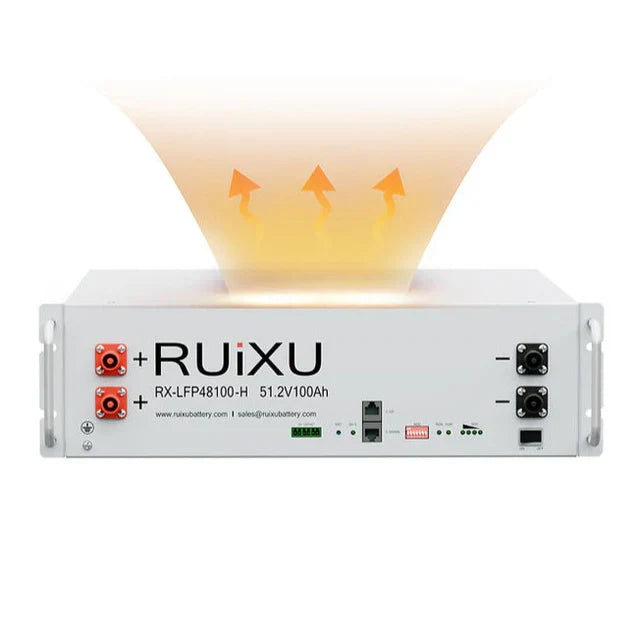

The RX-LFP48100-H builds on the RX-LFP48100 by adding self-heating technology, making it the perfect solution for cold environments where battery performance typically suffers.
Key Features:
-
Cold-Weather Ready: Operates down to -20°C with self-heating.
-
Certified Safety: UL1973, UL9540A, CEC, and SGIP listed.
-
10-Year Warranty: Long service life with thousands of cycles.
-
Rack-Compatible: Scalable server-rack enclosure.
-
High Efficiency: Round-trip efficiency ≥95%.
Product Overview
Cold weather is a major challenge for batteries, but the RX-LFP48100-H ensures steady operation thanks to its built-in heating element. Whether in northern states or off-grid cabins, it guarantees uninterrupted performance, protecting investment and providing peace of mind.
This model inherits the same LiFePO4 chemistry and certifications as the RX-LFP48100, ensuring maximum safety, long cycle life, and compatibility with rebates. The 10-year warranty underscores its reliability, while the modular rack format ensures easy scalability.
Technical Specifications
| Specification | Details |
|---|---|
| Model | RX-LFP48100-H |
| Rated Voltage | 51.2V |
| Rated Capacity | 100Ah (5.12kWh) |
| Chemistry | LiFePO4 |
| Usable Capacity | ~90–95% DoD |
| Cycle Life | 6000+ cycles @ 80% DoD |
| Round-Trip Efficiency | ≥ 95% |
| Special Feature | Self-heating function |
| Self-Heating Range | Operates in sub-zero temps to -20°C |
| Nominal Charge Current | 50A |
| Max Continuous Discharge | 100A |
| Peak Discharge | 120A (≤10 sec) |
| Communication | RS485 / CAN bus |
| Dimensions | ~442 × 410 × 133 mm |
| Weight | ~48–52 kg |
| Enclosure Rating | IP20 |
| Operating Temp | Charge: -20–50°C; Discharge: -20–50°C |
| Storage Temp | -20–60°C |
| Certifications | UL1973, UL9540A, CEC, SGIP |
| Warranty | 10 years |
