Description

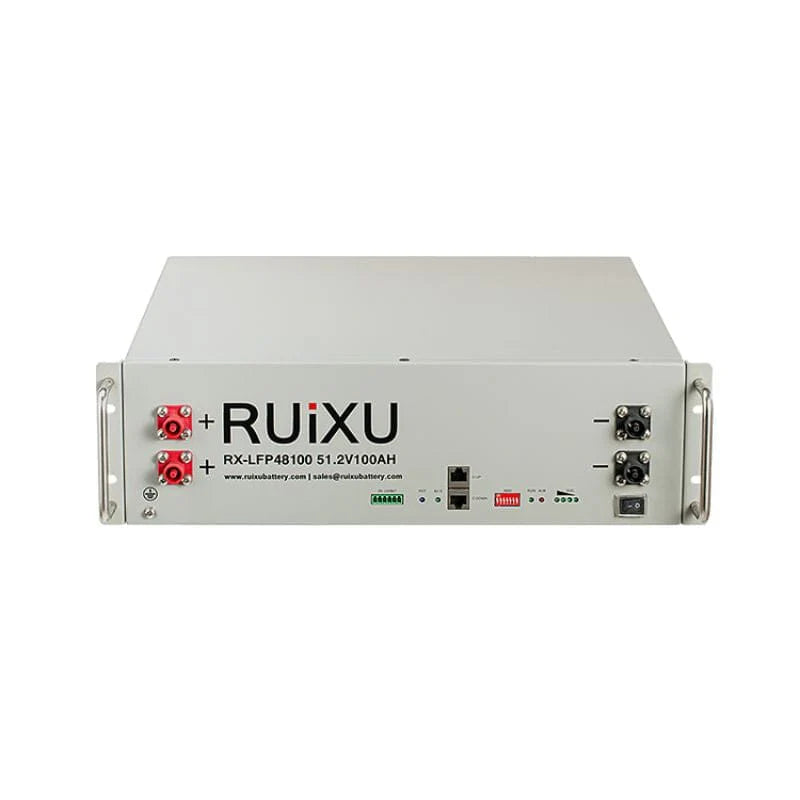

Introducing the RX-LFP48100, a premium lithium iron phosphate (LiFePO4) server rack battery designed for long-term durability, safety, and scalability. With a capacity of 5.12kWh at 51.2V / 100Ah, it is the perfect foundation for residential solar-plus-storage projects, commercial backup systems, and off-grid applications.
Key Features:
-
Proven LiFePO4 Chemistry: Superior safety, cycle life, and thermal stability.
-
Certified for Compliance: UL1973, UL9540A, CEC, and SGIP certifications.
-
Scalable & Modular: Rack-mounted format supports multi-battery systems.
-
Long Warranty: Covered for 10 years of dependable service.
-
High Efficiency: Round-trip efficiency ≥95% ensures maximum ROI.
Product Overview
Built with advanced LiFePO4 chemistry, the RX-LFP48100 minimizes thermal risks while delivering thousands of reliable cycles. Its rack-mounted format makes it simple to expand, ensuring homeowners and businesses can easily scale storage capacity. Installers appreciate its plug-and-play setup, while owners enjoy seamless integration with solar inverters.
Safety and compliance are at the forefront. With UL1973 and UL9540A certification, it meets strict standards for North American markets. Being CEC listed and SGIP approved, it also qualifies for incentive programs that reduce overall project costs.
Its 10-year warranty reflects confidence in performance, ensuring dependable backup power, peak demand reduction, and solar self-consumption for a decade or more.
Technical Specifications
| Specification | Details |
|---|---|
| Model | RX-LFP48100 |
| Rated Voltage | 51.2V |
| Rated Capacity | 100Ah (5.12kWh) |
| Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Usable Capacity | ~90–95% DoD |
| Cycle Life | 6000+ cycles @ 80% DoD |
| Round-Trip Efficiency | ≥ 95% |
| Nominal Charge Current | 50A |
| Max Continuous Discharge | 100A |
| Peak Discharge | 120A (≤10 sec) |
| Communication | RS485 / CAN bus |
| Dimensions | ~442 × 410 × 133 mm (3U rack) |
| Weight | ~45–50 kg |
| Enclosure Rating | IP20 |
| Operating Temp | Charge: 0–50°C; Discharge: -10–50°C |
| Storage Temp | -20–60°C |
| Humidity | 5–95% non-condensing |
| Altitude | ≤2000 m |
| Certifications | UL1973, UL9540A, CEC, SGIP |
| Warranty | 10 years |
