Description

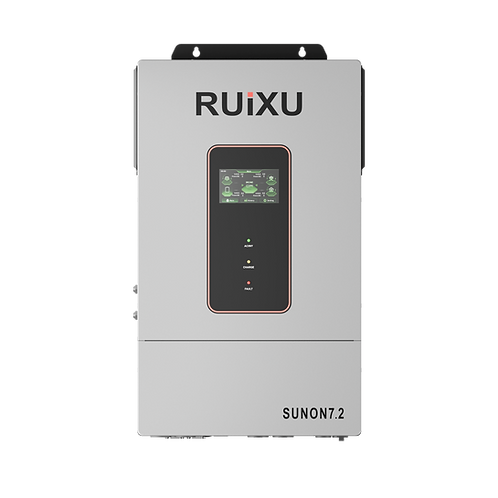

The RUiXU SUNON7.2 is a professional-grade all-in-one off-grid inverter engineered for serious residential and commercial solar energy systems.
Key Features
- Dual MPPT Technology: Two independent MPPT channels deliver 99% tracking efficiency with up to 4,500W per channel for maximum solar harvest.
- 150A Hybrid Charging Capacity: Combines solar and grid charging simultaneously, delivering the fastest possible battery replenishment at any time.
- 120V/240V Flexible Output: Supports both single-phase and split-phase output to power a full range of residential and commercial loads.
- Stackable Parallel Design: Up to 6 units can be stacked for a combined output of 43.2kW, scalable for growing energy demands.
- Rapid Shutdown Compliant: Quickly de-energizes the PV array to protect first responders in emergency situations, meeting UL1741 safety standards.
The SUNON7.2 is built for installations where power capacity and reliability are non-negotiable. Its DSP-controlled pure sine wave output handles sensitive electronics and motor-driven loads with ease, supporting up to 4HP motor startup capability. The intelligent time-sharing charge and discharge function allows users to program energy usage around time-of-use electricity rates, cutting operating costs significantly.
Monitoring and system management are effortless with built-in WiFi and app integration, giving users real-time visibility into power flow, battery status, and system performance from anywhere. The color touchscreen display provides intuitive on-site control, while RS485, CAN, and USB communication ports ensure seamless BMS and third-party integration.
Certified to UL1741 and FCC Part 15 Class B standards, the SUNON7.2 is a dependable long-term investment backed by comprehensive protection functions including short circuit, overload, over/undervoltage, overheat, and PV reverse polarity protection — all housed in a robust IP20-rated enclosure designed for indoor installation.
Technical Specification
| Specification | Value |
|---|---|
| Rated Output Power | 7,200W |
| Max Output Power | 10,800VA |
| Rated Output Voltage | 120/240VAC (Single-Phase / Split-Phase) |
| Output Waveform | Pure Sine Wave |
| Rated Frequency | 50/60Hz |
| Switching Time | 10ms (Typical) |
| Motor Load Capability | 4HP |
| Rated Battery Voltage | 48V |
| Battery Voltage Range | 40 – 60VDC |
| Battery Type | Lithium-Ion / Lead-Acid / User-Defined |
| Max Solar Charging Current | 150A |
| Max Grid/Generator Charging Current | 120A |
| Max Hybrid Charge Current | 150A |
| Number of MPPT Channels | 2 |
| Max PV Input Power | 4,500W + 4,500W |
| Max PV Input Current | 16A + 16A |
| Max PV Open Circuit Voltage | 500VDC |
| MPPT Voltage Range | 90 – 450VDC |
| MPPT Tracking Efficiency | 99% |
| Max Inverter Efficiency | 92% |
| AC Input Voltage Range | 85 – 140VAC |
| AC Input Frequency Range | 50/60Hz |
| Bypass Overload Current | 50A |
| Parallel Capacity | 1 – 6 Units (3-Phase with 2+ Units) |
| Communication Interface | RS485 / CAN / USB / Dry Contact |
| External Module (Optional) | WiFi / GPRS |
| Certification | UL1741 / FCC Part 15 Class B |
| Operating Temperature | -10°C to 55°C (Derate above 45°C) |
| Protection Degree | IP20 (Indoor Only) |
| Noise Level | <60dB |
| Cooling Method | Intelligent Fan |
| Dimensions (L×W×D) | 580 × 409 × 127mm (22.83 × 16.1 × 5 in) |
| Weight | 42.77 lbs (19.4 kg) |
| Warranty | 3 Years |
