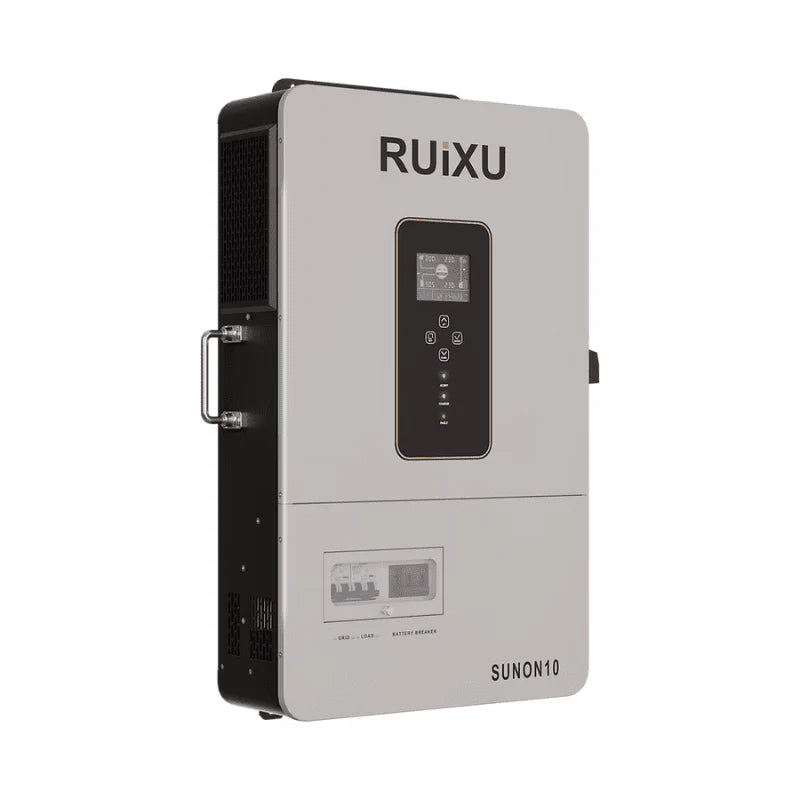

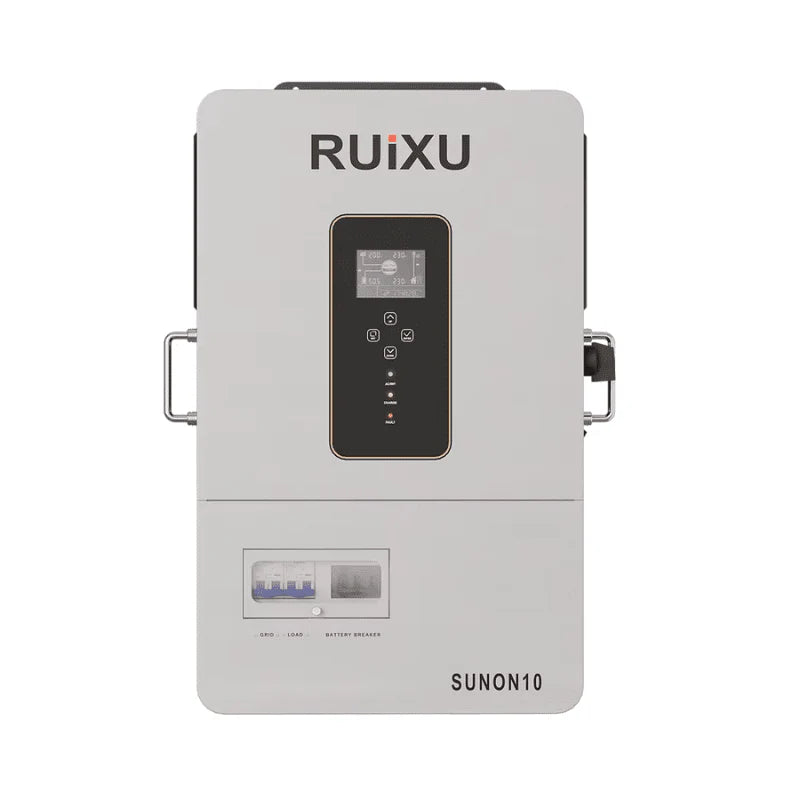

Description
The RUiXU SUNON10 is designed for independence, providing 10kW of off-grid power with flexible single or split-phase output. Built for cabins, remote homes, and backup systems, it guarantees steady performance when the grid is unavailable.
Key Features:
-
10kW Output: Power for off-grid homes and businesses.
-
Flexible Phase Options: Single or split-phase operation.
-
Certified Safety: UL1741 compliant.
-
Durable Build: Rugged design for long-term off-grid use.
-
High Efficiency: Up to 97% efficiency with dual MPPT.
Product Overview
Off-grid living demands reliability, and the SUNON10 delivers. With its 10kW capacity and dual MPPT input, it manages solar efficiently while delivering continuous, safe power. Built to withstand diverse environments, it is IP65-rated for outdoor use.
Ideal for rural homes, cabins, or standalone microgrids, the SUNON10 ensures dependable power with UL1741 certification and long-term durability.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SUNON10 |
| Rated Output Power | 10kW |
| Output Voltage | 120/240V AC (single/split-phase) |
| Battery Voltage | 48V nominal |
| PV Input Voltage | ~120–500V |
| Max PV Input Power | ~12kW |
| MPPT Trackers | Dual |
| Max Efficiency | 96–97% |
| Surge Capacity | 2× rated (10 sec) |
| Communication | RS485 / CAN / WiFi option |
| Dimensions | ~540 × 420 × 220 mm |
| Weight | ~30–35 kg |
| Enclosure Rating | IP65 |
| Cooling | Intelligent fan |
| Operating Temp | -20–60°C |
| Certification | UL1741 |
| Warranty | 5–10 years |
