Description
Introducing the RUiXU Rack Battery + Cabinet Systems, a modular and scalable storage solution designed for both residential and commercial projects. By pairing RX-LFP48100 or RX-LFP48100-H server rack batteries with pre-assembled cabinets, installers and system owners benefit from a clean, safe, and professional installation that can scale from just 2 batteries up to 10 batteries in a single enclosure.
These turnkey cabinet solutions ensure not only secure housing for the batteries, but also streamlined wiring, integrated busbars, and simplified system expansion. Available in multiple cabinet sizes, these systems are perfect for homeowners seeking a tidy backup power solution or businesses building larger multi-battery storage banks.
Key Features:
-
Scalable Options: Choose from 2–6 battery cabinets or 7–10 battery cabinets.
-
Professional Design: Pre-assembled cabinets simplify installation and wiring.
-
Safety & Durability: Cabinets are engineered for secure battery housing with integrated ventilation.
-
Flexible Configurations: Expandable as energy needs grow.
-
Clean & Compact: Provides a neat, professional look compared to loose rack batteries.
Product Overview
The RUiXU cabinet systems are built for installers and system owners who value both performance and presentation. Instead of leaving multiple rack batteries exposed, these pre-assembled enclosures consolidate the system into one compact cabinet. Each unit is designed for easy access, secure wiring, and professional-grade safety.

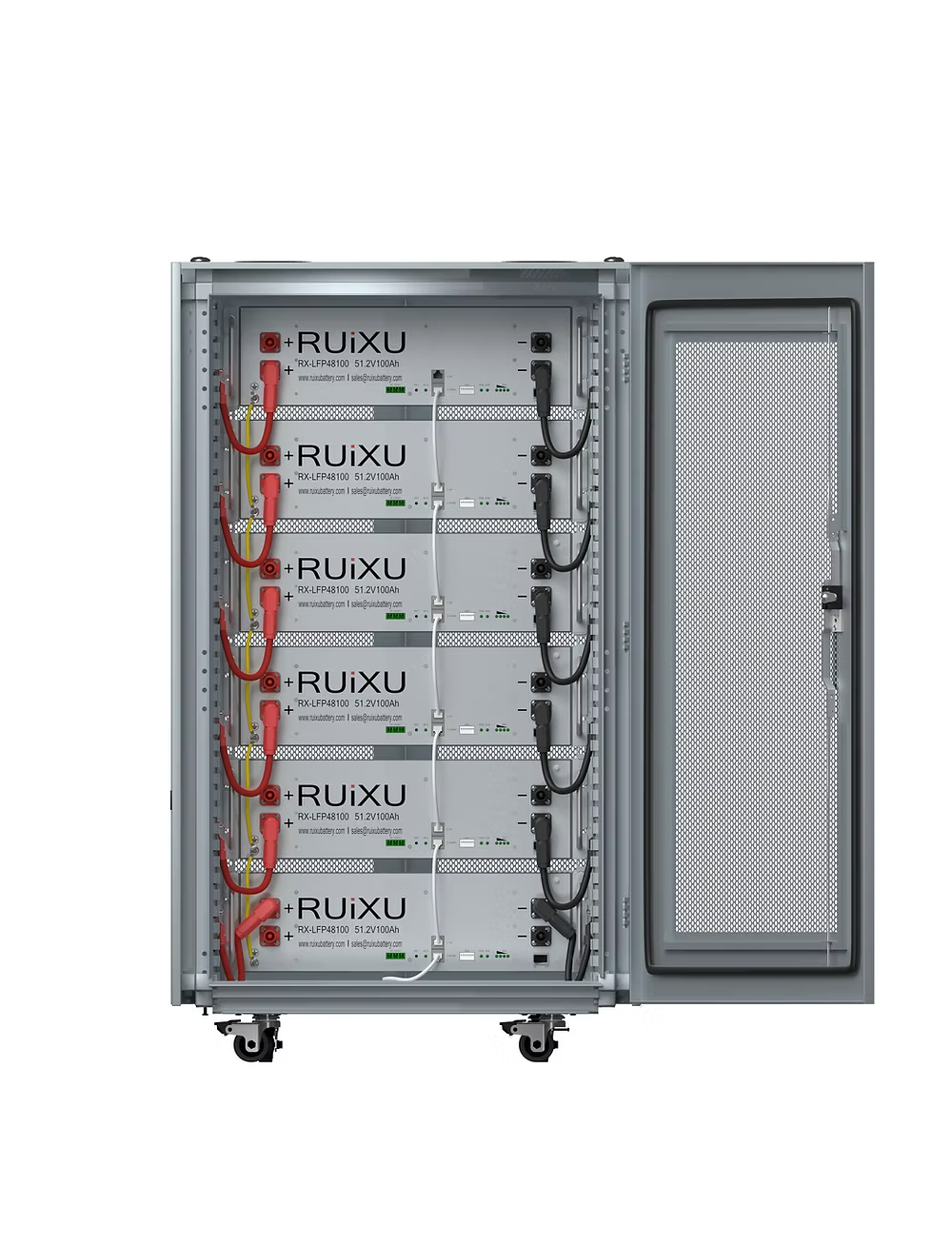

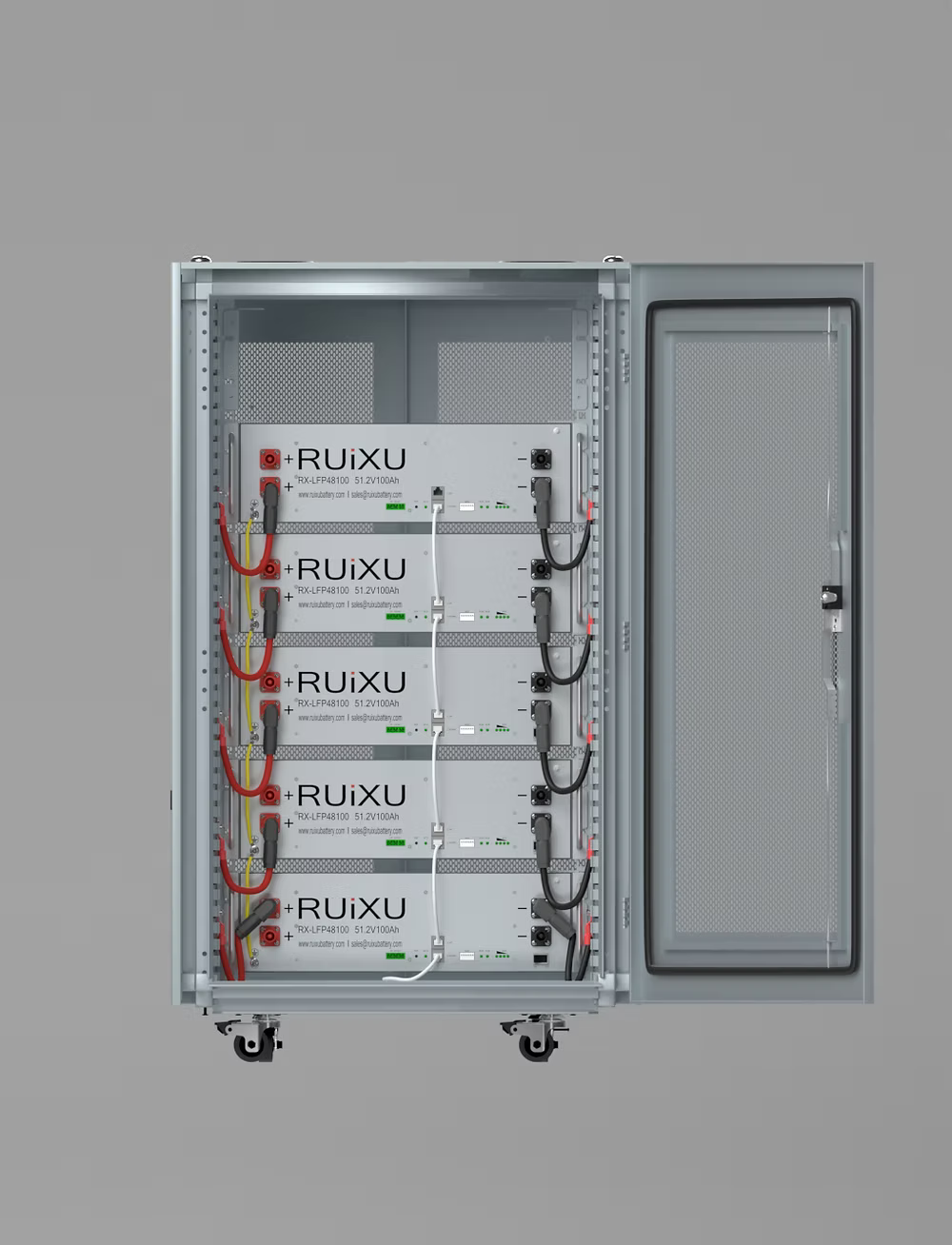

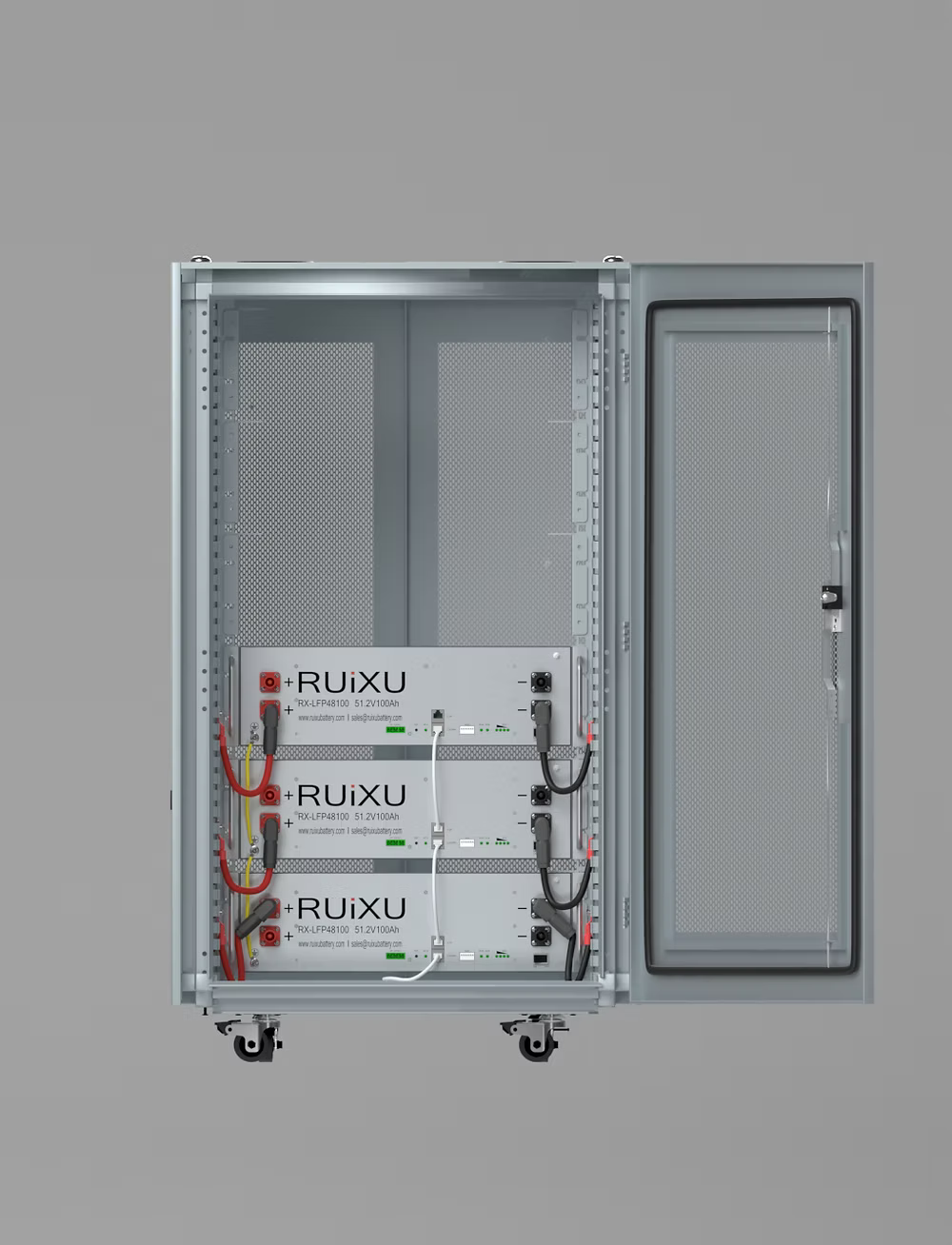

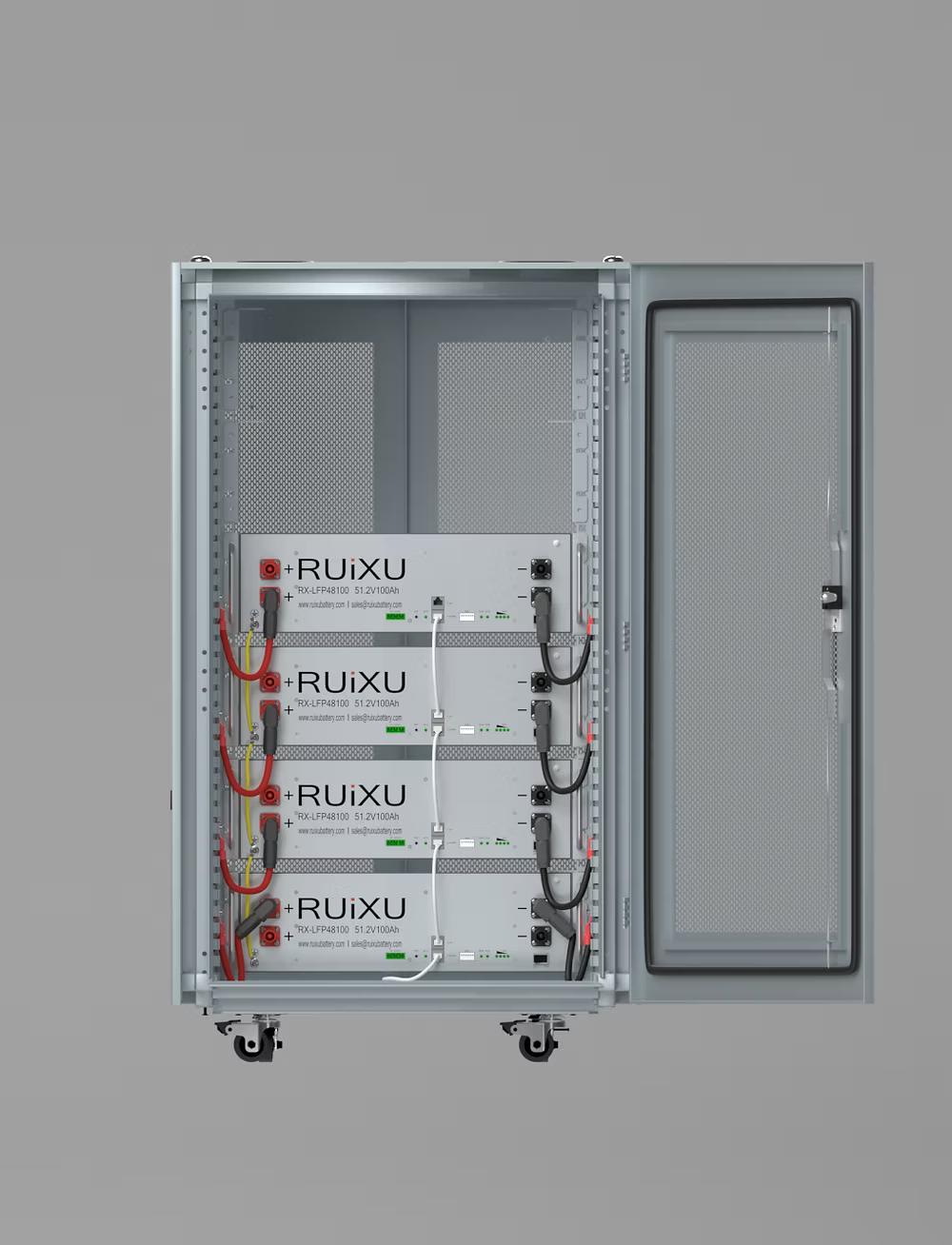

For smaller projects, a 2–6 battery cabinet is the ideal option, providing 10.24 kWh to 30.72 kWh of storage using RX-LFP48100 or RX-LFP48100-H rack batteries. This is perfect for residential applications, off-grid cabins, or small commercial facilities.
For larger-scale storage, the 7–10 battery cabinet provides 35.84 kWh to 51.2 kWh of capacity. This configuration is popular with businesses, schools, and microgrid systems requiring long-duration storage and greater power capacity.
Each cabinet is pre-assembled, reducing labor costs and simplifying setup. They are built with sturdy frames and integrated busbar options to manage high current safely. Paired with the RX-LFP48100 / RX-LFP48100-H batteries’ UL1973 and UL9540A certifications, these cabinet systems ensure compliance with safety regulations and deliver a long service life backed by a 10-year warranty.
Technical Specifications
| Specification | 2–6 Battery Cabinet | 7–10 Battery Cabinet |
|---|---|---|
| Compatible Batteries |
RX-LFP48100 (5.12kWh) RX-LFP48100-H |
RX-LFP48100 (5.12kWh) RX-LFP48100-H |
| Capacity Range | 10.24 – 30.72 kWh | 35.84 – 51.2 kWh |
| Nominal Voltage | 51.2V | 51.2V |
| Chemistry | LiFePO4 | LiFePO4 |
| Dimensions | Varies (compact cabinet design) | Larger footprint |
| Pre-Assembly | Yes | Yes |
| Safety Features | Enclosed design, integrated busbars, ventilation | Enclosed design, integrated busbars, ventilation |
| Applications | Residential backup, off-grid homes, small businesses | Commercial storage, schools, microgrids |
| Certifications | UL1973, UL9540A (batteries) | UL1973, UL9540A (batteries) |
| Warranty | 10 years (batteries) | 10 years (batteries) |
These cabinet-based systems combine the reliability of RUiXU’s server rack batteries with the convenience of pre-assembled enclosures. They not only optimize space but also deliver a professional installation that’s ready to expand with your energy needs.
