Description

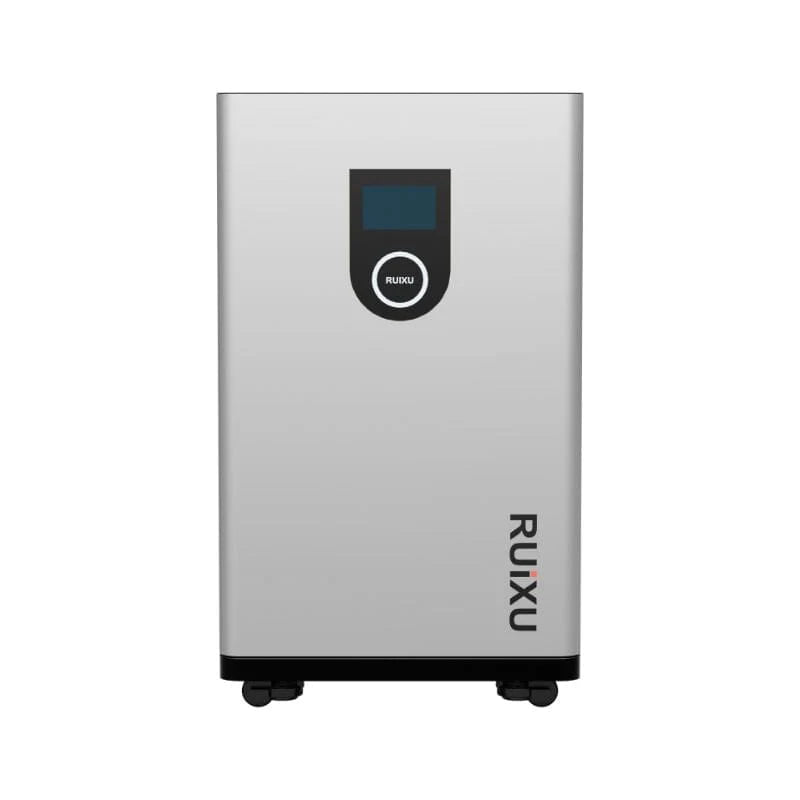

The RUiXU Lithi2-16 offers 16kWh per unit, delivering large-scale energy storage in a single package. Ideal for heavy-demand homes, businesses, and microgrids, it reduces installation complexity compared to multiple smaller batteries.
Key Features:
-
High-Capacity Storage: 16kWh per unit.
-
UL Certified: UL1973, UL9540, UL9540A plus CEC, SGIP approval.
-
Long Warranty: 10 years of backed reliability.
-
Durable LiFePO4 Chemistry: Thousands of cycles, thermal stability.
-
Scalable Applications: From residential to commercial microgrids.
Product Overview
With a massive 314Ah capacity, the Lithi2-16 is designed for serious energy storage applications. It reduces the number of modules needed for large systems, cutting costs, simplifying installation, and saving space. Safety is guaranteed with comprehensive UL and CEC certifications, while LiFePO4 chemistry ensures long cycle life and stability.
Perfect for solar microgrids, businesses, and demanding off-grid systems, the Lithi2-16 provides reliable, efficient power storage that grows with your needs.
Technical Specifications
| Specification | Details |
|---|---|
| Model | Lithi2-16 |
| Rated Voltage | 51.2V |
| Rated Capacity | 314Ah (16kWh) |
| Chemistry | LiFePO4 |
| Usable Capacity | ~90–95% DoD |
| Cycle Life | 6000+ cycles @ 80% DoD |
| Round-Trip Efficiency | ≥ 95% |
| Nominal Charge Current | 100A |
| Max Continuous Discharge | 200A |
| Peak Discharge | 250A (≤10 sec) |
| Communication | RS485 / CAN bus |
| Dimensions | ~482 × 720 × 220 mm |
| Weight | ~145–160 kg |
| Enclosure Rating | IP21 |
| Operating Temp | Charge: 0–50°C; Discharge: -10–50°C |
| Storage Temp | -20–60°C |
| Certifications | UL1973, UL9540, UL9540A, CEC, SGIP |
| Warranty | 10 years |
