Description
Key Features
- Touchscreen LCD display for real-time monitoring of state of charge, voltage, current, balancer status, cell voltages, and fault alerts.
- Modular “stack” design stacks up to 6 units vertically—no separate racks/cabinets needed—plus parallel capability for expandable capacity.
- Impactive balancing + built‑in RPSD extends lifespan by up to 30%; rated for 6,000 cycles at 80 % DoD with 12‑year warranty.
- Enclosed cabling & networking compartment + casters for clean, safe installation and mobility.
- UL9540A certified (RGS51100) and UN38.3 transport certified, with BMS safety cut‑outs and breach‑vented cells.
Product Overview

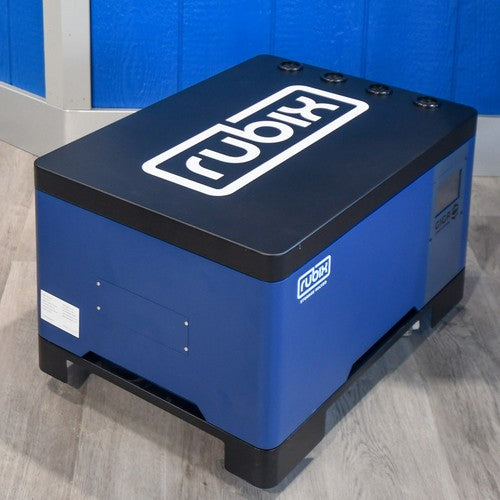

Upgrade your energy storage with the Rubix Giga Stack Series RGS51100. This high-performance 48 V, 100 Ah LiFePO₄ battery delivers 5.12 kWh of usable energy in a compact, stackable form factor—ideal for off-grid systems, residential backup, RVs, or commercial applications. Built by a joint venture between MillerTech and ARK Battery, Rubix brings installer-focused design, quality manufacturing, and hands-on support.
The modular stacking system functions like giant LEGO bricks—stack up to six units vertically without racks, and parallel stacks to scale with demand. A solid base and lid package (sold separately) ensures a secure foundation and clean cable management.
Your system intelligence lives in the touchscreen LCD: view key metrics like SOC%, voltage, amps in/out, balancer status, cell-level voltages, and fault codes—all at a glance.
Performance-wise, RGS51100 supports continuous discharge at 90 A (recommended 75 A), peak discharge up to 200 A surge, and continuous charging at 70 A (peak 80 A). The robust LiFePO₄ prismatic cells and impactive balancing deliver up to 6,000 full cycles at 80 % DoD (or 8,500 cycles at 50 % DoD), with an 80 % end-of-life capacity guarantee—backed by a 12-year warranty.
Safety is baked in: the integrated BMS includes low/high voltage cut-offs, over-current protection, over temperature safeguards up to 135 °F, and ruptured-cell venting. The stack supports closed-loop CANBUS inverter communication to optimize EQ, absorb and float charging protocols .
This model is UL9540A certified and UN38.3 approved for shipping. Housed in an IP50 enclosure, it is recommended for dry, climate-controlled indoor deployment
Why Choose Rubix Giga Stack?
| Benefit | Explanation |
|---|---|
| Installer-Friendly | No racks required—quick vertical stacking, hidden cabling, caster-mobility. |
| Expandable & Future-Proof | Stack and parallel battery modules seamlessly as power needs grow. |
| Extensive Warranty & Cycle Life | 6,000 cycles at 80 % DoD, 12-year coverage—lower TCO. |
| Exceptional Efficiency | Impactive balancing keeps cells in sync for deeper discharge and longer life. |
| Safe & Certified | UL9540A certified, BMS protections, safety venting, and compliant for international transport. |
Ideal Applications
- Residential Solar + Backup: Scale capacity without redesigning your system footprint.
- Commercial/Off-Grid Microgrids: Networked CAN control and high throughput support heavy operations.
- Mobile Installations: Rugged form factor and casters make it perfect for mobile setups like RVs or event trailers.
What’s in the Box
- Rubix RGS51100 battery module (48 V, 100 Ah, 5.12 kWh)
- Standard M8 bolt-on terminals (DIN style)
- Built-in BMS and touchscreen LCD
- Integrated balancing and safety systems
Note: For safe installation, include one Rubix Giga Stack Base & Lid kit per stack.
Specifications Table
| Specification | RGS51100 (100 Ah) |
|---|---|
| Model | RGS51100 |
| Chemistry | LiFePO₄ (Lithium Iron Phosphate) |
| Nominal Voltage | 48 V (Actual @20 % SOC: 51.2 V) |
| Nominal Capacity | 100 Ah (5.12 kWh) |
| Continuous Discharge Current | 90 A (recommend 75 A) |
| Peak Surge Discharge (10 ms) | 200 A |
| Continuous Charge Current | 70 A (peak 80 A) |
| Cycle Life (100 % DoD) | 4,000 cycles |
| Cycle Life (80 % DoD) | 6,000 cycles |
| Cycle Life (50 % DoD) | 8,500 cycles |
| Warranty | 12 years |
| BMS Protections | Over/under voltage, over-current, temp (> 135 °F), cell balancing |
| Certifications | UL9540A certified, UN38.3 |
| IP Rating | IP50 |
| Max Stack Height | 6 modules |
| Stack Parallel Capability | Up to 4 stacks parallel |
| Dimensions | See spec sheet drawing |
| Weight | 117 lb (53 kg) |
