Description

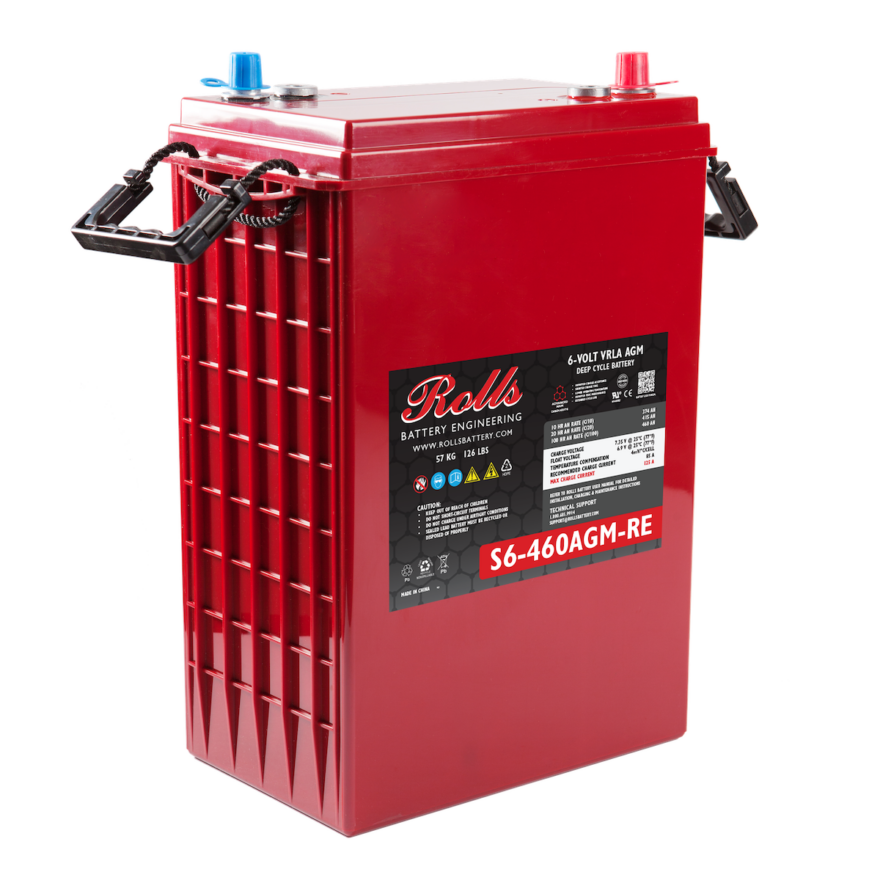

Built on Rolls' L16 platform, the S6-460AGM-RE pairs sealed AGM chemistry with a 460Ah capacity for demanding off-grid, marine, and backup power applications.
Key Features
- High Capacity: Delivers 460Ah at the 100-hour rate for long, dependable runtime.
- Sealed & Maintenance-Free: Valve-regulated AGM design with an integral flame arrestor, no watering required.
- Low Self-Discharge: Loses less than 2% of charge per month at 77°F when stored.
- Rugged Construction: ABS container and cover with rope handles for durability and easy handling.
- Cold-Weather Ready: Rated at 1,500 CCA and 1,800 MCA for reliable starts in cold conditions.
Reserve capacity runs 885 minutes at 25A and 229 minutes at 75A, giving this battery staying power under sustained loads. Charging tops out at a 125A maximum current.
Internal resistance sits at a low 1.6 mΩ, supporting efficient charge and discharge cycles. The 3-cell, 6-volt design uses an F23-1 terminal with included M10 stainless hardware.
Backed by ISO 9001, ISO 14001, and ISO 45001 certification, this battery is built to BCI, DIN, BS, and IEC standards. UL and CE marks confirm safety compliance.
Technical Specification
| Item | Specification |
|---|---|
| Model | S6-460AGM-RE |
| Voltage | 6V |
| Cells | 3 |
| Capacity (100 Hr Rate) | 460 AH |
| Capacity (20 Hr Rate) | 415 AH |
| Capacity (10 Hr Rate) | 374 AH |
| Capacity (5 Hr Rate) | 340 AH |
| Cold Cranking Amps (CCA) | 1,500 A |
| Marine Cranking Amps (MCA) | 1,800 A |
| Reserve Capacity (RC @ 25A) | 885 Minutes |
| Reserve Capacity (RC @ 75A) | 229 Minutes |
| Charge Voltage Range | 2.45 V/cell @ 77°F |
| Float Voltage Range | 2.3 V/cell @ 77°F |
| Max Charge Current | 125 A |
| Internal Resistance | 1.6 mΩ |
| Terminal Type | F23-1 |
| Container/Cover Material | ABS |
| Weight | 126 lbs |
| Dimensions (L x W x H) | 11.61" x 7.09" x 16.65" |
| Certifications | UL, CE, ISO 9001, ISO 14001, ISO 45001, BCI |
