Description

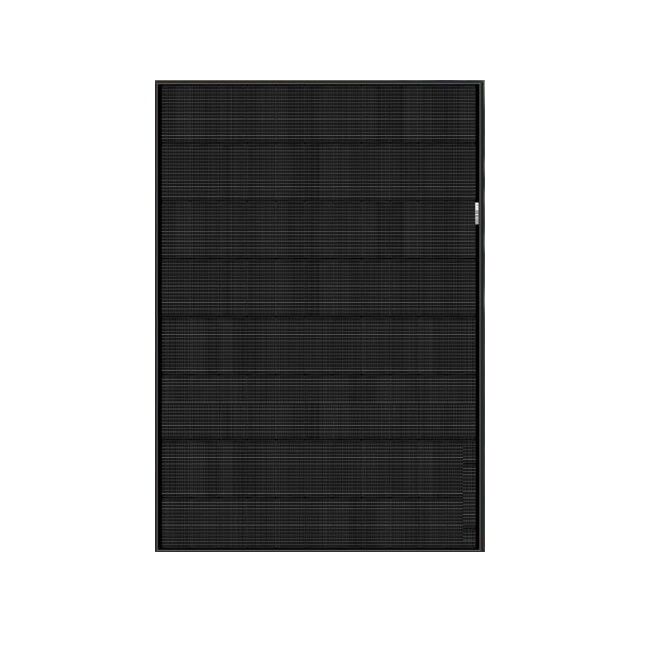

When you want the best panel money can buy for a residential rooftop, the REC Alpha Pure-RX 460W is the one installers and homeowners keep coming back to — 22.1% efficiency, heterojunction cell technology, and a warranty program that actually covers labor.
- 88 Half-Cut Bifacial Heterojunction Cells – REC's gapless HJT cell technology delivers industry-leading efficiency and superior low-light performance that keeps producing when conditions aren't perfect.
- 22.1% Panel Efficiency at 460W – One of the highest efficiency panels available in a residential form factor, delivering 20.5 W/ft² for maximum output on space-constrained rooftops.
- 9A Module Current – MLPE Compatible – Designed with a low 9A module current for seamless compatibility with microinverters and DC optimizers right out of the box.
- Industry-Leading Low Degradation – Annual degradation of just 0.25% with 98% power guaranteed in year one and 92% output retained through year 25.
- REC ProTrust Warranty Eligible – Qualifies for REC's 25-year product, power, and labor warranty when installed by an REC Certified Solar Professional — one of the most comprehensive warranties in the industry.
The Pure-RX is built on REC's proven Alpha platform with a full black anodized aluminum frame and black backsheet, giving it a sleek, uniform appearance that looks at home on any modern rooftop. The 0.13 in. anti-reflective solar glass and IP68-rated 4-part junction box are engineered to handle everything from salt mist to 35mm hail impacts without flinching.
With a -0.24%/K temperature coefficient — among the lowest available — this panel holds its output better in real-world heat than conventional PERC or even most TOPCon modules. That edge compounds over 25 years into meaningfully more energy delivered to your home.
Stäubli MC4 connectors, 12AWG cables, and a 1000V system voltage rating make installation straightforward on any modern residential or light commercial system. At just 50 lbs in a 68 x 47.4 in. footprint, it handles cleanly on the roof without adding unnecessary weight to the structure.
Technical Specification
| Specification | REC460AA Pure-RX |
|---|---|
| Peak Rated Power (Pmax) | 460 W |
| Maximum Power Voltage (Vmp) | 54.9 V |
| Maximum Power Current (Imp) | 8.38 A |
| Open Circuit Voltage (Voc) | 65.3 V |
| Short Circuit Current (Isc) | 8.88 A |
| Panel Efficiency | 22.1% |
| Power Density | 20.5 W/ft² |
| Watt Class Sorting | 0 / +10 W |
| Cell Type | 88 Half-Cut Bifacial HJT, Gapless Technology |
| Glass | 0.13 in. Anti-Reflective Solar Glass (EN12150) |
| Backsheet | Highly Resistant Polymer (Black) |
| Frame | Anodized Aluminum (Black) |
| Junction Box | 4-Part, 4 Bypass Diodes, IP68 (IEC 62790) |
| Connectors | Stäubli MC4 PV-KBT4/KST4, 12AWG (IEC 62852) |
| Cable | 12AWG, 66.9 in. + 66.9 in. (EN50618) |
| Dimensions (L x W x H) | 68 x 47.4 x 1.2 in. |
| Weight | 50 lbs |
| Max System Voltage | 1000 V |
| Max Series Fuse Rating | 25 A |
| Max Test Load (Front) | +7,000 Pa (146 lb/ft²) |
| Max Test Load (Rear) | -4,000 Pa (83.4 lb/ft²) |
| Operational Temperature | -40°F to 185°F |
| NOCT | 44°C ± 2°C |
| Temp. Coefficient of Pmax | -0.24%/K |
| Temp. Coefficient of Voc | -0.24%/K |
| Temp. Coefficient of Isc | 0.04%/K |
| Power in Year 1 | 98% |
| Annual Degradation | 0.25% |
| Power in Year 25 | 92% |
| Product Warranty | 20 Years (25 Years w/ ProTrust) |
| Power Warranty | 25 Years |
| Labor Warranty | 25 Years (ProTrust) |
| Certifications | IEC 61215:2021, IEC 61730:2016, UL61730, ISO9001 |
