Description

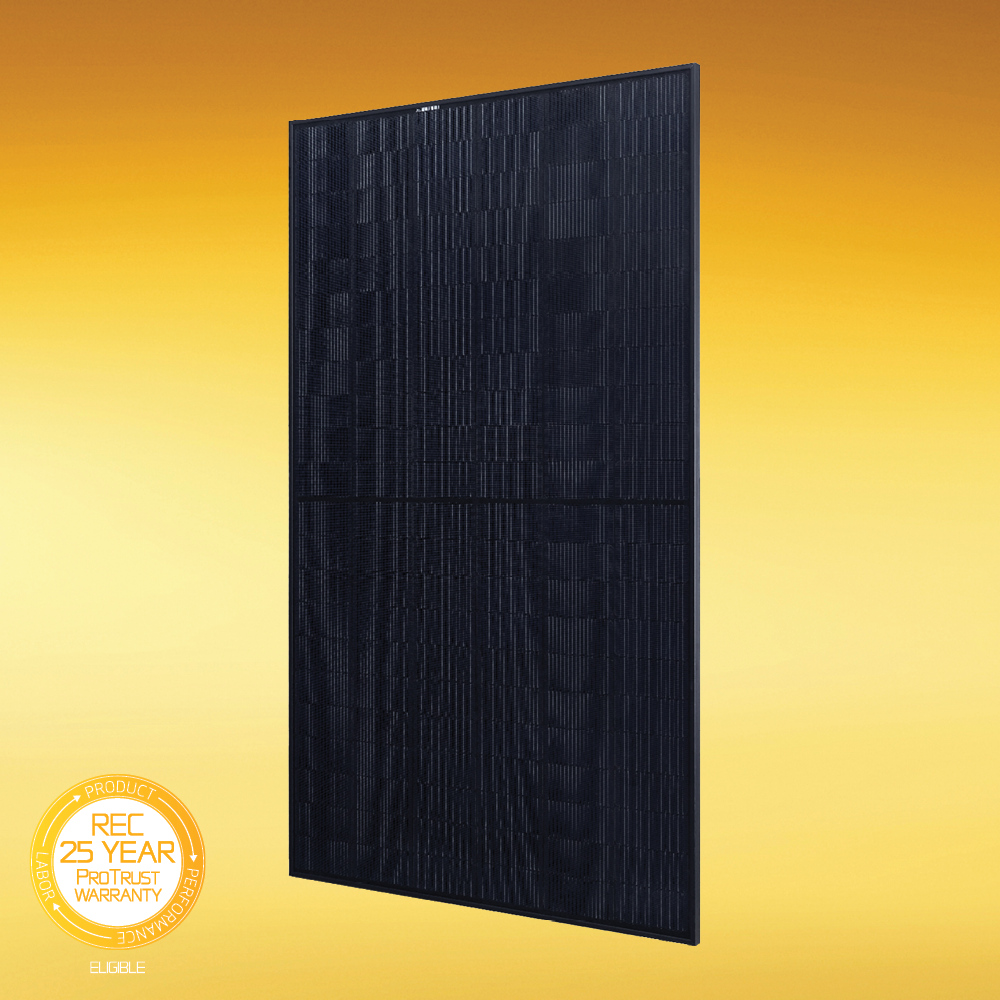

Introducing the REC Alpha Pure 2 420W Solar Panel (Model: REC420AA Pure 2), a premium solar solution that combines cutting-edge technology with sleek aesthetics. Designed for both residential and commercial applications, this panel offers high efficiency, durability, and an environmentally friendly design.
Key Features
-
High Efficiency: Achieves up to 21.7% efficiency, maximizing energy production even in limited spaces.Advanced HJT Technology: Utilizes 132 half-cut heterojunction cells with gapless design for superior performance and reduced power loss.
-
Robust Durability: Built to withstand extreme weather conditions with a front load capacity of 7000 Pa and rear load of 4000 Pa.
-
Lead-Free Design: Completely lead-free and RoHS compliant, promoting a greener environment.
-
Comprehensive Warranty: Backed by a 25-year product and performance warranty, ensuring long-term reliability.
Product Overview

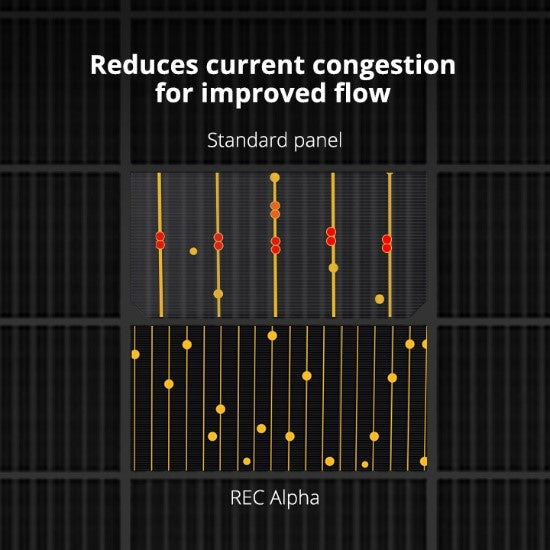

The REC Alpha Pure 2 420W panel stands out with its innovative heterojunction (HJT) cell technology, combining monocrystalline silicon with amorphous layers to enhance efficiency and longevity. The gapless cell layout increases the active area, capturing more sunlight and boosting power output.
Its all-black design not only offers a sleek, modern appearance but also contributes to its high performance by reducing reflection and increasing absorption. The panel's robust construction ensures it can endure harsh environmental conditions, making it a reliable choice for various installations.
Technical Specifications
Specification | Details |
---|---|
Model Number | REC420AA Pure 2 |
Rated Power (Pmax) | 420 W |
Efficiency | 21.7% |
Cell Type | 132 half-cut HJT cells |
Dimensions (L x W x H) | 1864 mm x 1039 mm x 30 mm |
Weight | 21.6 kg (47.6 lbs) |
Open Circuit Voltage (Voc) | 49.1 V |
Short Circuit Current (Isc) | 10.74 A |
Max Power Voltage (Vmpp) | 42.2 V |
Max Power Current (Impp) | 9.96 A |
Temperature Coefficient (Pmax) | -0.24 %/°C |
Max System Voltage | 1000 V |
Connector Type | Staubli MC4 PV-KBT4/KST4 |
Cable Length | 1.25 m (49.2 inches) |
Front Load Capacity | 7000 Pa |
Rear Load Capacity | 4000 Pa |
Fire Rating | Type 2 |
Certifications | IEC 61215:2016, IEC 61730:2016, UL 61730, RoHS compliant |
Warranty | 25-year product and performance warranty |
