Description

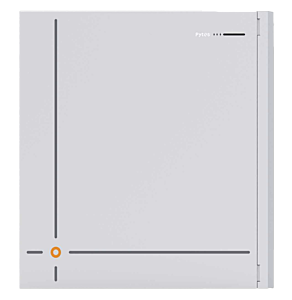

The Pytes V16 is a high-capacity, outdoor-rated lithium battery engineered for demanding solar, backup, and off-grid applications. Delivering 16 kWh of energy from a 314 Ah, 48 V-class (≈51.2 V nominal) platform, the V16 is designed to provide long runtime, stable daily cycling, and reliable performance in exposed environments.
Unlike indoor-only battery modules, the V16 is built to be installed outdoors without additional enclosures, simplifying site layout and reducing balance-of-system requirements. The integrated Battery Management System (BMS) handles protection, monitoring, and communication, while factory-included heavy-duty battery cables streamline installation and future expansion.
Product Details
Outdoor-Rated Energy Storage
The V16 features a ruggedized enclosure suitable for exterior installation near inverters, equipment pads, or PV infrastructure. This design minimizes long DC cable runs and frees up indoor space.
High Energy Density per Module
With 16 kWh in a single battery, the V16 reduces the number of modules required for extended backup or off-grid autonomy, resulting in cleaner system layouts and simpler wiring.
LiFePO₄ Chemistry for Longevity
Lithium Iron Phosphate cells provide excellent thermal stability, long cycle life, and consistent performance under frequent charge/discharge cycles—ideal for solar self-consumption and backup readiness.
Integrated Smart BMS
The onboard BMS manages cell balancing, monitors voltage/current/temperature, and enforces protections against over-current, over/under-voltage, short-circuit, and thermal events.
Installer-Friendly Expansion
Parallel-ready architecture allows multiple V16 units to be combined for larger energy banks. Included interconnect cables reduce install time and ensure proper conductor sizing from day one.
Technical Specifications
Battery — Pytes V16
| Category | Specification |
|---|---|
| Nominal Energy | 16 kWh |
| Nominal Capacity | 314 Ah |
| Nominal Voltage | ≈51.2 V DC (48 V class) |
| Chemistry | LiFePO₄ (Lithium Iron Phosphate) |
| Recommended DoD | ~80–90% |
| Continuous Discharge Current | ~150–200 A (model dependent) |
| Peak Discharge Capability | High-current support for short surge events (model dependent) |
| Battery Management | Integrated BMS with cell-level monitoring and balancing |
| Protections | Over-current, over/under-voltage, short-circuit, temperature |
| Communications | CAN / RS-485 (closed-loop capable with supported inverters) |
| Enclosure Rating | Outdoor-rated, weather-resistant |
| Mounting | Floor mount or secured pad/bracket |
| Included Accessories | Heavy-duty battery interconnect cables |
| Cycle Life (reference) | ~4,000–8,000 cycles (application & conditions dependent) |
