Description
FREE SHIPPING!
Key Features
-
Self‑contained solar aeration system with battery backup to run day and night
-
Capable of up to 20 hours of continuous operation under normal conditions
-
Designed to improve water clarity, circulation, and dissolved oxygen levels
-
Effective for ponds up to 2 acres using multiple diffusers
-
Includes programmable digital timer, compressor, diffusers, manifold, and cabinet components
Product Description

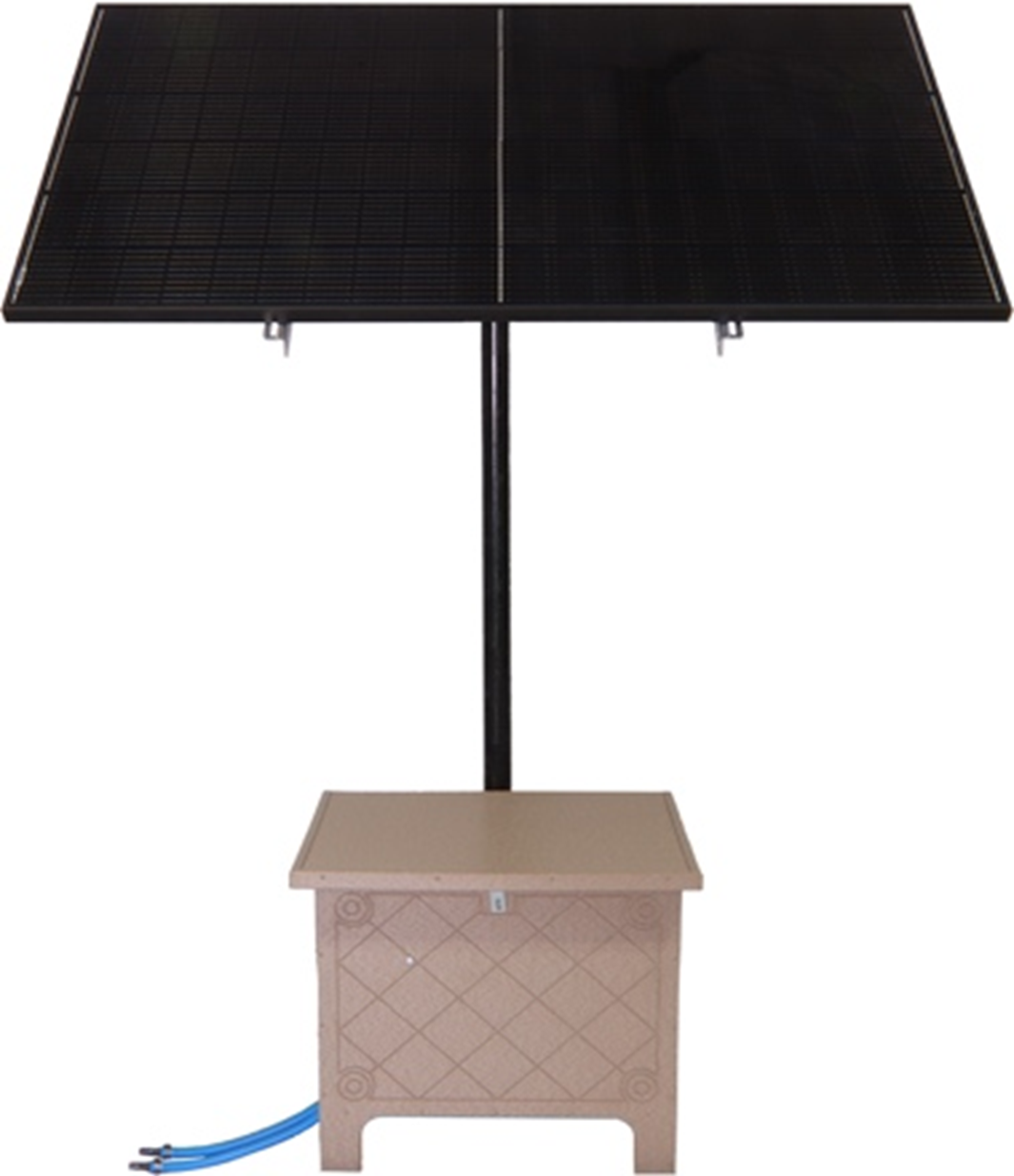

The Solaer 1.0 Solar Aeration System is a complete pond or lake aeration solution intended for sites with limited or no electrical access. It houses a solar panel, charge controller, battery or battery subsystem, compressor, diffusers, and manifold in a weatherproof cabinet.
This system is capable of delivering aeration deep into the water column, reducing stagnation, improving nutrient cycling, and preserving aquatic health. Even during cloudy periods, the battery backup allows it to maintain oxygenation and circulation.
Its modular design supports configurations with one or more diffusers to match pond size, and it comes with a digital timer and adjustable manifold to balance performance and energy use.
What’s Included (Typical Kit)
-
Solar panel with mounting bracket
-
EcoFlow 24V compressor
-
Battery (standard or lithium ion option)
-
Programmable digital timer
-
Adjustable manifold
-
Diffuser(s) (such as Duraplate)
-
Self-weighted tubing (optional in some kits)
-

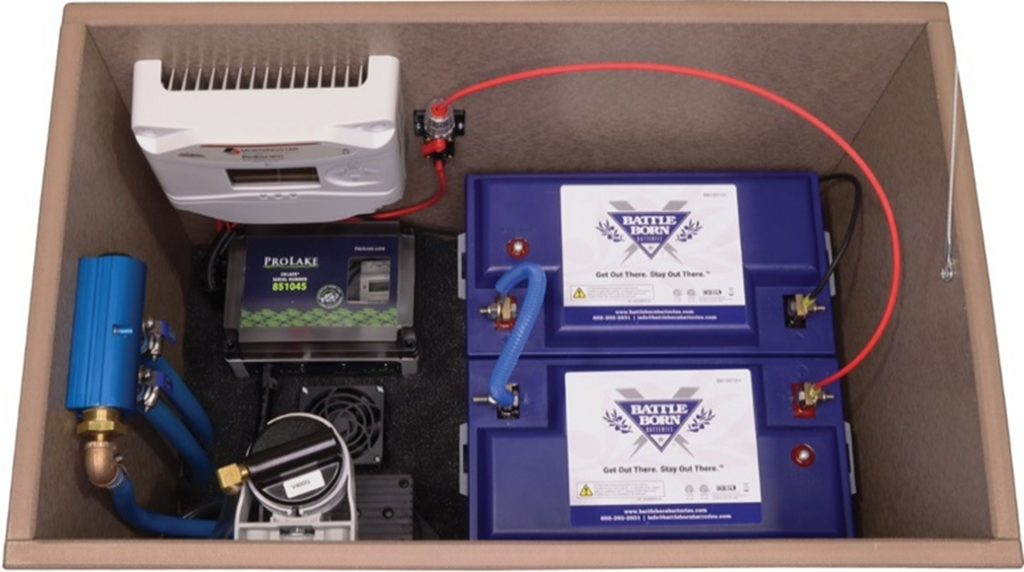

Cabinet (housing all electronics)
-
Air intake filter and cooling fan
-
Wiring, connectors, fittings, and installation hardware
Technical Specifications
| Specification | Details |
|---|---|
| Maximum Pond Size | Up to 2 acres (with 2 diffusers) |
| Max Diffuser Depth | 25 feet |
| Max Airflow (CFM) | Up to 2.0 |
| Electrical Consumption | ~48 Watts (for compressor) |
| Operational Noise Level | 50–60 dB |
| Cabinet Dimensions | 28″ W × 20″ L × 24″ T |
| Warranty | 2 years (product & cabinet), 25 years (solar panel) |
| Use Duration under Battery Alone | Several hours depending on battery type |
| Battery Backup | Standard or Lithium Ion options available |
| Sound / Ventilation | Cooling fan included |
