Description

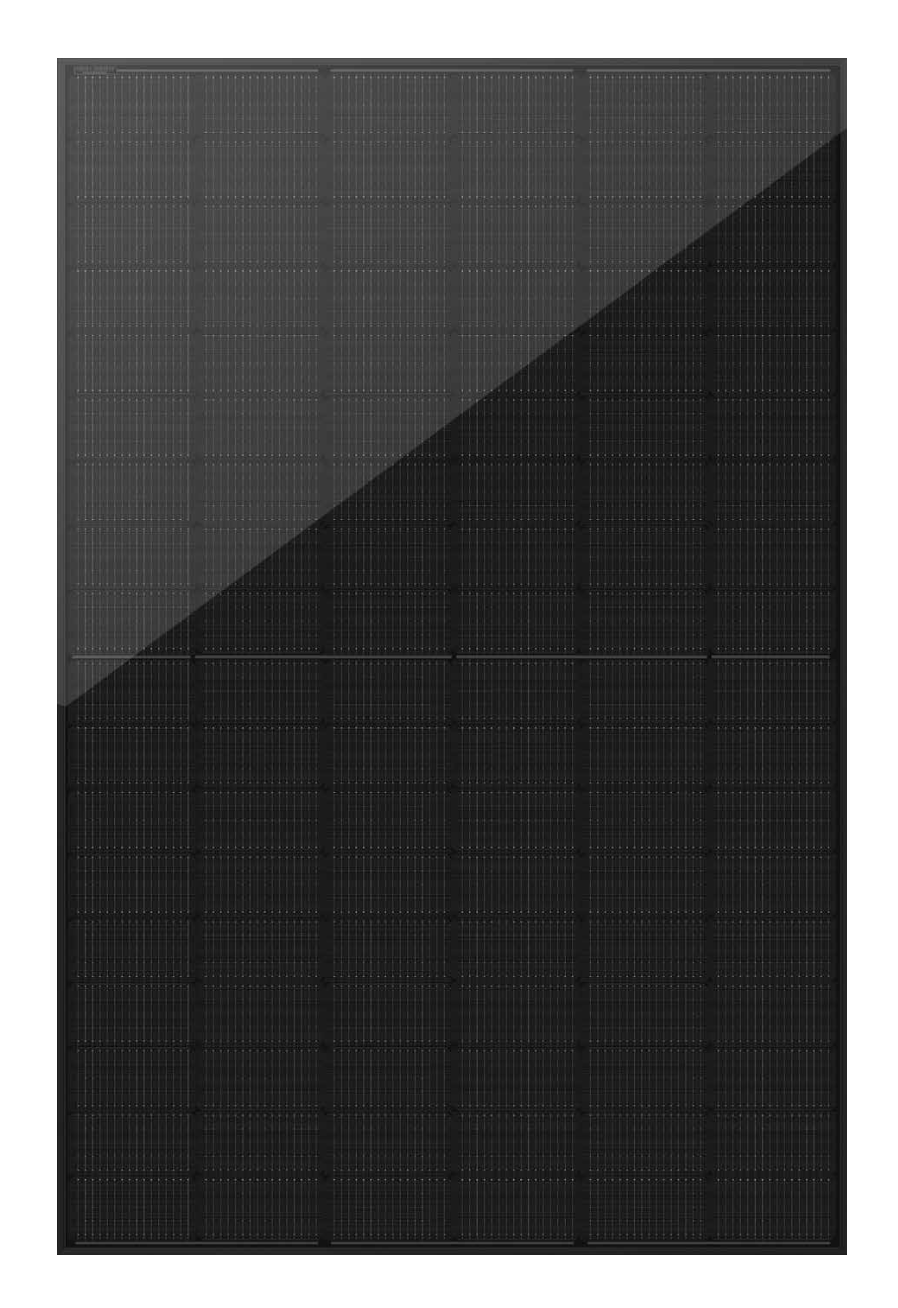

The Philadelphia Solar Nexus is a 108-cell half-cell N-type bifacial monocrystalline solar panel produced on state-of-the-art automated robotic production lines in Jordan, delivering 450Wp with a positive-only power tolerance of 0~+3%.
Key Features
- N-Type Bifacial Half-Cell Design — Captures additional reflected light from the rear surface, boosting power output by 5–25% to significantly reduce LCOE and improve IRR on every installation.
- Exceptional Anti-PID Performance — Optimized mass-production processes and strict materials control deliver outstanding resistance to Potential Induced Degradation for long-term reliability.
- 16BB Half-Cell Technology — Reduces partial shading current mismatch losses and improves light trapping and current collection for greater output and module-level reliability.
- 5400 Pa Front and Back Mechanical Load Rating — Engineered to withstand high static mechanical loads on both sides, suited for demanding commercial rooftop and ground mount environments.
- 25-Year Product Warranty / 30-Year Linear Power Warranty — Only -0.4% annual degradation, retaining 89.4% output at 25 years and 87.4% at 30 years.
The Nexus series is produced using fully automated robotic lines in Jordan and carries a comprehensive certification portfolio including UL 61215/61730, IEC 61215/61730, IEC TS 62804 PID Resistance, IEC 62716 Ammonia Resistance, and IEC 61701 Salt Mist Resistance.
With 23.02% module efficiency at 450W and a transparent backsheet enabling true bifacial energy harvest, the Nexus is well suited for on-grid commercial rooftops, off-grid systems, and utility-scale solar power plants.
The 3.2mm tempered AR coated glass front surface, IP68-rated junction box with original MC4 connectors, and anodized aluminum frame combine to deliver a panel built for the full 30-year warranty period in harsh outdoor conditions.
Technical Specifications
| Specification | Value |
|---|---|
| Model | PS-MNB108(HCBF)-450W |
| Power at STC | 450W |
| Voc | 38.84V |
| Vmp | 33.51V |
| Isc | 14.47A |
| Imp | 13.44A |
| Module Efficiency | 23.02% |
| Cell Type | N-Type Monocrystalline |
| Cells per Module | 108 (54x2 Half-Cell) |
| Front Surface | 3.2mm Tempered AR Coated Glass |
| Back Cover | Transparent Backsheet |
| Frame | Anodized Aluminum (Black/Silver) |
| Junction Box | IP68 with Original MC4 |
| Cable Length | 1200mm (customizable) |
| Power Temp. Coefficient (Pmp) | -0.29%/°C |
| Voc Temp. Coefficient | -0.25%/°C |
| Isc Temp. Coefficient | +0.046%/°C |
| NOCT | 45±2°C |
| Max System Voltage | 1500V |
| Maximum Series Fuse | 30A |
| Operating Temperature | IEC: -40 to +85°C / UL: -40 to +90°C |
| Max Static Load (Front/Back) | 5400 Pa |
| Dynamic Load | 1000 Pa |
| Module Dimensions | 1724 x 1134 x 30 mm |
| Module Weight | 46.3 lbs |
| Product Warranty | 25 Years |
| Linear Power Warranty | 30 Years / -0.4% Annual Degradation |
| Certifications | UL 61215/61730, IEC 61215/61730, CSA C22.2#61730, IEC TS 62804, IEC 62716, IEC 61701, IEC 60068, EN ISO 9001/14001/45001 |
