Description

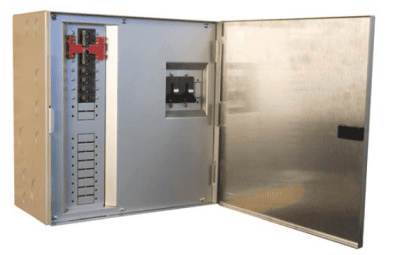

Outback Power GSLC175-120/240 Load Center for Radian Series Inverters
The GSLC is a balance-of-systems enclosure intended to work with the Radian Series (GS) inverter/chargers, FLEXmax Charge Controllers, and OutBack HUB Communications Manager.
The GS Load Center is available in three different options: The GSLC175-PV-120/240 is the "fully loaded" version of the GS Load Center. It has all components already present and needs only to have external wiring and devices added. Two 500A 50mV DC shunts are included. Holds up to eighteen 0.75"(19mm) wide breakers, two 1.5"(39 mm) wide breakers (included) and one FLEXnet DC (included). Support for optional AC Input-Output-Bypass Assembly. AC breakers are rated from 10-60 amps of AC current. New double pole 50 amp breaker is available to support 120/240V input and loads. Model Continuous Battery AC out volts/ No load draw Charger amps AC surge Weight (lbs) Item code GS8048 8000 48 VDC 120/240 60HZ 30 W 115 A 12000 W 125 030-04039 GS Load Centers GSLC GS Load Center with inverter bars, breaker bus, shunt, neg, ground, neutral, and PV pos bus bars 053-02250 GSLC175-120/240 GS Load Center with all items above plus 2 main 175 A breakers, AC IO/Bypass, and 6 AC bus bars 053-02251 GSLC175-PV-120/240 GS Load Center with all items above with 3 shunts, FNDC, 2 pole GFDI, and dual PV input breakers 053-02252 GS Load Center Accessories GS-IOB-120/240 VAC GS AC input/output/bypass kit split phase 120/240 VAC for single inverter only 053-07818 GS-SBUS DC shunt bus for GS load center 053-00130 STBB-BLACK Short bus bar kit with black Insulators for GS load center 053-00132 STBB-RED Short bus bar kit with red Insulators for GS load center 053-00133 STBB-WHITE Short bus bar kit with white Insulators for GS load center 053-00134 PNL-50D-AC-120/240 Circuit breaker, 50 A, 120/240 VAC, 2 pole, panel mount for GSLC (takes two 3/4" spaces) 053-17004 PNL-175-DC Circuit breaker, 175 A, 125 VDC, 1 pole, main DC breaker for GS inverter (2 required per inverter) 030-04329
