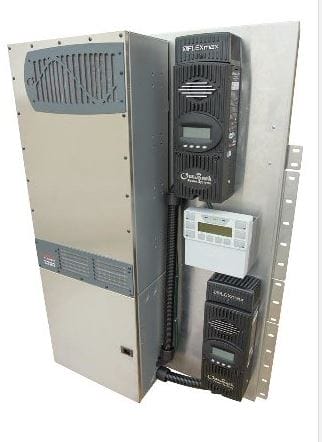

Outback Flexpower Radian FPR-8048a Pre-wired System, 8KW, 120/240VAC, 48VDC 2 X FM100

The OutBack FLEXpower FPR pre-wired power panels integrate Radian inverter/chargers, FM100 charge controls, and all of the essential protective devices in an easy-to-install, fully pre-wired and factory-tested system. FLEXpower FPR systems are available with either 4.0 kW or 8.0 kW inverter sizes. The Radian inverters can be used for either grid-tied or off-grid systems and have the capacity to use and charge any technology batteries, as well as advanced OutBack features including Grid Zero and Offset modes. Dual AC inputs allow connection to both the utility and a backup generator set. Compatible with system monitoring and control via OpticsRE. Utilizing a compact all-on-one mounting plate design, they are fully pre-wired and factory-tested.

Each FPR is designed for 120/240 VAC single-phase output. Each power panel includes one inverter/ chargers, one or two FM100 charge controllers, FlexNetDC, AC and DC wiring box, a MATE3, HUB10, inverter and controller breakers with GFDI, and an AC Input-Output-Bypass Assembly. FLEXpower components are listed to applicable UL standards and the assemblies are marked for streamlined inspections. Dimensions are 47"H x 33.5"W x 9.84"D. Weight is 195 lbs for the FPR-4048A and 250 lbs for the FPR-8048A
