Description

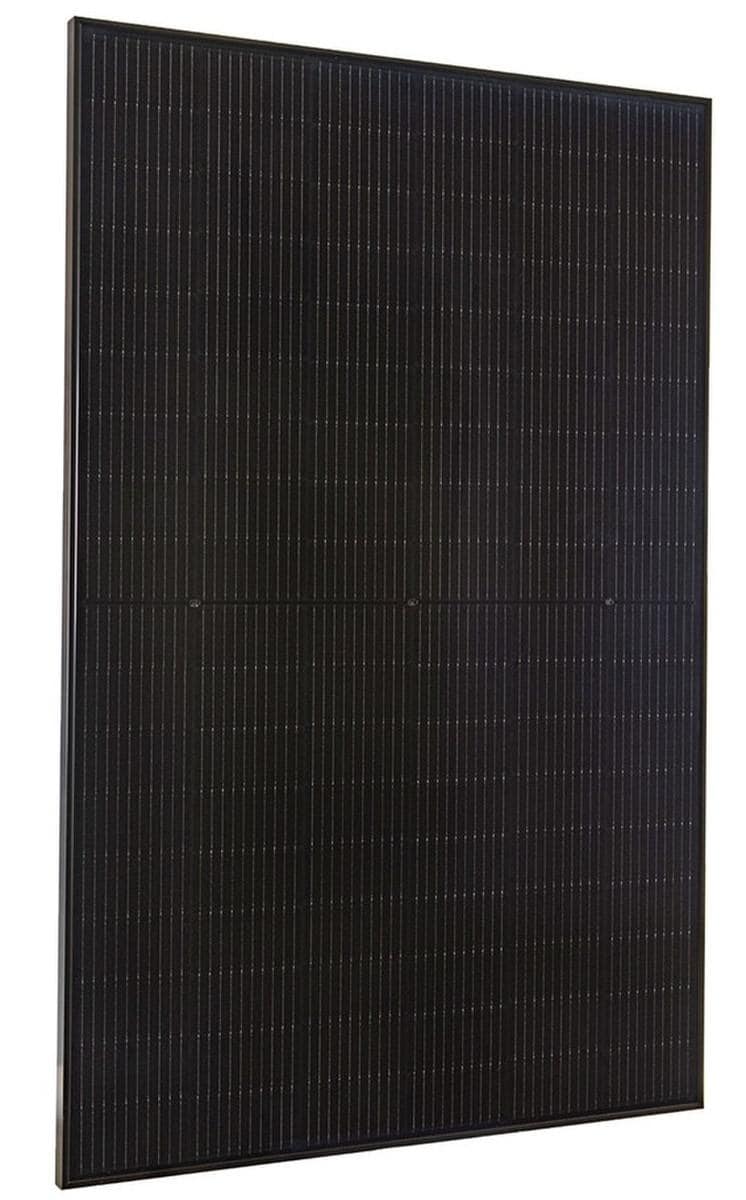

Introducing the Mission Solar 410W 108 Half-Cell Mono Solar Panel (MSE410HT0B), a high-performance and durable solution for your residential and commercial energy needs. Proudly assembled in the USA, this panel combines advanced technology with robust construction to deliver exceptional efficiency and reliability.
Key Features:
- High Efficiency: Achieves up to 21% module efficiency, maximizing energy output from limited roof space.
- Advanced Cell Technology: Utilizes M10 half-cut monocrystalline cells with 10 busbars and Passivated Emitter Rear Contact (PERC) technology for superior performance and reduced power loss.
- Extreme Weather Resilience: Engineered to withstand up to 5,400 Pa of snow and wind loads, ensuring durability in harsh conditions.
- Sleek Aesthetics: Features an all-black design with a black anodized aluminum frame and black backsheet, enhancing the visual appeal of your installation.
- Comprehensive Warranty: Backed by a 25-year product and performance warranty, guaranteeing long-term reliability and peace of mind.
The MSE410HT0B is designed with advanced technologies to optimize energy production. The PERC technology incorporates an additional reflective layer, allowing the panel to absorb more sunlight and generate higher power output. The half-cut cell design reduces resistive losses and enhances shade tolerance, ensuring consistent performance even in less-than-ideal conditions.
Manufactured in San Antonio, Texas, Mission Solar Energy adheres to stringent quality control measures, including multiple quality checks throughout the production process. This commitment to excellence ensures that each panel not only meets but exceeds industry standards, providing you with a reliable and efficient energy solution.
The panel's robust construction is designed to endure extreme weather conditions. With the capability to withstand significant snow and wind loads, as well as resistance to salt mist corrosion, the MSE410HT0B is suitable for various environments. Additionally, third-party hail tests have demonstrated its resilience against hailstones up to 55 mm in diameter traveling at 33.9 m/s.
Beyond its technical prowess, the MSE410HT0B boasts a sleek, all-black appearance that enhances the aesthetic of any installation. The uniform black cells, backsheet, and frame provide a modern and streamlined look, seamlessly integrating with your property's design.
Investing in the Mission Solar 410W 108 Half-Cell Mono Solar Panel means choosing a product that delivers high efficiency, durability, and visual appeal. Supported by a comprehensive 25-year warranty, this panel offers a dependable and long-lasting solution for your energy needs.
Key Specifications:
| Specification | Details |
|---|---|
| Rated Power Output | 410 W |
| Module Efficiency | 21% |
| Open Circuit Voltage (Voc) | 37.41 V |
| Short Circuit Current (Isc) | 13.90 A |
| Maximum Power Voltage (Vmp) | 31.38 V |
| Maximum Power Current (Imp) | 13.07 A |
| Maximum System Voltage | 1000 V DC |
| Dimensions (L x W x H) | 67.83 in x 44.68 in x 1.38 in (1723 x 1135 x 35 mm) |
| Weight | 42 lbs (19 kg) |
| Connector Type | MC4 from Staubli |
| Operating Temperature Range | -40°F to +185°F (-40°C to +85°C) |
| Front & Back Load Capacity | Up to 5,400 Pa |
| Cell Type | Monocrystalline, 108 half-cut cells |
| Frame Color | Black |
| Backsheet Color | Black |
