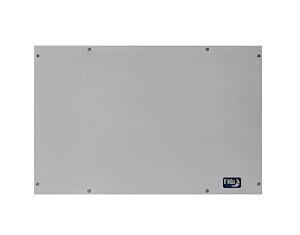

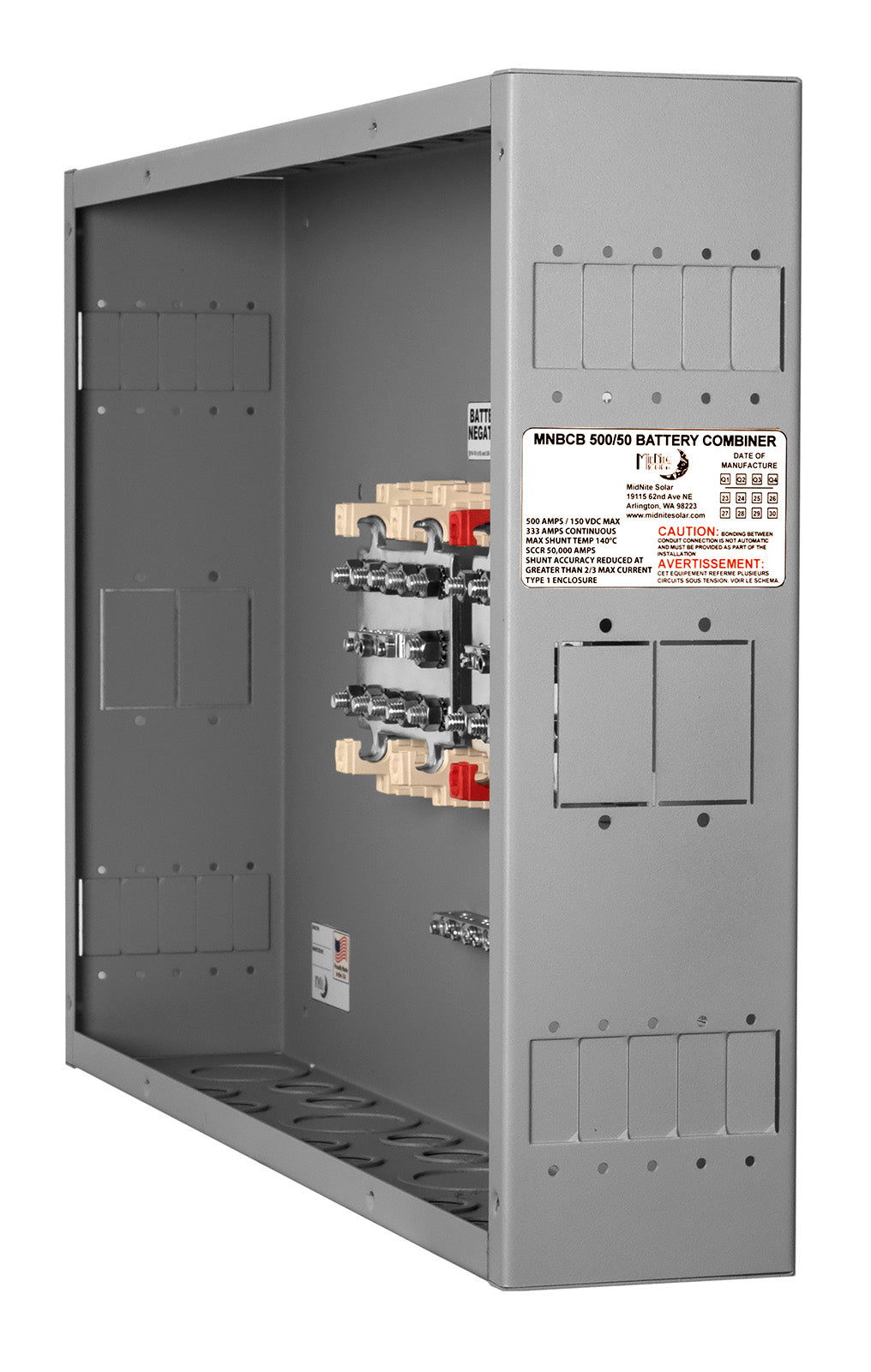

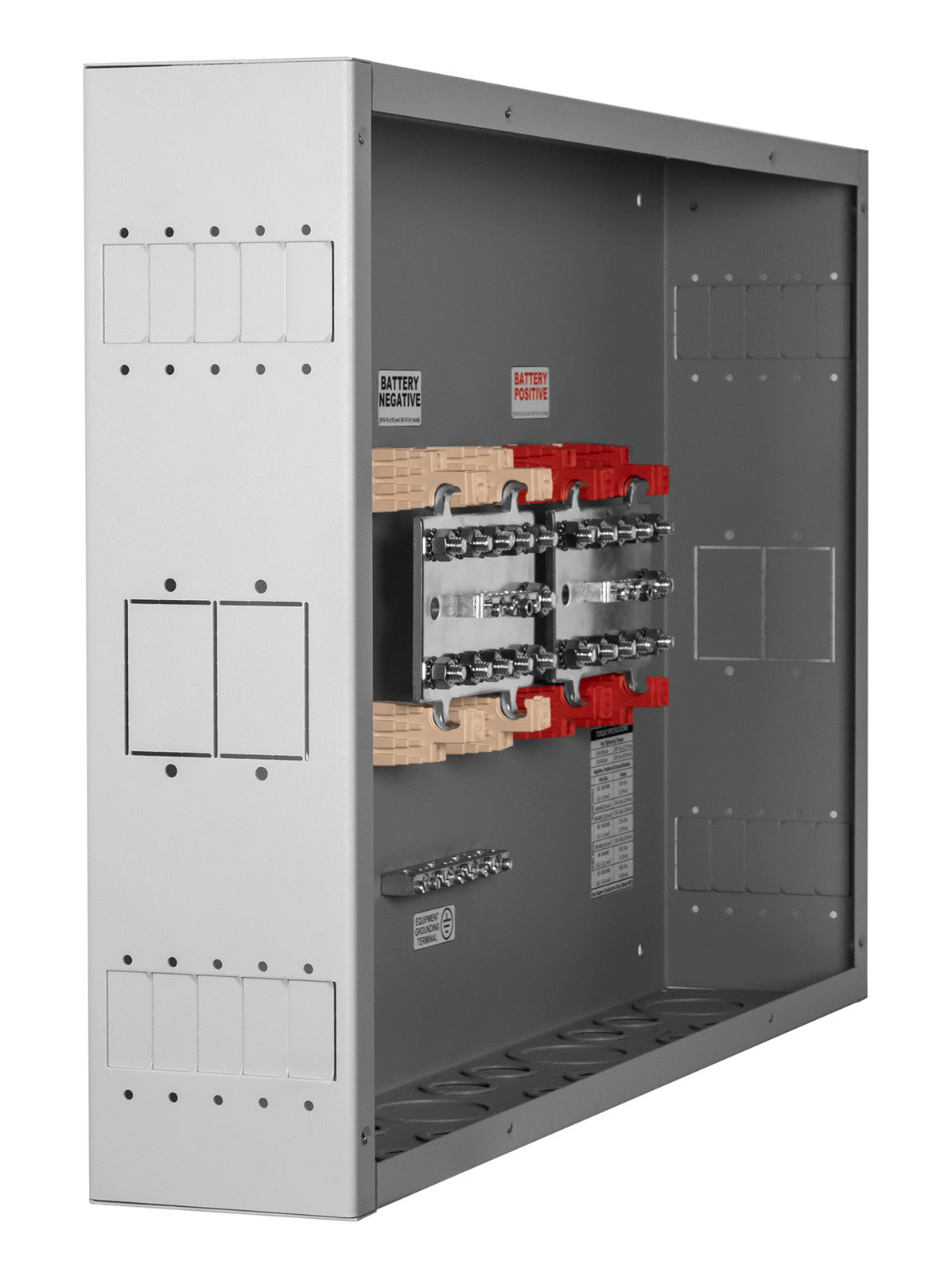

Mindnite MNBCB-500/50 Battery Combiner

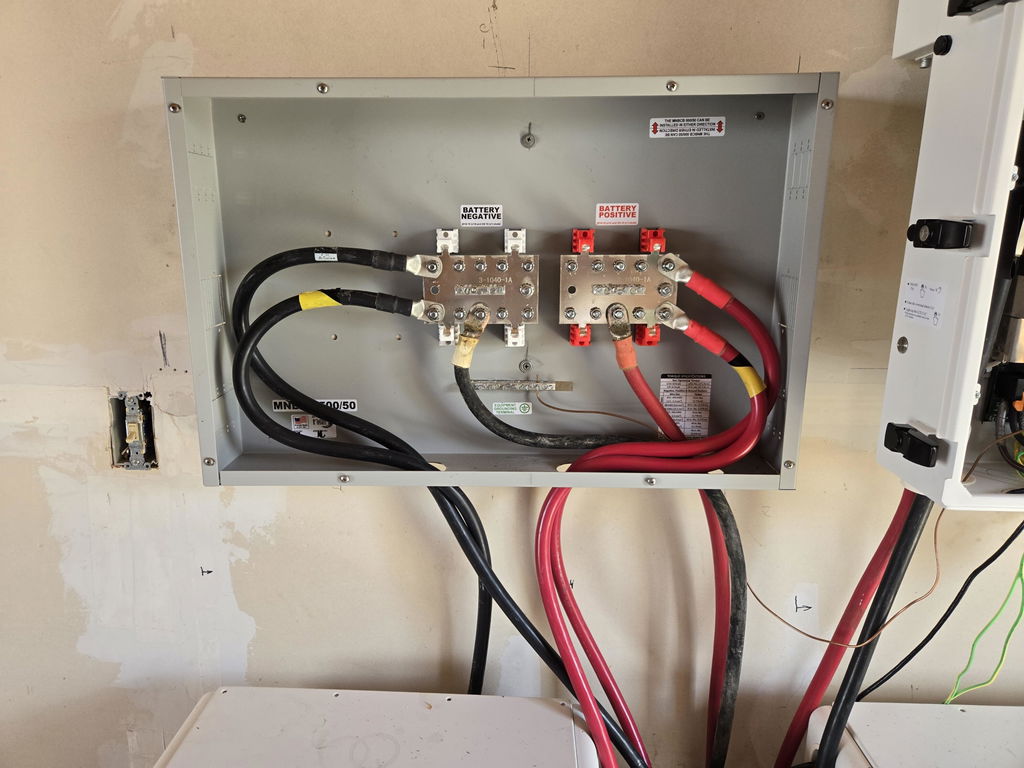

The MNBCB-500/50Battery Combiner can be used to combine circuits from multiple inverters or battery strings or both. There are spaces for fourlarge 175 A or 250 A breakers on both ends.
26 11/16” x 17 5/16” x 4 11/16”, and weighs 30 lbs.
26 11/16” x 17 5/16” x 4 11/16”, and weighs 30 lbs.
Specifications:
| Weight | 30.0 LB |
| Series | MNBCB |
| Manufacturer Part Number | MNBCB 500/50 |
| Description | Combiner for multiple inverters or battery strings w/ 500A 50 mv shunt |

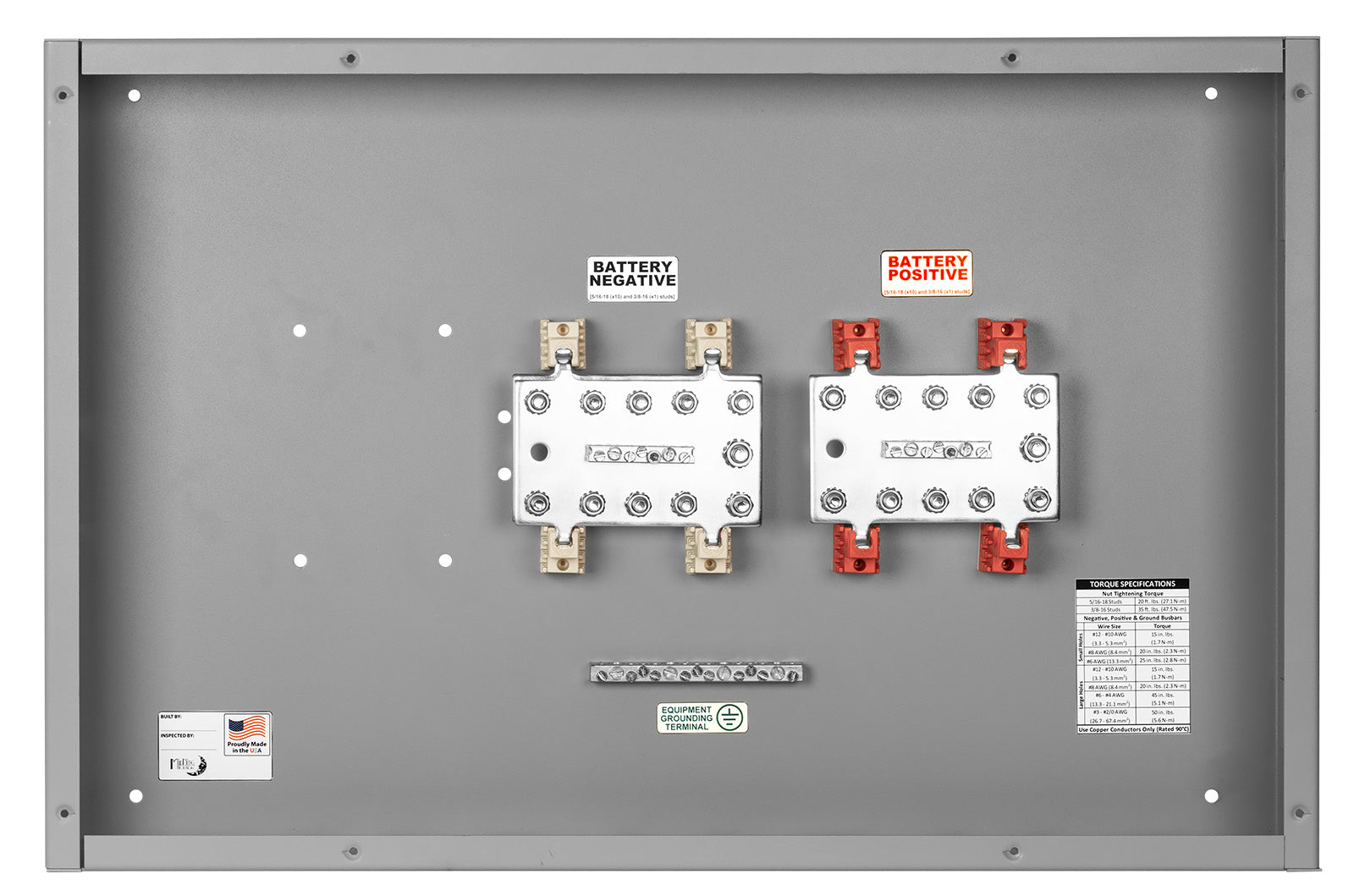

| Long Description | Includes 500A Positive and Negative bus bar with 3/8" studs. Cables can be double lugged and bus bar can be drilled for additional mounting locations. Includes a 500amp 50mv Shunt with 1/2 inch bolt for customer connection. Not for use with SMA! |
| NEMA Rating | NEMA 1 (indoor) |
| Number of Spaces | 12.0 each busbar |
| Bus Rating | 500.00 |
| Max Wire(main lug) | 4/0 AWG |
