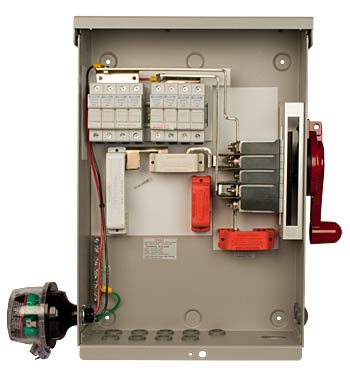

Midnite Solar MNPV8HV-Disco Nema 3R Combiner w/ Disconnect Switch

Midnite Solar IncSKU: 053-02993

Price:
Sale price$879.00

Description

Midnite Solar MNPV8HV-Disco Nema 3R Combiner w/ Disconnect Switch

MNPV8HV Disco 3R PV Disconnecting Combiner, 5 poles, 80 or 160 amp busbars depending on how they are configured. Switch is a 100 amp load break rated or 175 amps load break rated depending on configuration

NEW! MidNite Solar MNPV Combiners with disconnect switch

The MidNite Disco line of PV combiners with disconnects incorporates NEC 2011 requirements. The disconnect handle is bright red for visibility and can be locked in the off position. Several models can be configured for bi-polar or ungrounded inverters where both the positive and negative legs of the array need circuit protection (maximum output current is split also). Models are available for 150 VDC, 300 VDC, 600 VDC, or 1000 VDC arrays. All of the combiners are made from powder coated aluminum for corrosion and sunlight resistance for long life in harsh conditions. A clear see-through dead front is supplied with all disco combiners. Models are available with either NEMA 3R or NEMA 4X ratings. Many of these come with a shunt trip disconnect that enables the MNDiscoPSB to trip the disconnect remotely. An MNSPD-600 is included standard with many of these combiners. See the table below for options are that available or included.

Size: 18.5"L x 14"W x 4.6"D
Boxed: 24"L x 19"W x 6"D
Weight: 16 Lbs

* Convertible configuration (field configurable)
* Eight strings combined for up to 160 Amps single 230 Amp/600V single pole disconnect)
* 4 + 4 positive strings, separate PV+ and PV- for use with 2 inverters (2 pole 115 Amp disconnect)
* Four strings positive, four strings minus for use with non-isolated inverters (2 pole 115 Amp disconnect)
* Disconnect has built in shunt trip with positive feedback
* Birdhouse compatible
* Load Break Rated
* Optional PV connected power supply
* Optional AC connected power supply for redundancy
* Nema 3R aluminum enclosure (no rust, won’t turn to dust)
* 90o C connections
* MNSPD600 Lightning Arrestor included
* 1/2" strain reliefs and hole plugs included
* See thru deadfront & color coded busbar guards included
* Fuseholders included
* 15a/600v fuses included
* Meets NEC 2011

MidNite PV combiners without disconnect

Model

PV source circuit options

Output circuits

Maximum
output
wire size

MNPV combiner dimensions
L" x W" x H"
(inches)

Weight
(lbs)

Birdhouse
trip option
/MNSPD

Item
code

Max #
150 VDC
breakers

Max #
300 VDC
breakers

Max #
600 VDC
breakers

Max #
output
circuits

Max
current
output
circuits
LV/HV

MNPV3

3

--

2

1

60

#1/0

10.5 x 4.9 x 3.4

2

--

053-
03017

MNPV6

6

--

4

2

120-80¹

#1/0

12.7 x 7.9 x 3.4

4

--

053-
03018

MNPV6-
250

--

3

--

1

120

#1/0

12.7 x 7.9 x 3.4

4

--

053-
03081

MNPV12

12

--

10

2

200

#2/0

14.7 x 12.2 x 3.5

6

--

053-
03015

MNPV12-
250

--

6

--

2

168

#2/0

14.7 x 12.2 x 3.5

6

--

053-
03082

MNPV16

--

--

16

1

240

250mcm

20.7 x 16.2 x 3.5

12

--

053-
03016

MNPV16-
24

24

--

--

1

240

250mcm

20.7 x 16.2 x 3.5

12

--

053-
03087

MNPV16-
250

--

12

--

1

240

#2/0

20.7 x 16.2 x 3.5

12

--

053-
03083

MidNite PV combiners with disconnect

MNPV4HV Disco 3R Basic

--

--

4

1

80

#1/0

15.4 x 18.4 x 5

8

No

053-
02990

MNPV4HV Disco 3R Deluxe

--

--

4

1

80

#1/0

15.4 x 18.4 x 5

10

Opt/Yes

053-
02991

MNPV6 Disco

6

--

--

2

120

#1/0

12.7 x 7.9 x 7.5

6

No

053-
03000

MNPV6-250 Disco

--

3

--

1

120

#1/0

12.7 x 7.9 x 7.5

6

No

053-
03001

MNPV6HV
Disco 4X

--

--

6

1

125

#2/0

20.8 x 17.3 x 5.8

614

Opt/Yes

053-
02992

MNPV8HV
Disco 3R

--

--

8

2

160

#2/0

23.4 x 19.3 x 5.4

16

Opt/Yes

053-
02993

MNPV8HV
Disco 4X

--

--

8

2

160

#2/0

23.4 x 19.3 x 5.4

18

Opt/Yes

053-
02994

MNPV16HV
Disco 4X

--

--

16

2

230

350mcm

23.5 x 26 x 5.8

27

Opt/Yes

053-
02995

MNPV36 600
Disco 4X

--

--

36

2

330

2x-350 mcm

32.7 x 29.5 x 7

45

Opt/Yes

053-
02996

MNPV36 1000
Disco 4X

--

--

36

Bi-polar

100 dual

2x-350 mcm

32.7 x 29.5 x 7

46

Opt/Yes

053-
02997

MidNite PV combiners with Arc-fault disconnect

MNPV24HV
Disco 4X Arc Fault-SER

--

--

24

1
