Description

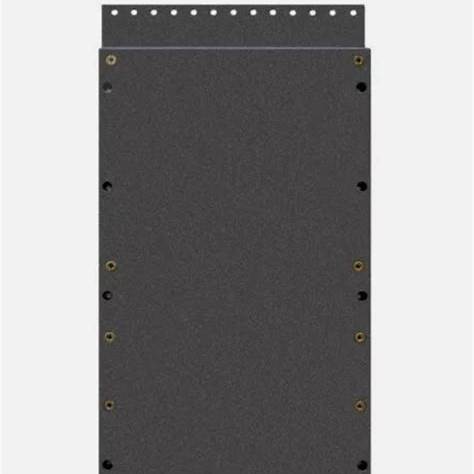

A factory backplate that makes mounting the Rosie inverter and the Rosie breaker box/E-Panel fast, square, and code-clean. The steel plate arrives powder-coated to match Rosie, with all standoff locations pre-tapped and a full set of mounting hardware in the box, so installers can hang, level, and bolt up both assemblies in minutes. Using the backplate also standardizes service clearances and keeps conduit entries aligned for tidy, repeatable installs—especially helpful on multi-unit walls. MidNite’s documentation shows the backplate used as the primary wall anchor before the E-Panel and inverter are hung, reducing lift effort and protecting the finish during alignment. When paired with the Rosie system, this is the simplest path to a professional-looking, rugged installation that’s easy to service later.
Technical Specifications
| Category | Specification |
|---|---|
| Model | MNROSIE-BACKPLATE |
| Purpose | Wall-mount backplate for Rosie inverter + Rosie breaker box/E-Panel |
| Finish | Powder-coated to match Rosie, factory color |
| Included hardware | (10) 1/4-20 × 3/4 in black-oxide screws with flat washers (for mounting inverter & E-Panel) |
| Dimensions (H × W × D) | 33.44 × 14.54 × 1.00 in |
| Approx. weight | ~12 lb (shipping weight commonly listed) |
| Mounting sequence (per manual) | Anchor backplate → hang E-Panel with four bolts → set two top bolts for Rosie → hang and secure inverter |
| Use case | Single- or multi-unit Rosie installs; keeps conduit and knockout layouts consistent |
