Description

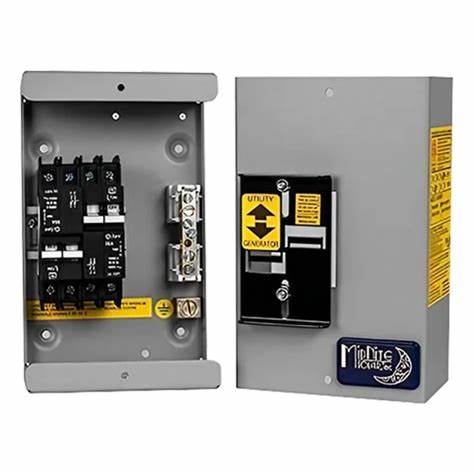

A rugged, field-proven manual transfer solution for small backup, hybrid, and renewable systems that need a clean, code-friendly way to select between two AC sources. The MNTRANSFER-60A mounts in MidNite’s compact “Big Baby” steel enclosure and uses two mechanically interlocked 2-pole breakers to switch both hot legs of a 120/240 V split-phase service—preventing backfeed and making source selection unambiguous.
A front interlock plate with clear UTILITY ↔ GENERATOR/INVERTER labeling simplifies operation, while the included neutral bus and hefty ground terminal keep terminations tidy. With #6 AWG max conductors, ETL listing (US/Canada), and a 5-year warranty, it’s ideal for transferring a critical-loads sub-panel, selecting an inverter’s AC input between grid and generator, or providing a safe, visible means of isolation during service.
The indoor Type 1 enclosure, knockout pattern, and straightforward layout make installation fast and inspection-friendly.
Technical Specifications
| Category | Specification |
|---|---|
| Model | MNTRANSFER-60A |
| Function | Manual AC transfer, two sources → one load |
| Poles / phases | 2-pole (switches both hot legs), 120/240 VAC split-phase |
| Rated current | 60 A per pole |
| Voltage / freq | 120/240 VAC, 50/60 Hz |
| Conductor size | Up to #6 AWG Cu |
| Included busses | Neutral busbar; ground box terminal (accepts large ground conductors) |
| Enclosure | Powder-coated steel, Type 1 (indoor); “Big Baby” form factor |
| Dimensions / weight | ~9 × 6 × 4 in overall; ≈ 4 lb |
| Listings / warranty | ETL (US & Canada); 5-year warranty |
| Typical uses | Grid ↔ Generator, Grid ↔ Inverter, or Generator ↔ Inverter selection for a backed-up sub-panel or inverter AC-in |
