Description

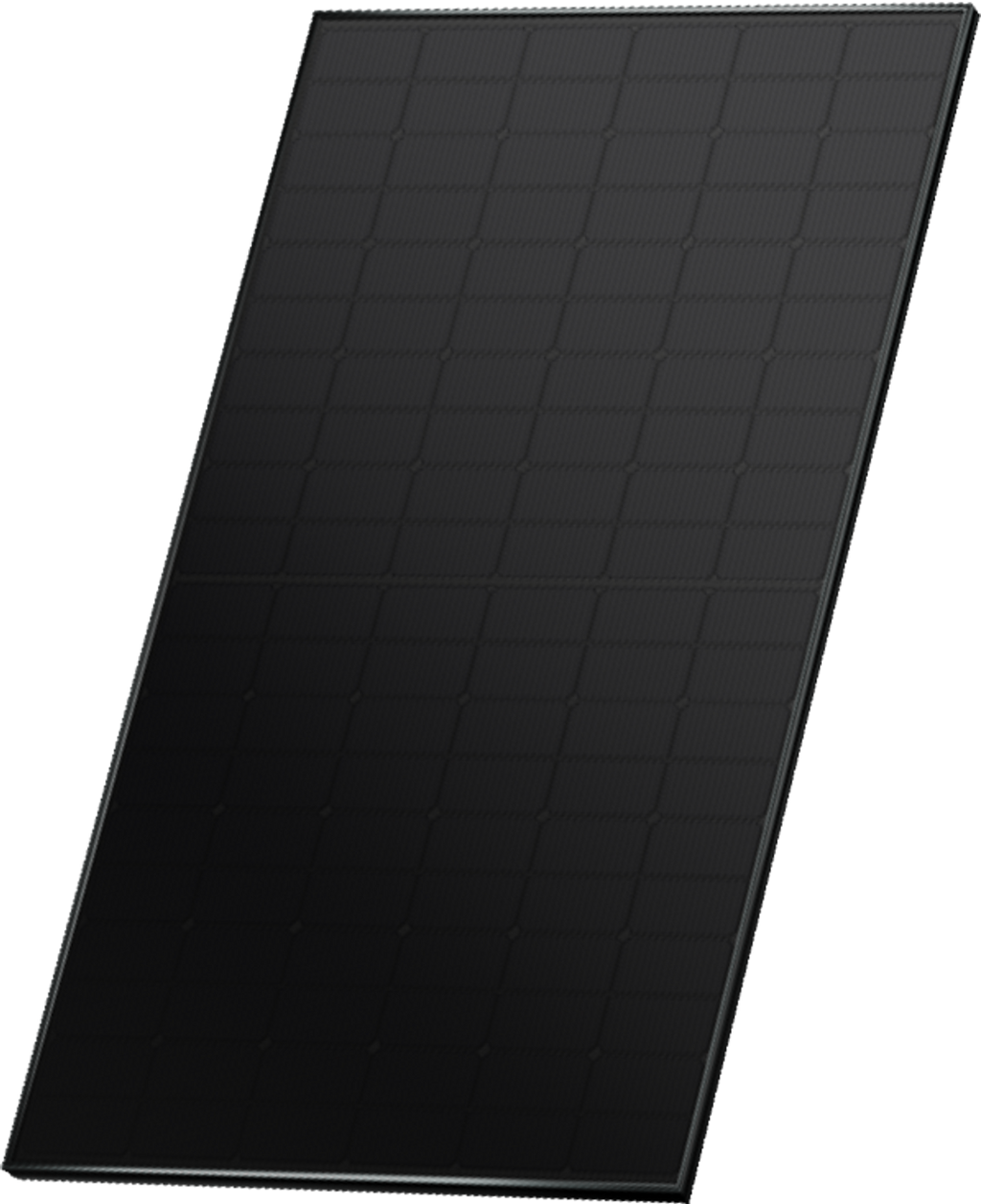

The Meyer Burger 385W 120 Half-Cell Heterojunction Solar Panel (MB_B120AyB_385) represents a significant advancement in solar technology, offering superior efficiency, durability, and aesthetic appeal. Designed in Switzerland and manufactured in Germany, this panel exemplifies European engineering excellence and sustainable manufacturing practices.
Key Features:
- High Efficiency: Achieves up to 20.9% efficiency, delivering more energy output per square foot.
- Durable Design: Utilizes patented SmartWire Connection Technology (SWCT®) for outstanding cell stability and high breakage resistance.
- Sustainable Production: Manufactured without lead and PFAS, using 100% renewable energy, ensuring an eco-friendly footprint.
- Elegant Aesthetics: Features an all-black design with a smooth surface, enhancing the visual appeal of any installation.
- Comprehensive Warranty: Offers a 25-year product and performance warranty, guaranteeing long-term reliability.
The Meyer Burger 385W solar panel is engineered for maximum energy yield, even under challenging conditions such as cloudy or hot days. Its heterojunction high-performance cells, combined with SWCT®, ensure superior performance and durability.
Beyond performance, this panel is a testament to sustainable manufacturing. Produced without harmful substances and utilizing renewable energy, it aligns with environmentally conscious values.
Aesthetically, the panel's elegant Swiss design and all-black appearance make it suitable for various architectural styles, adding a touch of sophistication to any roof.
Installation is made easy with its compact format, allowing for convenient handling and maximum layout flexibility. This ensures optimal system performance tailored to your specific needs.
Key Specifications:
| Specification | Details |
|---|---|
| Rated Power Output (Pmax) | 385 W |
| Module Efficiency | Up to 20.9% |
| Dimensions (L x W x H) | 1767 mm x 1041 mm x 35 mm |
| Weight | 19.7 kg |
| Cell Type | Monocrystalline n-Si, HJT with SWCT® |
| Number of Cells | 120 half-cells |
| Front Cover | 3.2 mm tempered solar glass with anti-reflective surface |
| Back Cover | Black water-barrier backsheet |
| Frame | Black anodized aluminum |
| Junction Boxes | 3 diodes, IP68 rated in accordance with IEC 62790 |
| Cable | PV cable 4 mm², 1.2 m length in accordance with EN 50618 |
| Connectors | MC4; MC4-Evo2; UKT Energy PV-CO02; TE Connectivity PV4-S1 |
| Maximum System Voltage | 1000 V DC |
| Operating Temperature Range | -40°C to +85°C |
| Product Warranty | 25 years |
| Performance Warranty | 25 years (98% in the first year, 0.25% annual degradation thereafter) |
