Description

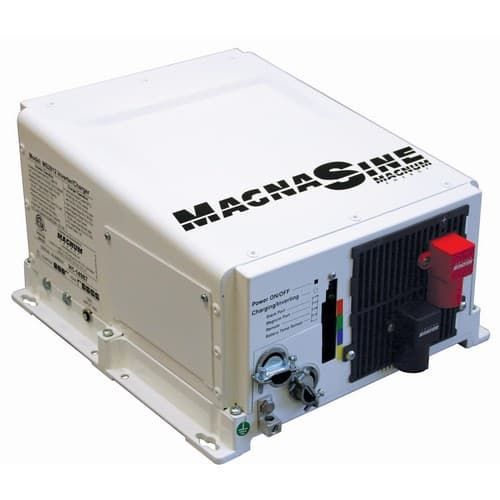

Magnum Energy MS Series 4,000W 48V Pure Sine Wave Inverter/Charger — built for those who demand reliable, utility-grade power in the most challenging off-grid, mobile, and backup environments.
Key Features
- Pure Sine Wave Output: Delivers clean, stable 120VAC power at 60Hz, safe for sensitive electronics and demanding loads.
- Power Factor Corrected (PFC) Charger: Draws 25–30% less AC current from a generator compared to standard chargers, maximizing efficiency.
- Battery Profile Presets: Supports Lithium Iron Phosphate (LFP), Gel, Flooded, AGM1, and AGM2 battery profiles via compatible remote controls.
- Versatile Mounting Options: Installs on a shelf, bulkhead, or wall with 360° DC connection terminals for flexible, simplified wiring.
- Multi-Stage Charging: Five-stage charging system includes Bulk, Absorb, Float, Equalize, and Battery Saver for optimized battery health.
The MS4048 is engineered for serious power users who need proven performance across backup, off-grid, RV, marine, and mobile applications. With up to 4,000 watts of continuous output and a peak efficiency of 94%, this inverter/charger handles heavy loads without compromise.
Durability is built into every layer of the MS4048. Conformal-coated PCBs, powder-coated chassis, and stainless steel fasteners deliver corrosion resistance in the harshest environments. Dual 92mm variable-speed brushless DC fans provide cooling from 0 to 120 CFM as demands rise.
System integration is seamless with an RS485 communication port, remote port compatibility, and support for accessories including the MagWeb, ME-RC, ME-ARC, and ME-MR remotes. ETL Listed to UL/cUL 458, UL 1741, and CSA C22.2 #107.1-01, the MS4048 meets the stringent standards required for both renewable energy and emergency vehicle installations.
Technical Specifications
| Specification | MS4048 / MS4048-20B |
|---|---|
| Continuous Output Power | 4,000 W |
| Battery Voltage | 48V (36–67.6 VDC) |
| AC Output Voltage | 120 VAC ± 5% |
| Output Frequency | 60 Hz ± 0.1 Hz |
| Total Harmonic Distortion (THD) | < 5% |
| Peak Inverter Efficiency | 94% |
| 5 Sec Surge Power | 8,500 W |
| 30 Min Surge Power | 4,750 W |
| Max Continuous Input Current | 133 ADC |
| AC Relay Transfer Time | 16 msecs (minimum) |
| Charger Continuous Output (25°C) | 60 ADC |
| Charger Efficiency | 85% |
| Power Factor | > 0.95 |
| Input Current (Rated Charger Output) | 30 AAC |
| Transfer Relay Capability | 60 ACC |
| Internal Cooling | Dual 92mm Brushless DC Fans (0–120 CFM) |
| Operating Temperature | -20°C to +60°C (-4°F to 140°F) |
| Operating Humidity | 0 to 95% RH Non-Condensing |
| Max Operating Altitude | 15,000 ft (4,570 m) |
| Dimensions (L x W x H) | 13.75" x 12.65" x 8.0" |
| Unit Weight | 55 lbs |
| Shipping Weight | 62 lbs |
| Warranty | 3 Years Parts and Labor |
| Certifications | ETL Listed UL/cUL 458, UL 1741, CSA C22.2 #107.1-01, KKK-A-1822E |
