Description

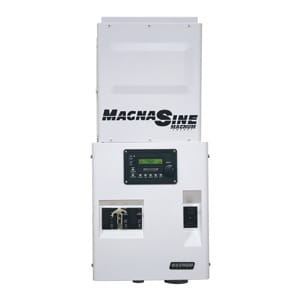

Magnum Energy MMP175-60S Mini Magnum Panel
The MMP – Mini Magnum Panel is an inclusive, easy-to-install panel designed to work with one Magnum MS-AE, MS, RD or other non-Magnum inverter/charger. The MMP features a small footprint and comes prewired for fast installation. Circuit breakers and the optional remote control mount on the front of the cabinet. Dimensions are 12.5" wide x 18" tall x 8" deep. They are ETL listed to UL 1741 and CSA C22.2 107-01. Each MMP includes One DC breaker – 175A or 250A, One AC bypass breaker – 30A dual pole or 60A single pole, One AC input breaker – 30A dual pole or 60A single pole, a 500A/50mv shunt, DIN rail provided for up to eight DC mini breakers. Panels are available for inverters with 120 VAC output and 120/240 VAC output.system.
Magnum model |
DC Main Breaker |
AC Output Breaker |
Use with |
Item code |
MMP250-30D |
250 |
30A @120/240VAC |
MS4024-AE |
030-02380 |
MMP250-60S |
250 |
60A @ 120VAC |
MS4024, MS2812, MS2012, RD3924, RD2212 and all ME models |
030-02381 |
MMP175-30D |
175 |
30A @120/240VAC |
MS4448-AE |
030-02382 |
MMP175-60S |
175 |
60A @ 120VAC |
RD2824, RD1824 |
030-02383 |
