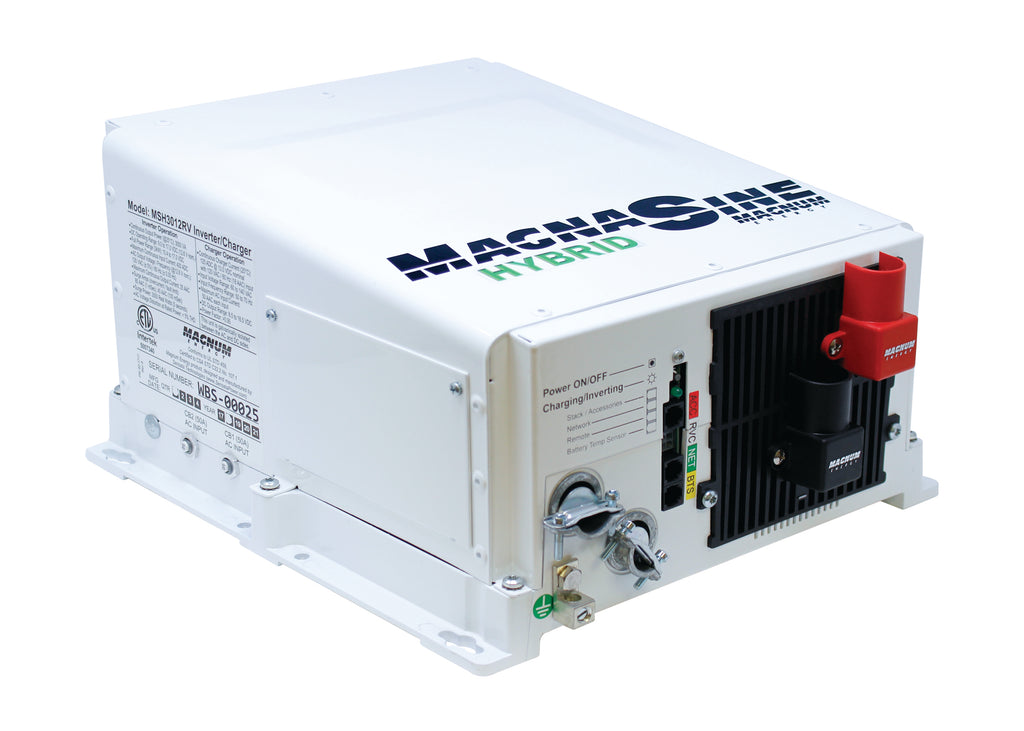

Magnum 3000W 12V Inverter/125Amp PFC Charger MSH3012RV-L
Introducing the MS Series Inverter/Charger from Magnum Energy -- A new generation inverter designed specifically for rugged recreational vehicle use. The ME Series is powerful, easy-to-use, and best of all, cost effective. The MS series is ETL Listed to the stringent requirements of UL/cUL 458, ensuring that the inverter is safe and reliable.
Install the MS series in four easy steps: simply connect the inverter's output to your distribution circuits or electrical panel, connect your shore power cable (AC) to the inverter's easy-to-reach terminal block, connect the batteries, and switch on the power.
| Output Power | 3,000W |
|---|---|
| Peak Watts | 3,500W |
| Warranty | Three years parts and labor |
| Output Voltage | 120 VAC |
| Output Current | 25.0 amps |
| Output Waveform | Pure Sine |
| Output Frequency | 60 Hz |
| Input Voltage | 12 |
| Operating Temp | -20° C to +60° C (-4° F to 140° F) |
| Efficiency | 88.0% |
| Weight | 55 lb (24.9 kg) |
| Dimensions | 13.75” x 12.65” x 8.0” (34.9 cm x 32.1 cm x 20.3 cm) |
| UL Certified | Yes |
| Phase | Single |
| Topology | Low Frequency |
| Input Battery Voltage Range | 9.0-17.0 |
