Description

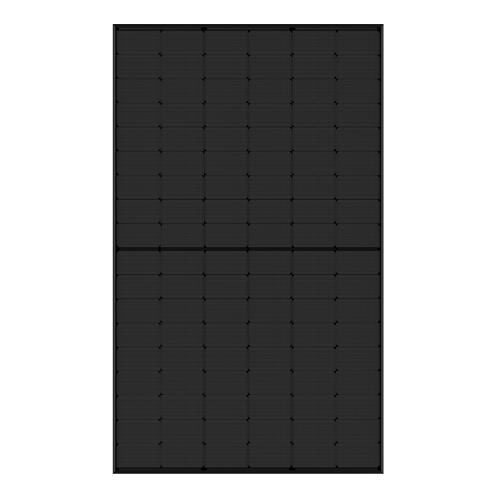

Introducing the Jinko Solar JKM430N-54HL4-B 430W Black-on-Black 108 Half-Cell Mono Solar Panel, a top-tier solution for residential and commercial solar installations. This panel combines cutting-edge N-Type TOPCon technology with sleek aesthetics, delivering high efficiency and durability.
Key Features
-
High Efficiency: Achieves a remarkable 22.02% module efficiency, maximizing energy production even in limited spaces.
-
N-Type TOPCon Technology: Offers superior performance with enhanced reliability and lower degradation rates.
-
Robust Durability: Certified to withstand wind loads up to 2400 Pa and snow loads up to 5400 Pa, ensuring resilience in extreme weather conditions.
-
Extended Warranty: Comes with a 25-year product warranty and a 30-year linear power warranty, guaranteeing long-term performance.Sleek Aesthetics: Features an all-black design with a black frame and backsheet, providing a modern and uniform appearance.
Product Overview
The Jinko JKM430N-54HL4-B panel is engineered for high performance and longevity. Its N-Type TOPCon cells offer better light trapping and current collection, resulting in higher power output and improved reliability. The panel's robust construction ensures it can endure harsh environmental conditions, making it a reliable choice for various installations.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | JKM430N-54HL4-B |
| Rated Power (Pmax) | 430 W |
| Module Efficiency | 22.02% |
| Cell Type | N-Type Monocrystalline TOPCon |
| Number of Cells | 108 (6x18) Half-Cells |
| Open Circuit Voltage (Voc) | 39.16 V |
| Short Circuit Current (Isc) | 13.65 A |
| Max Power Voltage (Vmp) | 32.58 V |
| Max Power Current (Imp) | 13.20 A |
| Max System Voltage | 1000 V DC |
| Series Fuse Rating | 25 A |
| Dimensions (L x W x H) | 1722 x 1134 x 35 mm |
| Weight | 22 kg (48.5 lbs) |
| Front Glass | 3.2 mm Tempered Glass with AR Coating |
| Frame | Anodized Aluminum Alloy |
| Connector Type | Staubli MC4 |
| Output Cables | 12 AWG, 1400 mm Length |
| Operating Temperature | -40°C to +85°C |
| Power Tolerance | 0 ~ +3% |
| Temperature Coefficient (Pmax) | -0.29%/°C |
| Temperature Coefficient (Voc) | -0.25%/°C |
| Temperature Coefficient (Isc) | +0.045%/°C |
| Fire Rating | Type 1 |
| Certifications | IEC 61215, IEC 61730, UL 61730, ISO 9001, ISO 14001, ISO 45001 |
