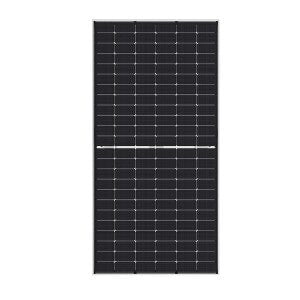

Jinko, 580W Bifacial White Back Sheet 144 Half Cell

Jinko

Price:
Sale price$240.00

Description

The Jinko Solar Tiger Neo 580W Bifacial Panel is a cutting-edge solution engineered for high-efficiency energy generation in utility-scale and commercial solar projects. Featuring advanced N-type TOPCon cell technology and a bifacial design, this panel is built to deliver long-lasting performance, higher yields, and enhanced durability under a wide range of environmental conditions.

Key Features

  • High Power Output

    Generates up to 580W of power with 22.45% module efficiency, maximizing power density per square meter.

  • Bifacial Energy Gain

    Dual-sided power generation captures reflected light from surfaces like sand or snow, boosting total output by up to 25%.

  • N-Type TOPCon Cell Technology

    Provides lower degradation, better low-light performance, and improved temperature coefficients compared to conventional P-type modules.

  • Durable Dual-Glass Construction

    Features 2.0 mm heat-strengthened glass on both sides with an anodized aluminum alloy frame, certified for extreme weather including 5400 Pa snow loads and 2400 Pa wind loads.

  • Extended Warranty

    Backed by a 12-year product warranty and a 30-year linear power output warranty for long-term system reliability.

Product Overview

The Jinko 580W Bifacial Panel is designed using 144 half-cut N-type monocrystalline cells. This configuration reduces internal resistive losses and increases energy production, even under partially shaded conditions. With its bifacial design, the panel captures additional sunlight on the back side, significantly improving energy harvest in high-reflectivity environments.

This panel is built with premium dual-glass and a corrosion-resistant frame, making it ideal for harsh climates. Its maximum system voltage of 1500V DC allows for longer strings and greater design flexibility. The module is compatible with all mainstream inverters and tracking systems, making it a highly adaptable option for solar developers.

Technical Specifications

Specification Details
Model Number JKM580N-72HL4-BDV
Rated Power (Pmax) 580W
Module Efficiency 22.45%
Cell Type N-Type Monocrystalline, 144 Half Cells
Dimensions (L × W × H) 2278 × 1134 × 30 mm
Weight 32 kg
Front/Back Glass 2.0 mm Heat-Strengthened Dual Glass
Frame Anodized Aluminum Alloy
Junction Box IP68 Rated
Operating Temperature -40°C to +85°C
Maximum System Voltage 1500V DC
Maximum Series Fuse Rating 30A
Power Tolerance 0 ~ +3%
Temperature Coefficient (Pmax) -0.29%/°C
Bifacial Gain Up to 25% additional power yield
Warranty 12-Year Product, 30-Year Linear Output
