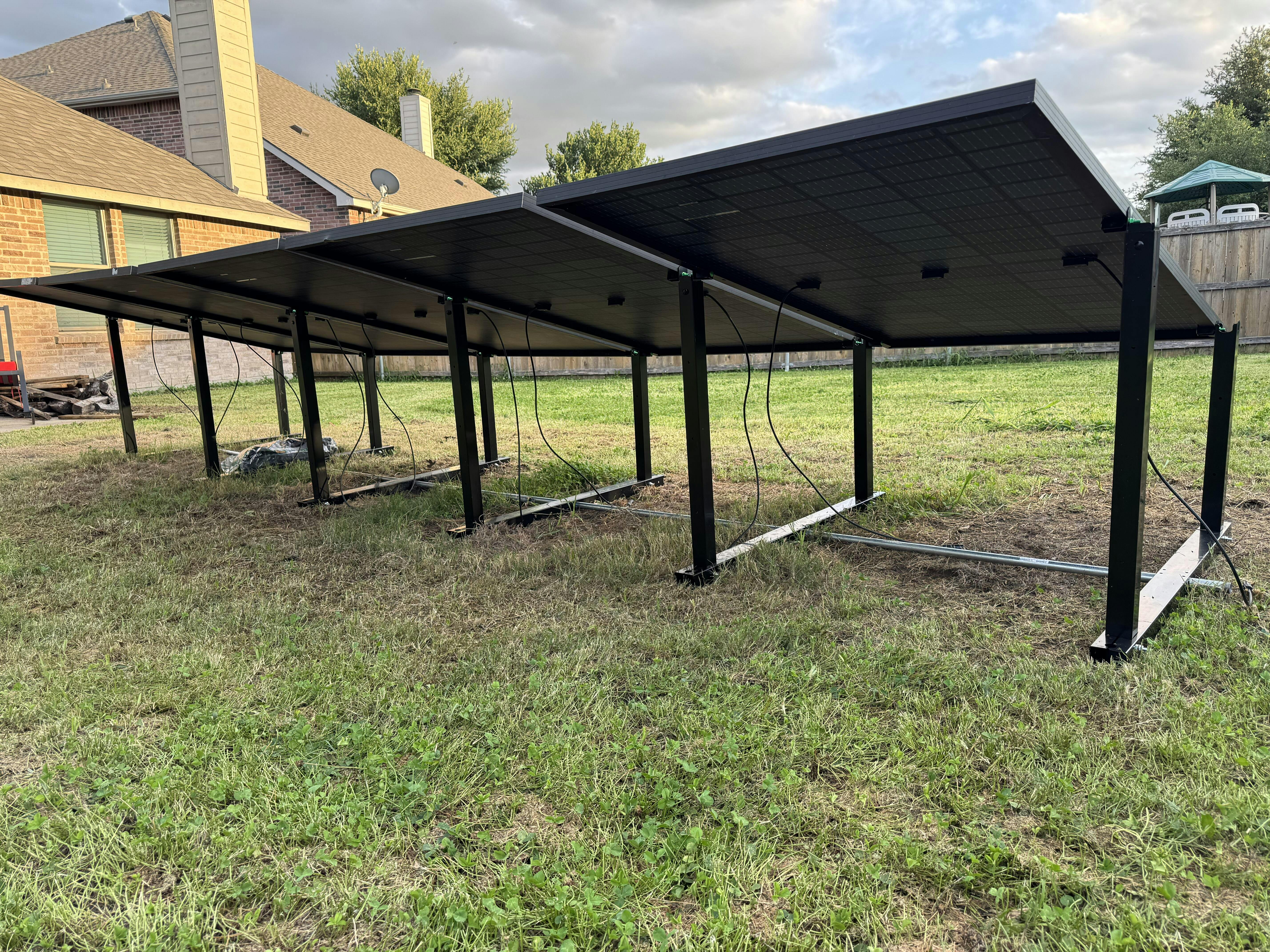

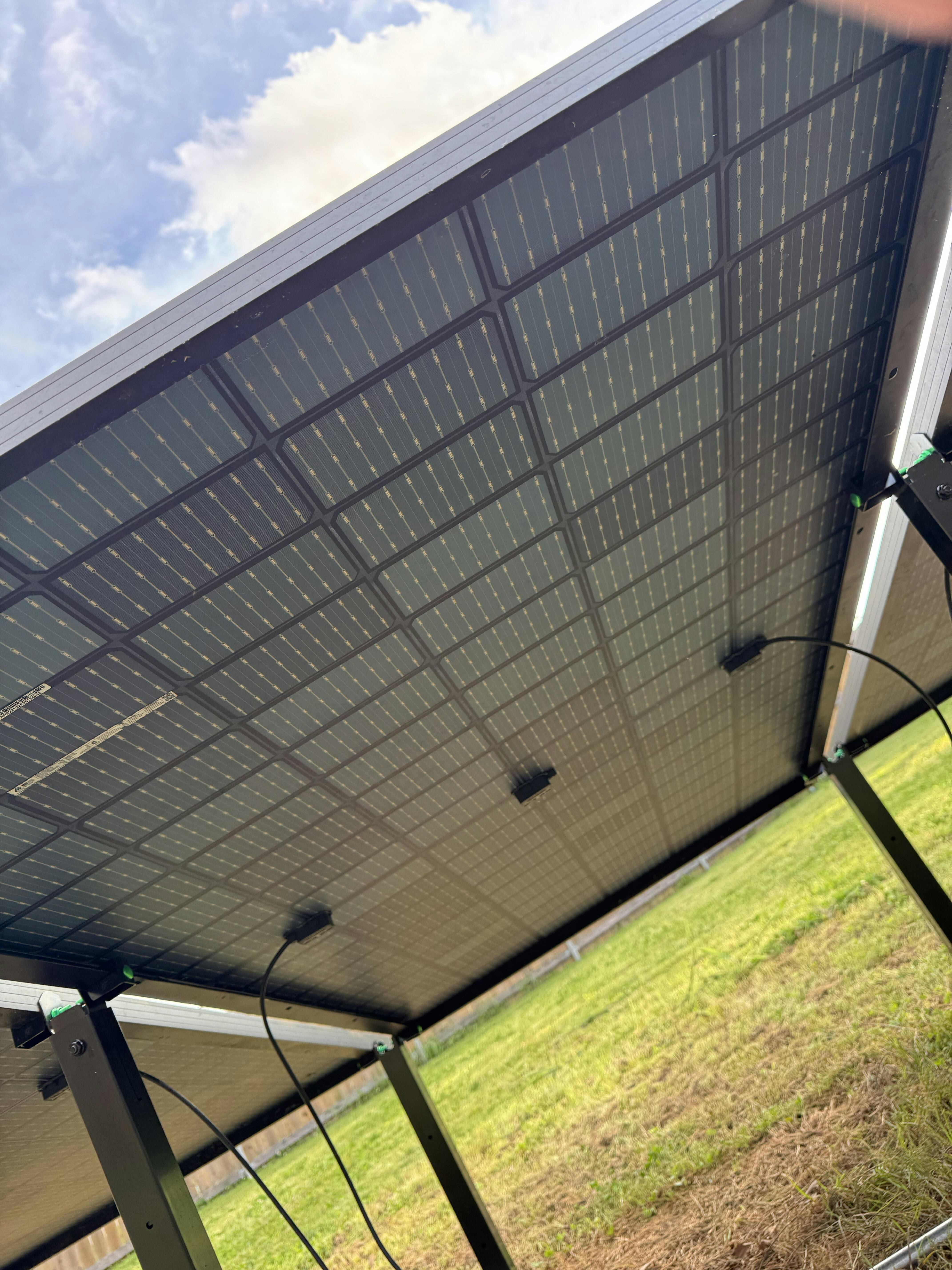

High-Durability Fixed-Adjustable Ground Mount for Any Solar Module Size

The IR-40FSAB BallastRack™ is a premium fixed-adjustable solar racking system built for maximum flexibility, rugged strength, and ultra-fast installation. Designed to accommodate any size solar panel—including the latest 700W–800W modules—this universal racking frame features adjustable tilt angles from 15° to 40°, enhanced snow-shedding clearance, and compatibility with multiple mounting methods.

Constructed from black zinc-plated high-strength steel, the IR-40FSAB offers extreme corrosion resistance and field-tested durability in all climates. Its innovative design allows rapid assembly and modular scalability—ideal for both small residential and large commercial ground-mount solar projects.

Quantity required:  total number of panels + number of rows of panels

For example:

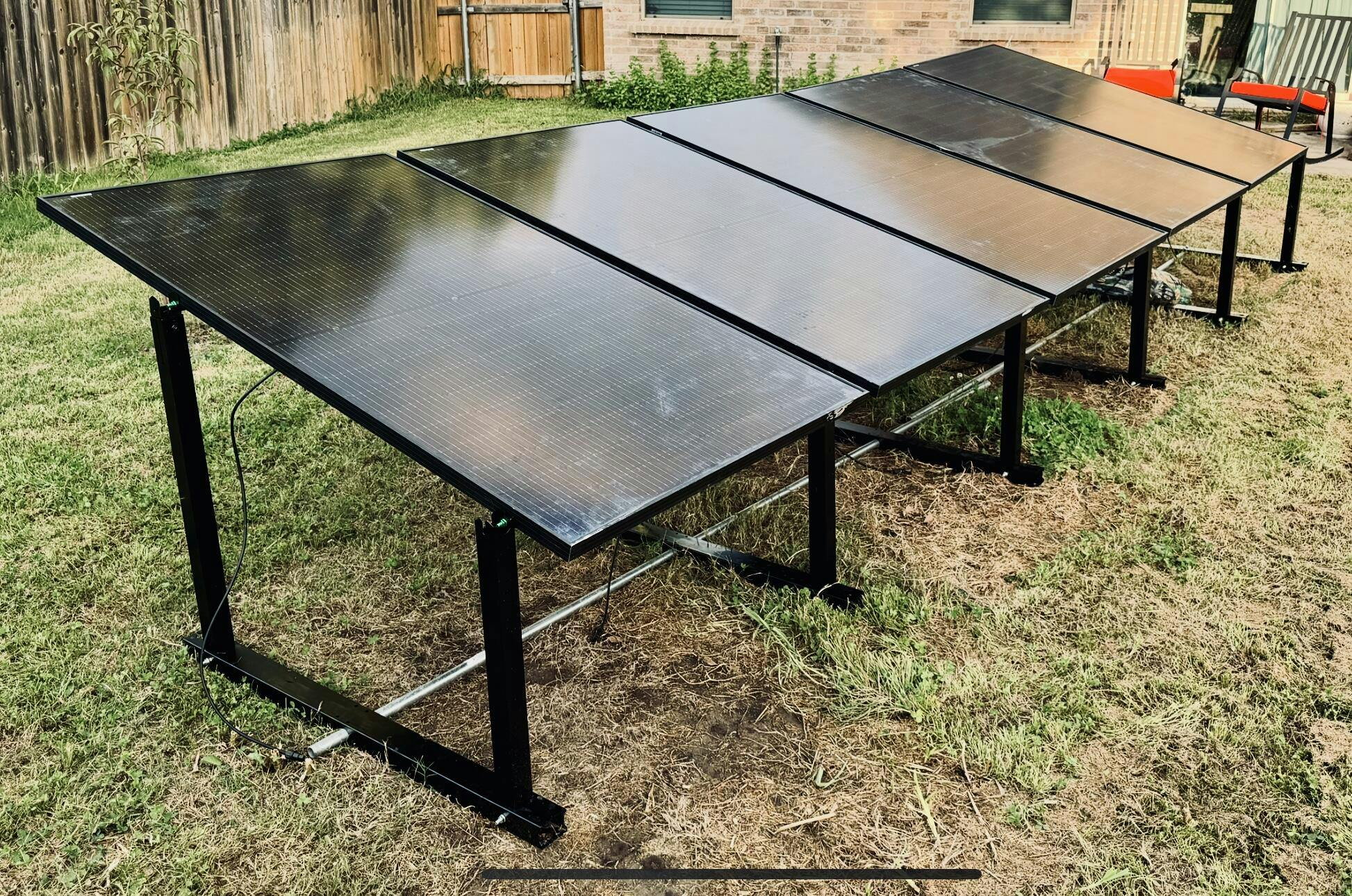

• 1x row of 4x panels would be:  4 panels + 1 row = 5 mounts
• 3x rows of 7x panels would be: 7 panels x 3 rows + 3 rows = 24 mounts

Key Features

• Adjustable Tilt Range: Set your preferred fixed angle from 15° to 40°, in 2.5° increments, to optimize solar harvest by geography or season.
• Universal Panel Compatibility: Mounts any size solar module, including large-format bifacial and high-wattage panels up to 800W.
• Included Mounting Hardware Kit: Comes complete with IR-F2 flange clamps, bonding brackets, carriage bolts, serrated nuts, and thread-cutting bolts for a complete install.
• Fast Assembly: Toolless frame setup in under 2 minutes per rack saves time and labor in the field.
• Multiple Mounting Options: Supports ballast base, AnchorSpike™, EarthBallast™, and anchor bolt configurations for any terrain or project scope.

Product Overview

Engineered for versatility, the IR-40FSAB is a universal racking solution that combines adjustability, durability, and rapid deployment. The integrated 8" extra clearance makes it ideal for snowy climates or environments requiring airflow below panels. With tilt adjustability built into the design, you don’t need extra parts or accessories to customize the angle—a simple pin-lock design allows angle shifts during install.

This racking system also includes a complete set of premium mounting hardware to simplify procurement and logistics.

Included Hardware Kit

• (4) IR-F2 Flange Clamps
• Bonding Brackets
• (4) M8-1.25 x 90mm Carriage Bolts
• (4) M8-1.25 Serrated Nuts
• (4) M8-1.25 x 16mm Thread-Cutting Bolts

Technical Specifications

Specification	Details
Model Number	IR-40FSAB
Material	Black zinc-plated high-strength steel
Tilt Angle Range	Adjustable: 15° to 40°, in 2.5° increments
Compatible Panel Sizes	Universal – Supports modules up to 800W
Extra Ground Clearance	8 inches more than IR-30 (ideal for snow and airflow)
Assembly Time	Less than 2 minutes per frame
Mounting Methods	Base ballast, IR AnchorSpike™, EarthBallast™, concrete anchor bolt
Wind Load Rating	Up to 200 mph (with proper anchoring)
Snow Load Rating	Up to 100 psf (region-dependent)
Compliance	UL 2703 bonding & mechanical standards
Hardware Kit Included	Yes – Flange clamps, bolts, nuts, bonding brackets
Finish	Corrosion-resistant black zinc coating
Use Case	Ground mount – residential, commercial, off-grid, and hybrid systems
